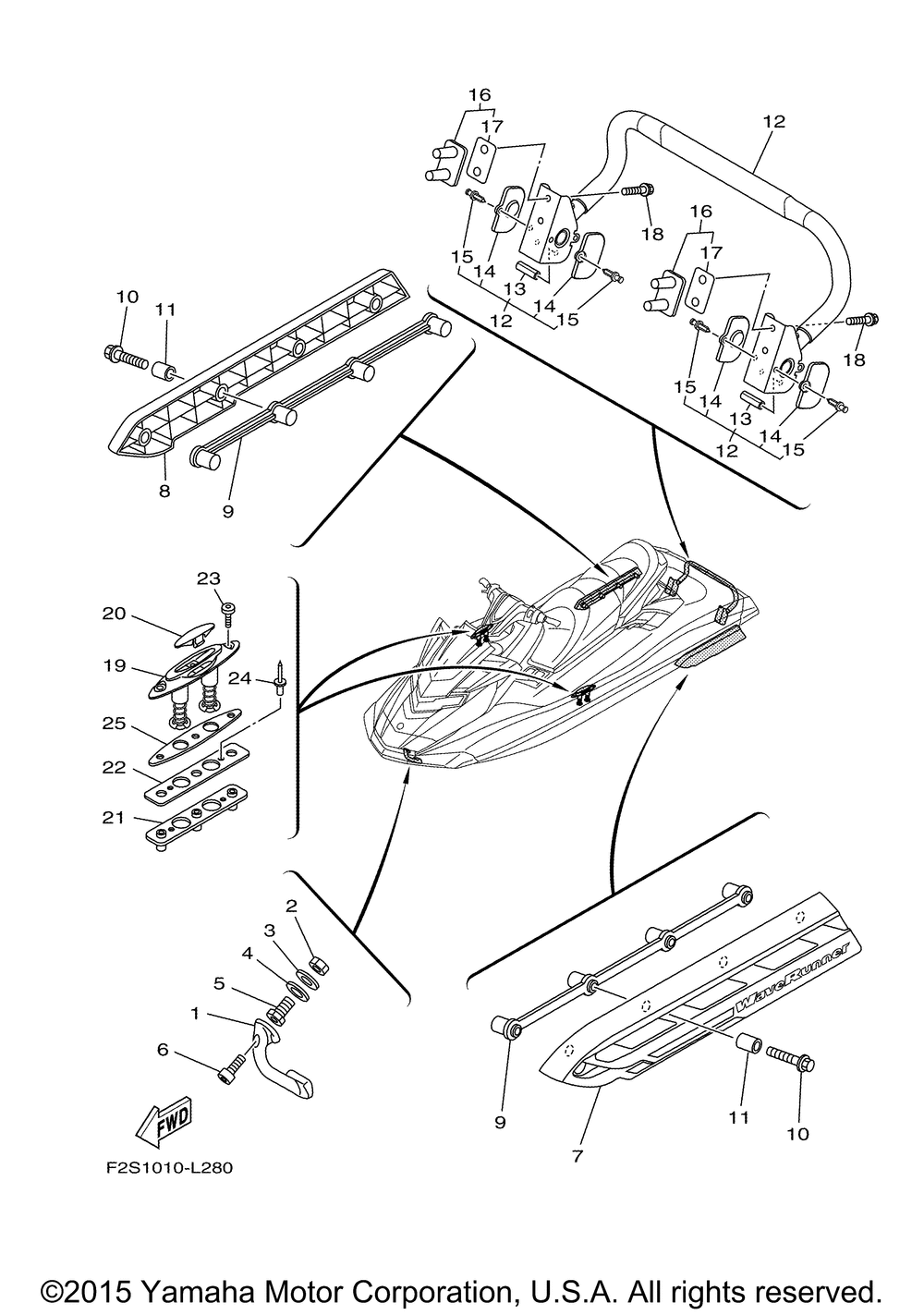

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOWEYE 1 | 1 | |
| 2 | NUTHEX(COARSE) (COARS) | 2 | |
| 3 | WASHER | 2 | |
| 4 | WASHER | 2 | |
| 5 | NUT (BOLT/NUT) (BOLT/NUT) | 2 | |
| 6 | BOLT HEXAGON SOCKET | 2 | |
| 7 | STABILIZER LH | 1 | |
| 8 | STABILIZER RH | 1 | |
| 9 | BRACKETSTABILIZER | 2 | |
| 10 | BOLTWASHER BASED | 8 | |
| 11 | SPACER | 8 | |
| 12 | LADDER STEP ASSY | 1 | |
| 13 | SLEEVE 1 | 2 | |
| 14 | INNER COVER SIDE 1 | 4 | |
| 15 | PIN | 4 | |
| 16 | BRACKET LADDER LH | 2 | |
| 17 | PACKING BRKT. 1 | 1 | |
| 19 | CLEAT ASSY. | 2 | |
| 20 | COVER | 2 | |
| 21 | BRACKET | 2 | |
| 22 | PACKING | 2 | |
| 23 | BOLT | 6 | |
| 24 | RIVET BLIND | 4 | |
| 25 | PACKING | 2 |
