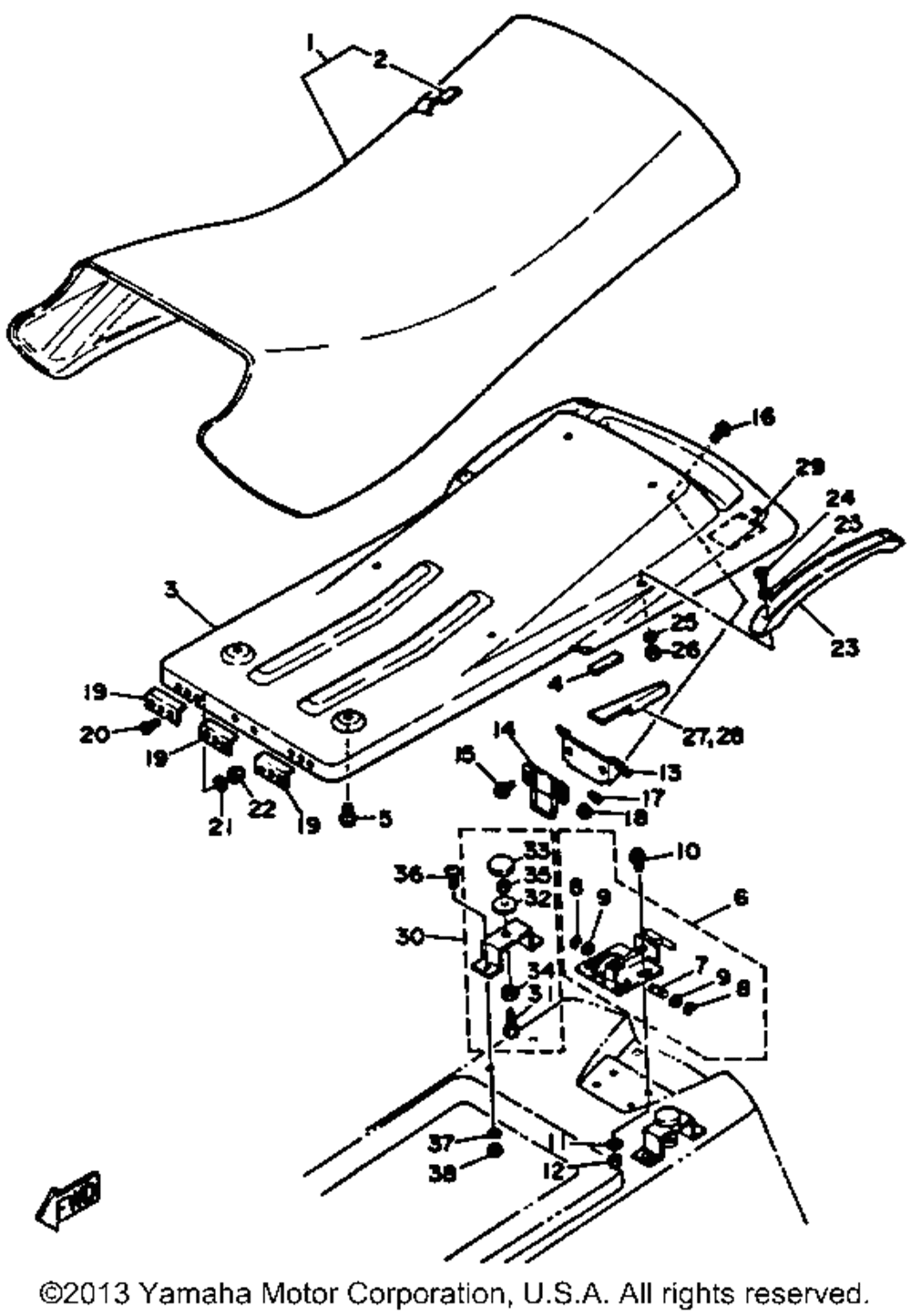

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SEAT ASSY. | 1 | |
| 2 | COVER SEAT | 1 | |
| 3 | BASE SEAT COMP. | 1 | |
| 3 | BASE SEAT COMP | 1 | |
| 4 | MAT 3 | 2 | |
| 6 | SEAT LOCK ASSY | 1 | |
| 7 | PIN | 1 | |
| 8 | CIRCLIP | 2 | |
| 9 | WASHER (5 per pack) | 2 | |
| 10 | BOLT W/WASHER (5 per pack) | 4 | |
| 12 | NUTSELF-LOCKING | 4 | |
| 13 | BASE HOOK END | 1 | |
| 14 | HOOK END | 1 | |
| 15 | BOLT HEX W/WASHER | 2 | |
| 16 | SCREW W/WASHER (5 per pack) | 4 | |
| 19 | STOPPERSEAT 2 | 3 | |
| 19 | STOPPER SEAT 2 | 1 | |
| 20 | SCREW FLAT HEAD | 4 | |
| 20 | SCREWFLAT HEAD (10 per pack) | 4 | |
| 21 | WASHER (5 per pack) | 4 | |
| 22 | NUTSELF-LOCKING | 4 | |
| 23 | GRIPHAND | 2 | |
| 24 | SCREWPAN HEAD | 4 | |
| 26 | NUTFLANGE | 4 | |
| 27 | MAT (LH) (LH) | 1 | |
| 28 | MAT (RH) (RH) | 1 | |
| 29 | LINER DAMPER | 2 | |
| 30 | DAMPERSEAT ASY | 2 | |
| 31 | BOLT | 2 | |
| 32 | PLATE | 2 | |
| 34 | NUT | 2 | |
| 35 | NUT | 2 | |
| 36 | SCREWPAN HEAD (5 per pack) | 4 |
