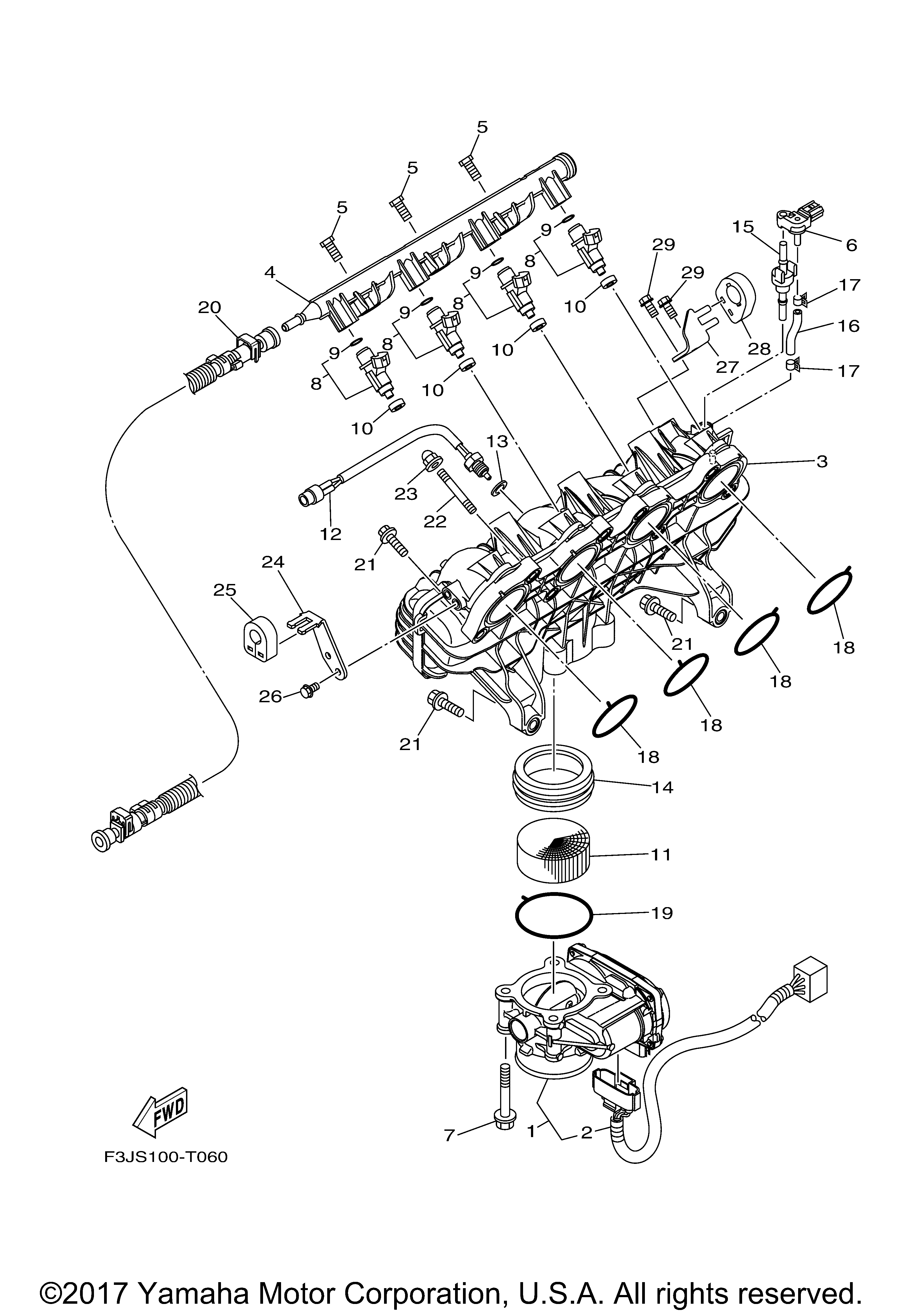

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE BODY ASSY | 1 | |
| 2 | WIRE SUB LEAD | 1 | |
| 3 | MANIFOLD INTAKE 1 | 1 | |
| 4 | DELIVERY PIPE | 1 | |
| 5 | BOLT | 3 | |
| 6 | SENSOR PRESSURE | 1 | |
| 7 | BOLT FLANGE | 4 | |
| 8 | INJECTOR | 4 | |
| 9 | O-RING | 1 | |
| 10 | GASKET MANIFOLD | 4 | |
| 11 | RIBBON | 1 | |
| 12 | SENSOR AIR TEMPERAT | 1 | |
| 13 | WASHER | 1 | |
| 14 | HOLDER | 1 | |
| 15 | GROMMET | 2 | |
| 16 | HOSE VACUUM SENSING | 1 | |
| 17 | CLIP | 2 | |
| 18 | GASKET INSULATING | 4 | |
| 19 | GASKET INSULATING | 1 | |
| 20 | FUEL HOSE ASSY | 1 | |
| 21 | BOLT WITH WASHER | 8 | |
| 22 | BOLT STUD | 2 | |
| 23 | NUT CROWN(4BR) | 2 | |
| 24 | PLATE STAY | 1 | |
| 25 | GROMMET | 1 | |
| 26 | BOLT FLANGE | 2 | |
| 27 | PLATE STAY | 1 | |
| 28 | GROMMET | 1 |
