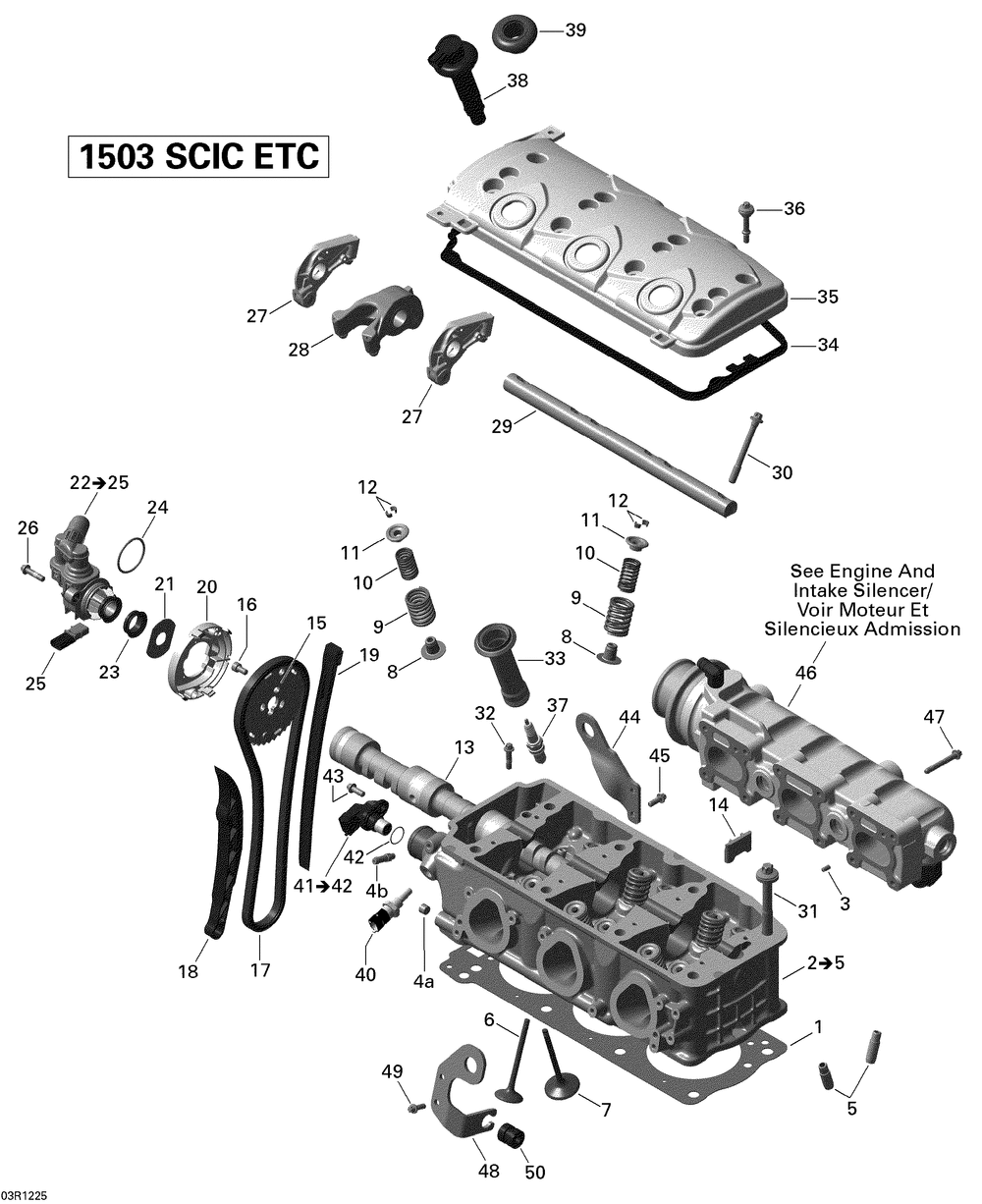

01- Cylinder Head 3_180 Challenger

№	Наименование	Кол-во
1	JOINT ETANCHE *CYLINDER HEAD GASKET	1
2	CYLINDER HEAD ASS Y Includes 2 to 5	1
3	Drive Pin 5 X 10	2
4a	Plug Screw M10 X 1	1
4b	HOSE NIPPLE	1
5	VALVE GUIDE	12
6	EXHAUST VALVE 31 MM	6
7	INTAKE VALVE 38 MM	6
8	VALVE STEM SEAL	12
9	VALVE SPRING	12
10	VALVE SPRING INSIDE	12
11	VALVE SPRING RETAINER	12
12	Valve Cotter	24
13	CAMSHAFT	1
14	CAMSHAFT GUIDE	1
15	TIMING GEAR 38 TEETH	1
16	SCREW M6 X 12	3
17	CAMSHAFT CHAIN	1
18	CHAIN TENSION GUIDE	1
19	CHAIN GUIDE	1
20	COVER	1
21	THRUST WASHER	1
22	VENT VALVE ASS Y Includes 22 to 25	1
22	VENT VALVE ASS Y Includes 14 to 16	1
23	V-Ring	1
24	O-Ring	1
25	TOPS SWITCH	1
26	FLANGED TORX SCREW M6 X 25 (5.000 per pack)	2
27	ROCKER ARM EXHAUST	6
28	ROCKER ARM INNER	3
29	ROCKER ARM SHAFT	1
30	TORX SCREW M8 X 72	6
31	TORX FLANGED SCREW M11 X 147	8
33	SPARK PLUG PIPE	3
34	VALVE COVER GASKET	1
35	VALVE COVER	1
36	TORX SCREW M6 X 30.5	8
37	SPARK PLUG NGK DCP-R8E (10.000 per pack)	3
38	IGNITION COIL KIT	3
39	SEALING CUP	3
40	TEMPERATURE SENSOR	1
41	Camshaft Position Sensor Ass'y	1
42	O-Ring	1
43	FLANGED TORX SCREW M6 X 16 (5.000 per pack)	1
44	TRANSPORT BRACKET PTO	1
47	FLANGED TORX SCREW M6 X 45	12
48	TRANSPORT BRACKET FRONT	1
50	RUBBER BRACKET	1
