SEA-DOO Explorer, 5455 Explorer, 5455 09- Rear Seat And Storage Compartment

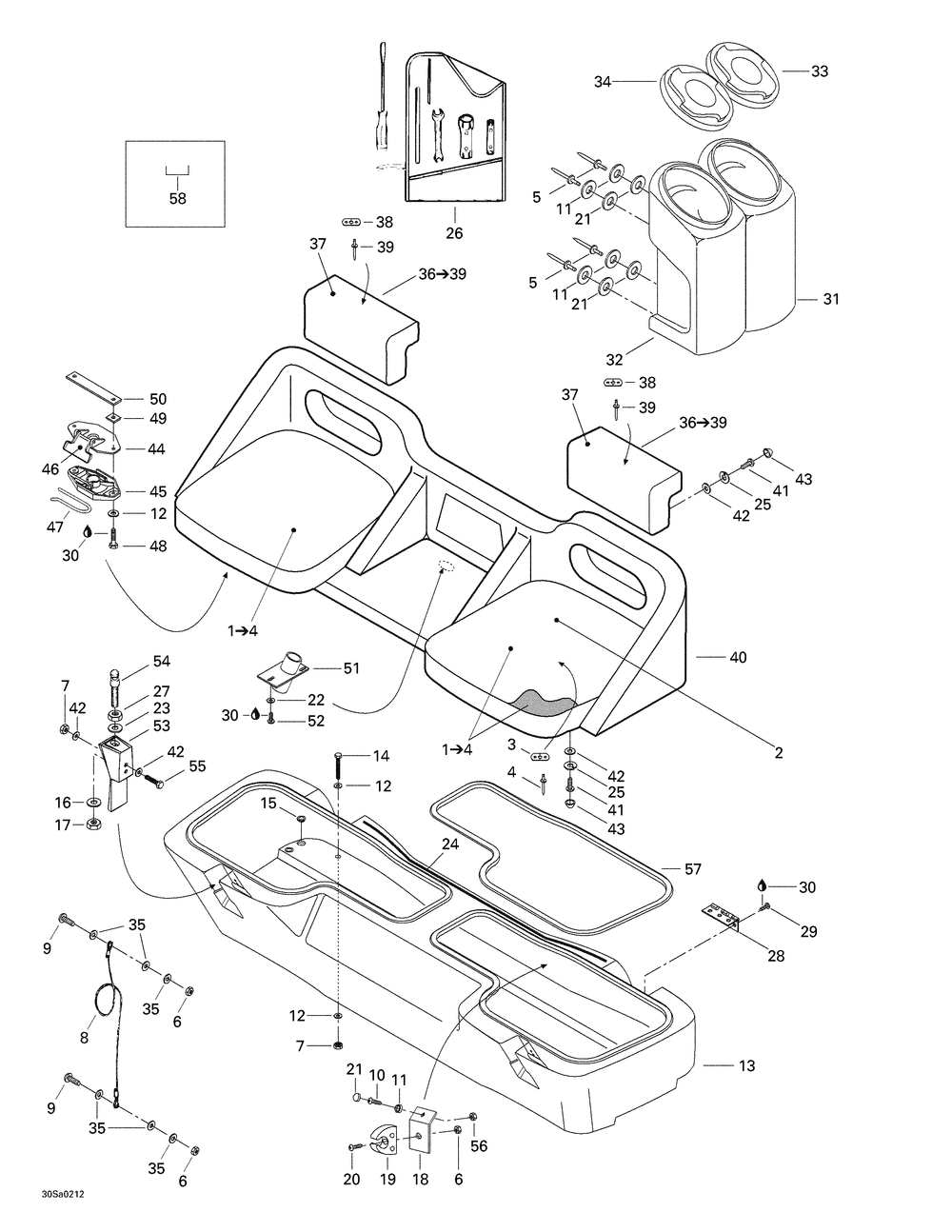

09- Rear Seat And Storage Compartment
№ Наименование Примечание Кол-во
1 SIEGE ARR.DOUB.*SEAT-REAR/DOUBLE Includes 1 - 4. 2
3 NUT-SPRING M5 SS-302 (5.000 per pack) 4
4 RIVET TEC 3/32 *RIVET-TEC 3/32 (10.000 per pack) 8
6 HEX. ELASTIC NUT M5 (5.000 per pack) 4
7 Hex. Elastic Stop Nut M6 8
8 RETAINER CABLE 1
9 SCREW M5 X 16 (5.000 per pack) 2
10 PHILLIPS SCREW M4 X 20 (5.000 per pack) 2
11 RETAINER CAP (10.000 per pack) 12
12 Flat Washer M6, Stainless 12
14 HEX. SCREW M6 X 35 (10.000 per pack) 4
15 BLACK PLUG (4.000 per pack) 4
16 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
17 HEX. ELASTIC NUT M10 (5.000 per pack) 2
18 BASE SUPPORT *BASE-SUPPORT 2
19 POLE SUPPORT Models Without Tower (2.000 per pack) 2
22 FLAT WASHER M5 STAINLESS (10.000 per pack) 3
23 FLAT WASHER 10 MM STAINLESS (5.000 per pack) 2
24 NEOPRENE SEAL (8.000 per pack) 0
25 Lock Washer Helical M6 12
26 OWNER TOOL KIT 1
27 HEX. JAM NUT M10 (5.000 per pack) 2
28 CHARNIERE SIEGE*HINGE-SEAT 2
29 PHILLIPS SCREW M5 X 12 (5.000 per pack) 12
30 LOCTITE 243 10 ML 0
31 EXTINGUISHER HOUSING 1
33 CAPUCHON RANG. *CAP-STORAGE 1
34 EXTINGUISHER CAP 1
35 Flat Washer 5 mm, Stainless 6
36 DOSSIER ASS. *BACKREST ASSY. Includes 36 - 39. 2
41 PHILLIPS TAPPING SCREW M6.3 X 25 (5.000 per pack) 12
42 Flat Washer M6, Stainless 20
43 CAPUCHON 1/2 *CAP-1/2 (5.000 per pack) 12
44 LATCH COVER 2
45 LATCH ASS Y 2
46 LATCH ASS Y 2
47 LATCH SPRING GTI 5641. (3.000 per pack) 2
48 HEX. SCREW M6 X 45 (5.000 per pack) 4
49 ENTRETOISE *SPACER (5.000 per pack) 4
50 PLAQUE RETENUE *PLATE-RETAINER 2
51 SUPP.BASE LUMIE*SUPP-BASE LIGH 1
52 SCREW M5 X 10 (5.000 per pack) 3
53 SUPPORT ERGOT *SUPPORT-STUD 2
54 STUD LATCH 2
55 Hex. Forming Screw M6 X 20 4
56 NUT-STOP ELASTIC DIN.985A2 (5.000 per pack) 2
57 SEAL METER 0
58 STAPLE 0
