SEA-DOO Challenger 1800, 5611/5616 Challenger 1800, 5611/5616 02- Fuel System

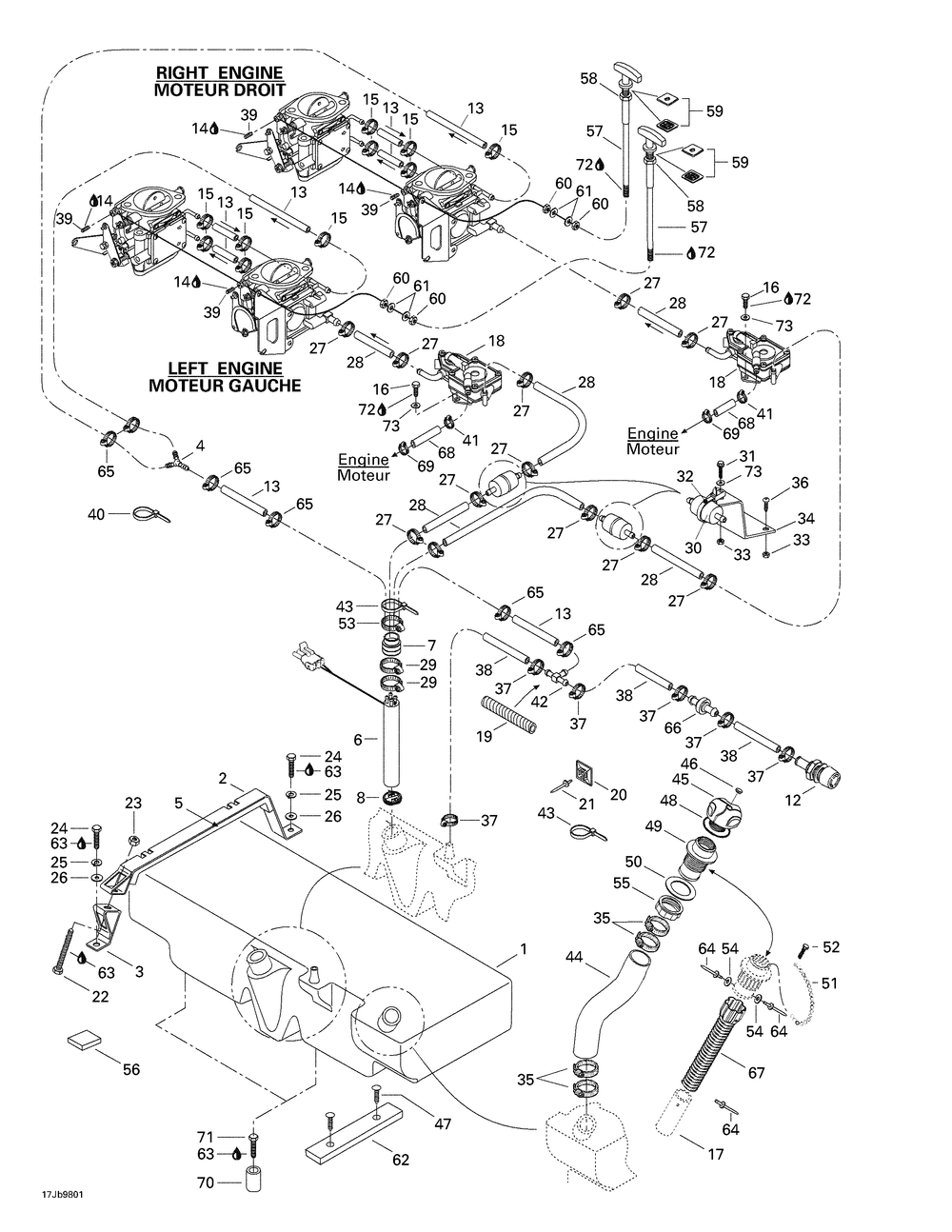

02- Fuel System
№ Наименование Примечание Кол-во
CABLE ETRANG.GA*CABLE-CHOKE LH 1
1 FUEL TANK PLASTIC 1
2 SANGLE RES.ESS.*STRAP-FUEL TANK 2
3 TANK BRACKET 2
4 Y-FITTING 1
5 PROTECTOR PAD 2
6 BAFFLE PICK-UP ASStahos_Y Includes 38 - 43. 1
7 FUEL TUBE ADAPTOR 1
8 FUEL FILTER 1
9 Wire Seal 3
10 FEMALE TERMINAL (5.000 per pack) 3
11 MALE HOUSING 3 CIRCUITS 1
12 AERATEUR *VENT-BOAT 1
13 HOSE 6 MM DS 650 Baja. (1.524 per pack) 0
15 NORMA CLAMP 10
16 HEX. CAP SCREW M6 X 12 (5.000 per pack) 4
18 POMPE ESSENCE *PUMP-FUEL 2
20 TIE RAP MOUNT (5.000 per pack) 1
21 POP RIVET 3/16" (10.000 per pack) 1
22 HEX. SCREW M8 X 55 (5.000 per pack) 2
23 HEX. ELASTIC NUT M8 (5.000 per pack) 2
24 HEX. SCREW M8 X 25 (5.000 per pack) 4
25 WASHER-LOCK HELICAL DIN.127B-A2 (10.000 per pack) 4
26 FLAT WASHER 8 MM STAINLESS (10.000 per pack) 4
27 BRIDE SERRAGE *CLAMP-NORMA 12
28 BOYAU 5/16" *HOSE-5/16" 0
29 TRIDON GEAR CLAMP (5.000 per pack) 2
30 FILTRE ESSENCE *FILTER-FUEL IN LINE 2
31 HEX. FORMING SCREW M6 X 20 (5.000 per pack) 2
32 TIE RAP *TIE-RAP 2
33 HEX. ELASTIC STOP NUT M6 (5.000 per pack) 6
37 NORMA CLAMP 6
38 BOYAU 16MM. *HOSE-16MM. (3.000 per pack) 0
39 SCREW-SET SOCKET DIN.916A2 (10.000 per pack) 4
40 Tie-Rap 142 mm 1
41 Oetiker Clamp 2
42 T-FITTING 1
43 TIE-RAP 180 MM (50.000 per pack) 2
44 NECK FILLER HOSE 1
45 FUEL TANK CAP BLACK Includes 37 - 38. 1
46 SNAP CAP BLACK (5.000 per pack) 1
47 BLACK DART (5.000 per pack) 8
48 JOINT ETANCHE *GASKET (5.000 per pack) 1
49 FILLER NECK 1
50 JOINT ETANCHE *GASKET 1
51 OIL CAP CHAIN (5.000 per pack) 1
52 SCREW K40 X 10 (5.000 per pack) 1
53 NORMA CLAMP 1
54 FLAT WASHER M3 STAINLESS (10.000 per pack) 2
55 FILLER NECK NUT FUEL 1
56 PROTECTEUR PAD (10.000 per pack) 1
57 CABLE ETRANG.DR*CABLE-CHOKE RH Includes 57 - 61. 1
58 NUT-HEXAGONAL HI-LEX (5.000 per pack) 2
59 PLAQUE ETRANG. *PLATE-CHOKE (5.000 per pack) 4
60 HEX. NUT M6 (5.000 per pack) 4
61 FLAT WASHER M6 STAINLESS (25.000 per pack) 4
62 TAMPON CAOUT. *PAD-RUBBER 4
63 LOCTITE 271 10 ML 0
64 RIVET-POP 1/8 *RIVET-POP 1/8 (50.000 per pack) 3
65 BRIDE SERRAGE *CLAMP-NORMA 6
66 VENT FUEL SURGE PROTECTOR 1
67 FILLER NECK INTERIOR 1
68 BOYAU 6MM. *HOSE-6MM. PAC=5M (5.000 per pack) 0
69 TRIDON GEAR CLAMP MX Z 500. (10.000 per pack) 2
70 RUBBER BUMPER 2
71 PHILLIPS SCREW M5 X 35 (5.000 per pack) 2
72 LOCTITE 243 10 ML 0
