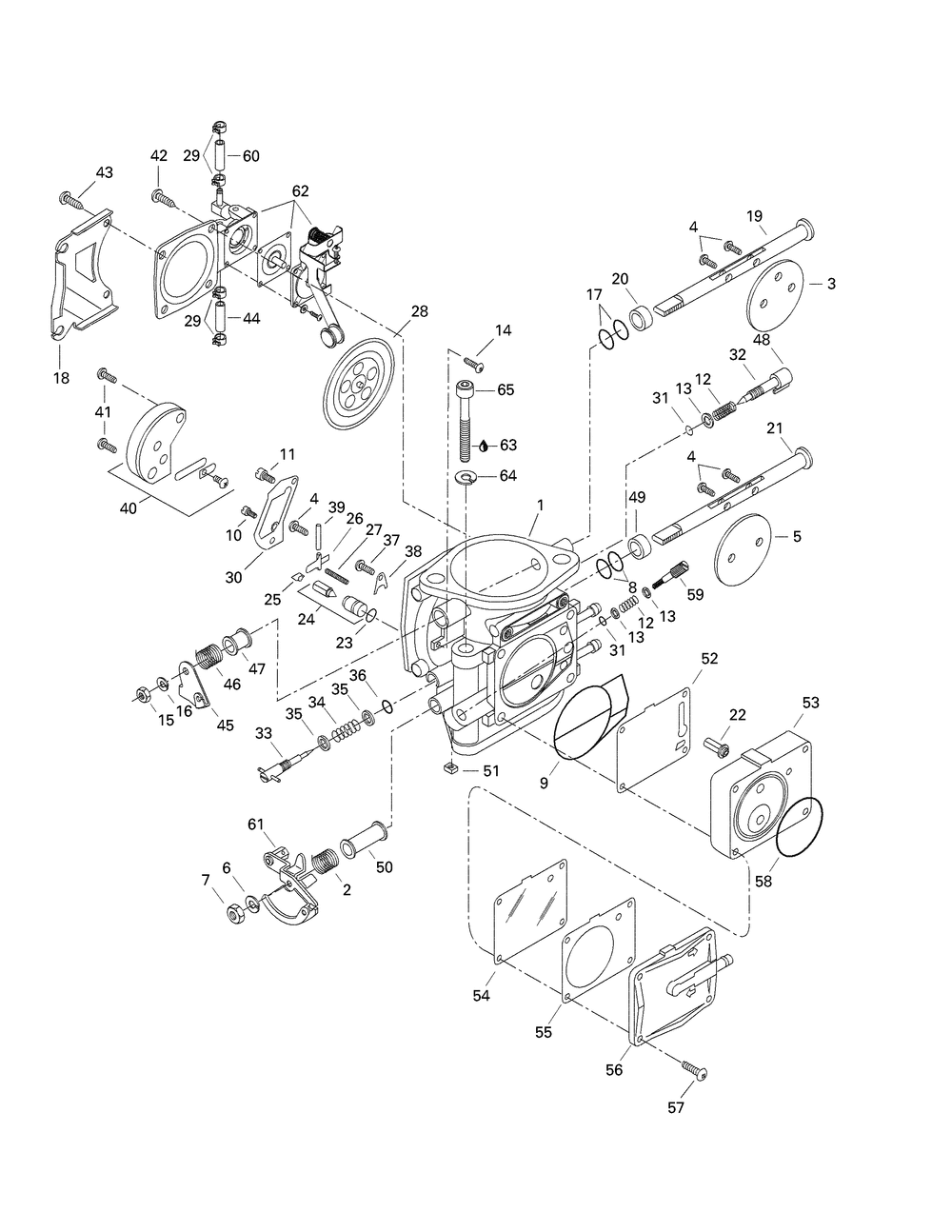

02- Carburetor (single Mikuni)

№	Наименование	Кол-во
1	CARBURATEUR *CARBURATOR Includes 1 - 62.	1
2	SPRING	1
4	VIS ROND.RESSOR*SCREW-SPR.WASH (5.000 per pack)	5
6	RONDELLE RESSOR*WASHER-SPRING (5.000 per pack)	1
7	ECROU *NUT (5.000 per pack)	1
8	SEALING RING	2
9	O-RING	1
10	GICLEUR RALENTI*JET-PILOT 67.5	1
11	GICLEUR PRINC. *JET-MAIN 182.5	1
12	SPRING	2
13	RONDELLE *WASHER (5.000 per pack)	3
14	VIS *SCREW	1
15	ECROU *NUT	1
16	RONDELLE RESSOR*WASHER-SPRING	1
17	SEALING RING	2
18	SUPPORT	1
20	RING	1
22	FUEL FILTER (2.000 per pack)	1
23	O-RING (5.000 per pack)	1
24	POINTEAU 1.5 *VALVE-NEEDLE	1
25	CLIP (2.000 per pack)	1
26	NEEDLE VALVE LEVER	1
27	RESSORT *SPRING	1
28	DIAPHRAGM ASS Y	1
29	PINCE *CLIP CHALLENGER 1800 5600 PTO.	4
30	JOINT ETANCHE *GASKET	1
31	O-RING (5.000 per pack)	2
32	ADJUSTER SCREW	1
33	IDLE ADJUSTING SCREW	1
34	SPRING (10.000 per pack)	1
36	O-RING (10.000 per pack)	1
37	SCREW AND SPRING WASHER (5.000 per pack)	1
38	PLAQUE *PLATE	1
39	GOUPILLE *PIN (5.000 per pack)	1
40	VALVE ASS Y	1
41	VIS *SCREW (2.000 per pack)	2
42	VIS *SCREW	2
43	VIS *SCREW (5.000 per pack)	2
44	BOYAU *HOSE (3.000 per pack)	1
45	CHOKE LEVER	1
46	SPRING	1
47	RING	1
48	CAPUCHON CARB. *CAP-WHITE	1
49	RING	1
50	RING	1
51	ECROU *NUT	1
52	JOINT ETANCHE *GASKET	1
53	BODY PUMP ASS Y	1
54	DIAPHRAGM	1
55	JOINT ETANCHE *GASKET	1
56	PUMP COVER	1
57	VIS *SCREW (5.000 per pack)	4
58	O-RING	1
59	ADJUSTER SCREW	1
60	BOYAU *HOSE	1
61	THROTTLE LEVER ASS Y	1
62	DIAPHRAGME *DIAPHRAGM	1
63	LOCTITE 577 250 ML	0
64	WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack)	2
65	SCREW-SOCKET HD.DIN.912A2 (5.000 per pack)	2
