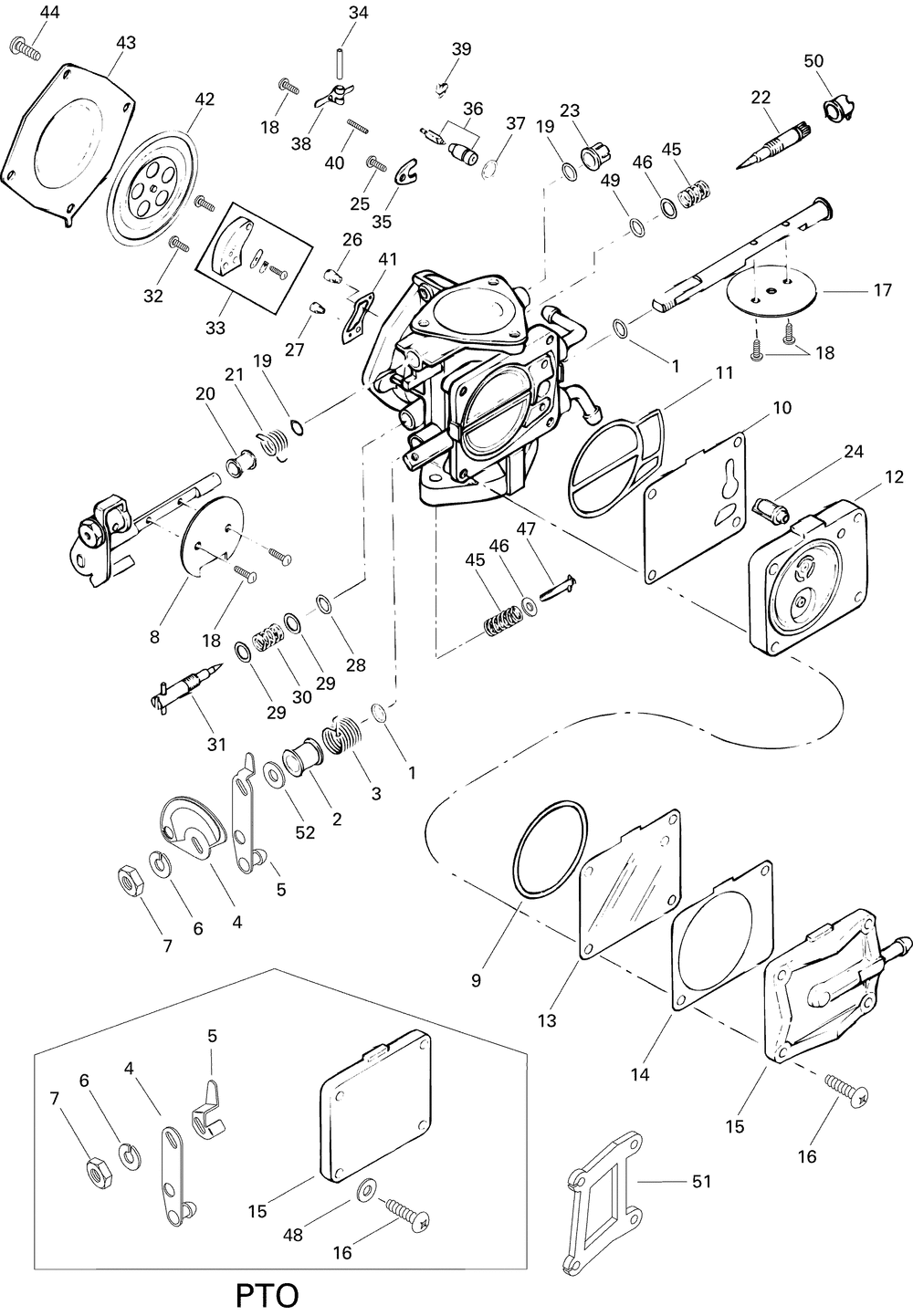

02- Carburetor MAG

№	Наименование	Кол-во
1	CARBURATEUR MAG*CARBURATOR-MAG Includes 1 to 52	1
1	BAGUE ETANCHE *SEALING RING SP 5879.	2
2	RING	1
3	RESSORT *SPRING SPX MAG 5636/5828.	1
4	LEVIER ACC.ASS.*LEVER-THROT.AS	1
5	LEVIER ACC.ASS.*LEVER-THROT.AS EXPLORER 5824 MAG.	1
6	RONDELLE RESSOR*WASHER-SPRING (5.000 per pack)	1
7	ECROU *NUT (5.000 per pack)	1
9	O-RING	1
10	JOINT ETANCHE *GASKET	1
11	O-RING	1
12	BODY PUMP ASS Y	1
13	DIAPHRAGM	1
14	JOINT ETANCHE *GASKET	1
15	PUMP COVER	1
16	VIS *SCREW (5.000 per pack)	4
19	BAGUE ETANCHE *SEALING RING SP 5879. (5.000 per pack)	2
20	RING	1
21	RESSORT *SPRING	1
22	ADJUSTER SCREW	1
23	BAGUE *RING SP 5879.	1
24	FUEL FILTER (2.000 per pack)	1
25	SCREW AND SPRING WASHER (5.000 per pack)	1
26	MAIN JET 127.5 330HO	1
27	GICLEUR RALENTI*JET-PILOT 60	1
28	O-RING (10.000 per pack)	1
30	SPRING (10.000 per pack)	1
31	IDLE ADJUSTING SCREW	1
32	VIS *SCREW (2.000 per pack)	2
33	VALVE ASS Y	1
34	GOUPILLE *PIN (5.000 per pack)	1
35	PLAQUE *PLATE	1
36	NEEDLE VALVE 2.0	1
37	O-RING (5.000 per pack)	1
38	NEEDLE VALVE LEVER	1
39	CLIP (2.000 per pack)	1
40	RESSORT *SPRING SP 5879. (5.000 per pack)	1
41	JOINT ETANCHE *GASKET	1
42	DIAPHRAGM ASS Y	1
43	COUVERCLE *COVER	1
44	VIS *SCREW (5.000 per pack)	4
45	SPRING	1
46	RONDELLE *WASHER (5.000 per pack)	1
49	O-RING (5.000 per pack)	1
50	CAPUCHON CARB. *CAP-WHITE	1
51	SUPPORT *SUPPORT	1
