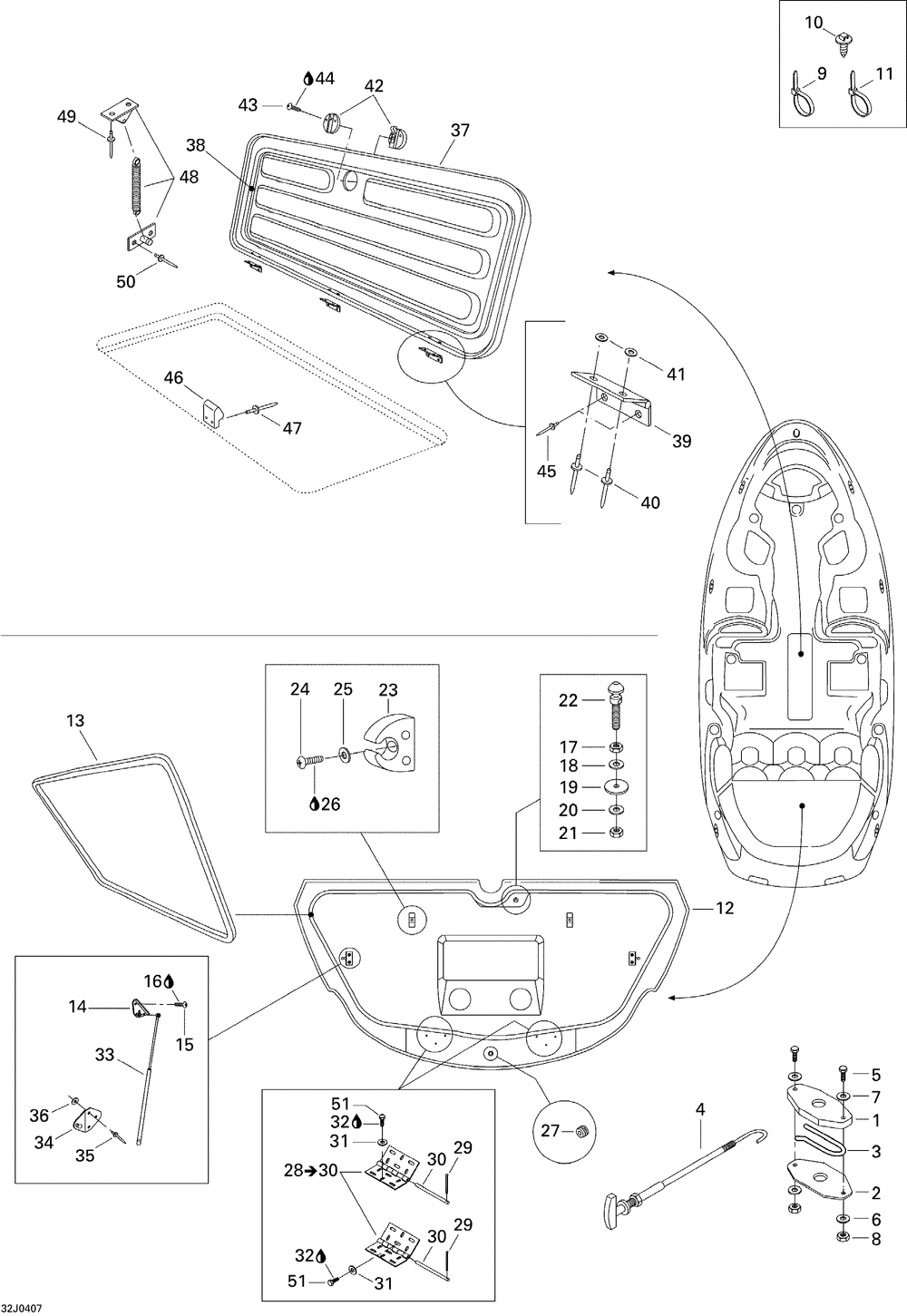

09- Engine Compartment And Central Cover

№	Наименование	Кол-во
1	LATCH BASE	1
2	LATCH COVER	1
3	SPRING (5.000 per pack)	1
4	LATCH CABLE	1
5	HEX. SCREW M6 X 35 (10.000 per pack)	2
6	Flat Washer M6, Stainless	2
7	Flat Washer M6, Stainless	2
8	Hex. Elastic Stop Nut M6	2
9	Tie-Rap 350 mm	1
10	MOUNT DART (5.000 per pack)	15
11	Tie-Rap 180 mm	42
12	ENGINE COVER 5172 (250 OPTI)	1
13	NEOPRENE SEAL (8.000 per pack)	0
14	SUPP.AMORT.*BRACKET-SHOCK/REWORK	1
15	HEX. SCREW M4 X 16 (5.000 per pack)	4
16	LOCTITE 243 10 ML	0
17	HEX. JAM NUT M10 (5.000 per pack)	1
18	FLAT WASHER 10 MM STAINLESS (5.000 per pack)	1
19	RUBBER WASHER (5.000 per pack)	1
21	HEX. ELASTIC NUT M10 (5.000 per pack)	1
22	LATCH STUD	1
23	POLE SUPPORT Models Without Tower (2.000 per pack)	2
24	PHILLIPS SCREW M4 X 25 (5.000 per pack)	2
25	Flat Washer 4 mm	2
27	GROMMET	1
28	CHARNIERE *HINGE Includes 28 to 30	2
29	HINGE ROD	1
30	COTTER PIN M2.5 X 12 (25.000 per pack)	1
33	GAS SHOCK PORT SIDE	1
33	GAS SHOCK Port Side	1
34	SUPP.AMORT.*BRACKET-SHOCK/FLAT	2
35	POP RIVET 3/16" (5.000 per pack)	6
36	FLAT WASHER M5 STAINLESS (10.000 per pack)	6
37	CENTER COVER	1
38	ANNEAU ETANCHE *SEAL-TRAY PAC=1.827M	0
39	HINGE	3
40	POP RIVET 3/16"	6
42	LATCH WHITE	1
43	SCREW M5 X 16 (5.000 per pack)	2
44	LOCTITE 425 *LOCTITE-425	0
46	LATCH BRACKET	1
47	POP RIVET 5/32" (10.000 per pack)	2
48	SPRING SEAT	1
49	POP RIVET 3/16" (10.000 per pack)	2
51	HEX. SCREW M6 X 25 (5.000 per pack)	12
