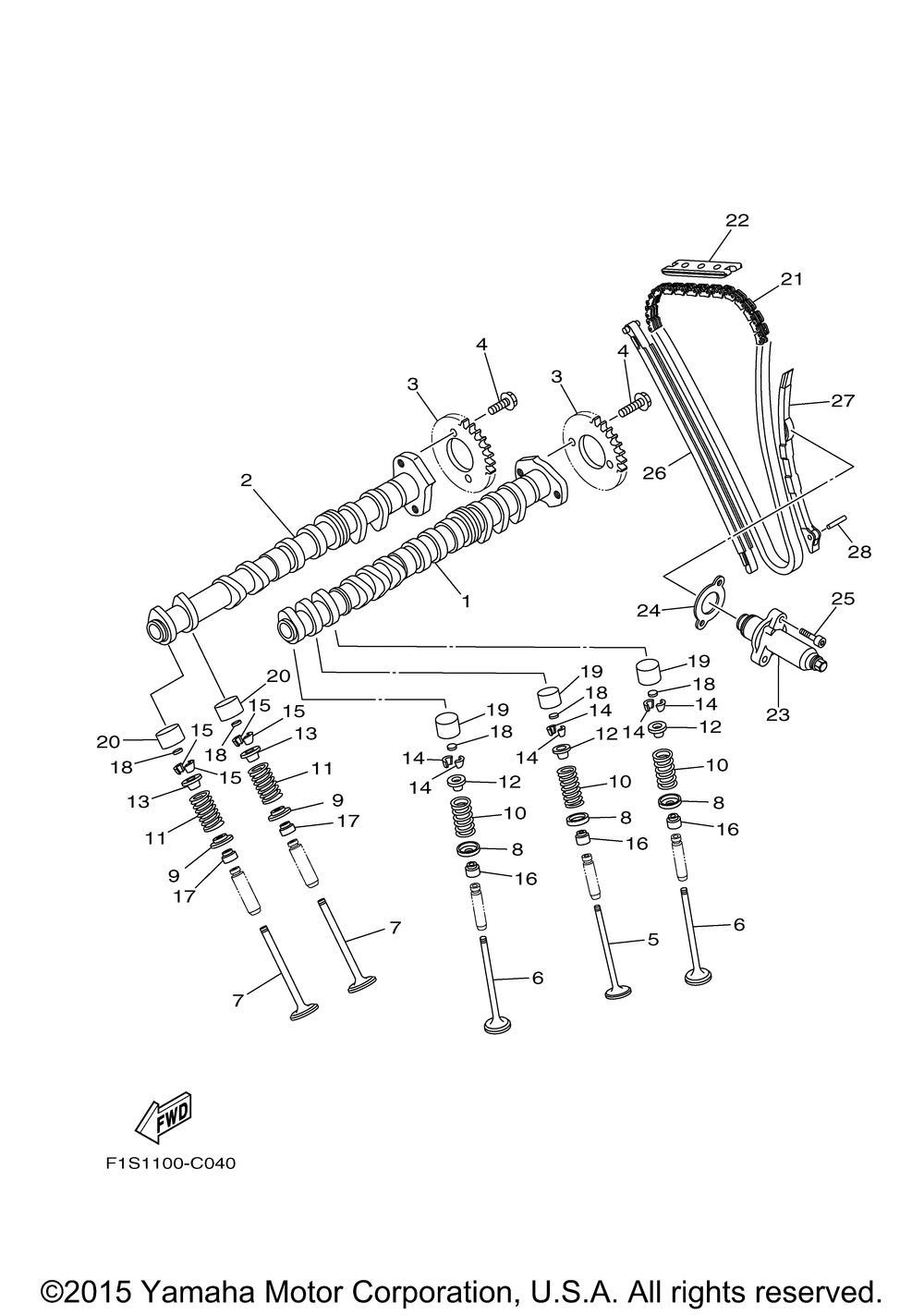

Yamaha SX230 HO (Black) SRT1100AE/SRT1100E SX230 HO (Black) SRT1100AE/SRT1100E VALVE
VALVE
№ Наименование Примечание Кол-во
1 CAMSHAFT 1 1
2 CAMSHAFT 2 1
3 SPROCKET CAM CHAI 2
4 BOLT FLANGE 4
5 VALVE INTAKE 4
6 VALVE INTAKE 2 8
7 VALVE EXHAUST 8
8 SEAT VALVE SPRING 12
10 SPRING VALVE INNE 12
11 SPRING VALVE OUTE 8
12 RETAINER VALVE SP 12
13 RETAINERVALVE SPR 8
14 COTTERVALVE 24
15 COTTERVALVE 16
17 SEAL VALVE STEM 8
18 PADADJUSTING 1.80 (1.80) UR 20
18 PADADJUSTING 1.85 (1.85) UR 20
18 PADADJUSTING 1.90 (1.90) UR 20
18 PADADJUSTING 1.95 (1.95) UR 20
18 PADADJUSTING 2.00 (2.00) UR 20
18 PADADJUSTING 2.05 (2.05) UR 20
18 PAD ADJUSTING 2.10 (2.10) UR 20
18 PADADJUSTING 2.15 (2.15) UR 20
18 PADADJUSTING 2.20 (2.20) UR 20
18 PADADJUSTING 2.25 (2.25) UR 20
18 PADADJUSTING 2.30 (2.30) UR 20
18 PADADJUSTING 2.35 (2.35) UR 20
18 PADADJUSTING 2.40 (2.40) UR 20
18 PADADJUSTING 1.20 (1.20) UR 20
18 PADADJUSTING 1.25 (1.25) UR 20
18 PADADJUSTING 1.30 (1.30) UR 20
18 PADADJUSTING 1.35 (1.35) UR 20
18 PADADJUSTING 1.40 (1.40) UR 20
18 PADADJUSTING 1.45 (1.45) UR 20
18 PADADJUSTING 1.50 (1.50) UR 20
18 PADADJUSTING 1.55 (1.55) UR 20
18 PADADJUSTING 1.60 (1.60) UR 20
18 PADADJUSTING 1.65 (1.65) UR 20
18 PADADJUSTING 1.70 (1.70) UR 20
18 PADADJUSTING 1.75 (1.75) UR 20
19 LIFTER VALVE UR BLUE 12
19 LIFTER VALVE UR RED 12
20 LIFTERVALVE UR BLUE 8
20 LIFTER VALVE UR RED 8
21 CHAIN 1
23 TENSIONER ASSY CAM 1
24 GASKETTENSNR CASE 1
25 BOLT (3EF) 2
26 DAMPER CHAIN 1 1
27 DAMPER CHAIN 2 1
28 PIN DOWEL 1
