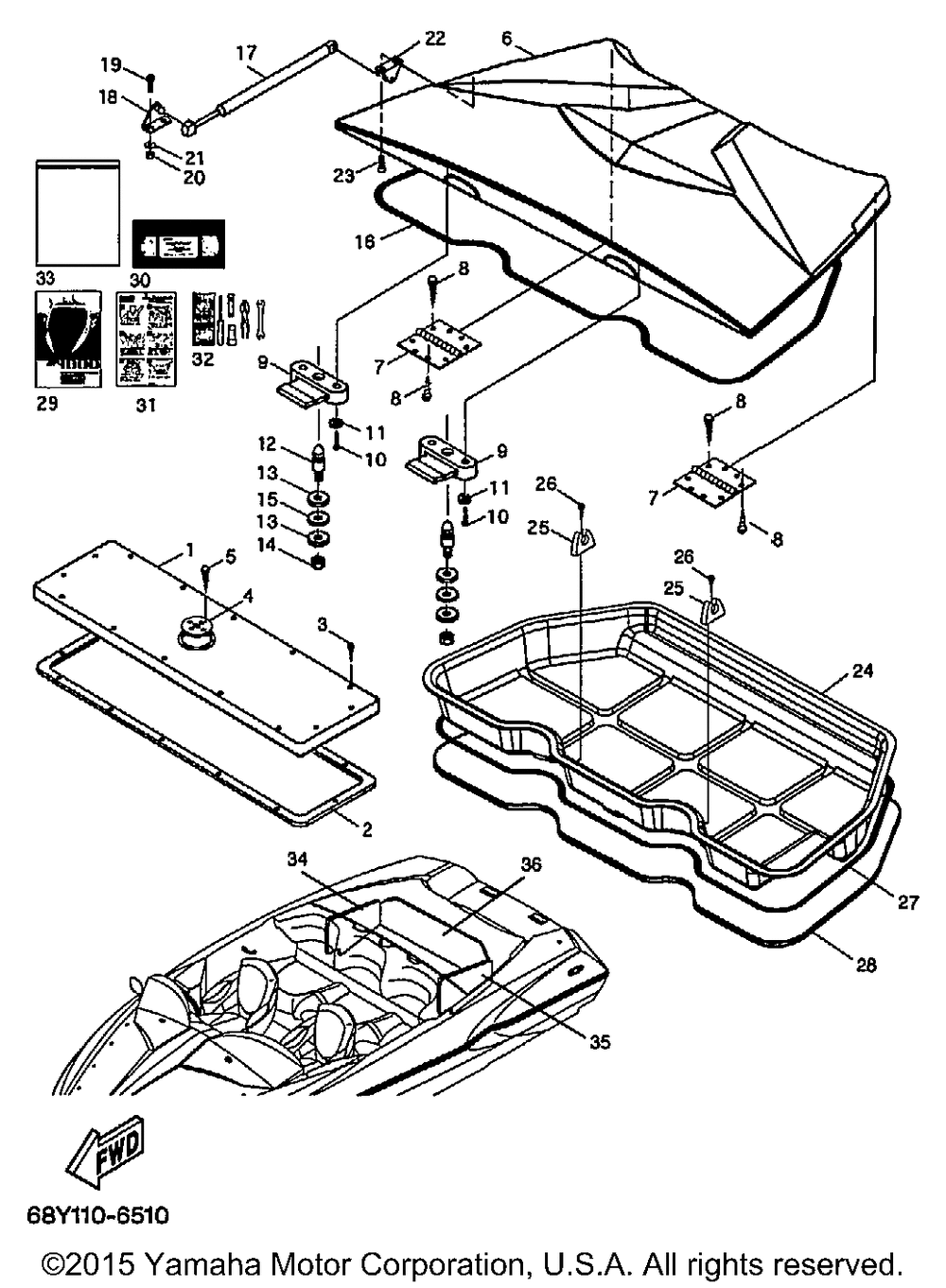

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HATCH TANK 1 | 1 | |
| 2 | SEAL | 1 | |
| 3 | SCREW tahos_10X1 1/2 | 14 | |
| 4 | COVER INSPECTION ( | 1 | |
| 5 | SCREW tahos_8 X 3/4" (5 per pack) | 6 | |
| 6 | ENGINE HATCH ( SMOKE | 1 | |
| 7 | HINGE 5 | 2 | |
| 8 | SCREW 1/4-20 X 1 | 16 | |
| 9 | SEAT LOCK ASSY | 2 | |
| 10 | SCREW 1/4-20X1 3/4 | 4 | |
| 11 | WASHER 1/4" FLAT | 4 | |
| 12 | PIN | 2 | |
| 13 | WASHER 7/16X1 1/2 | 4 | |
| 14 | NUT M10-1.5 NYLOX | 2 | |
| 15 | WASHER SPECIAL | 2 | |
| 16 | PACKING 3 (172") (ENGINE HATCH SEAL) | 1 | |
| 17 | SUPPORT HATCH 2 (GAS SHOCK) | 2 | |
| 18 | BRACKET HATCH SUPPORT | 2 | |
| 19 | SCREW10-24 X 1-1/2 | 4 | |
| 20 | NUT 10-24 NYLOX | 4 | |
| 21 | WASHER tahos_10 FLAT (5 per pack) | 4 | |
| 22 | BRACKETLWR.HATCH SU | 2 | |
| 23 | SCREW 10-24X3/4" | 4 | |
| 24 | TRAY ENGINE ROOM | 1 | |
| 25 | CLIP POLE | 2 | |
| 27 | PACKING 2 ( ENGINE | 1 | |
| 28 | SOUNDPROOF 1 (ENGIN (ENGINE TRAY) | 1 | |
| 29 | XR1800 (XRT1200Z) O | 1 | |
| 30 | SB XR1800Z BASIC ORI | 1 | |
| 31 | 2001 XR1800 OPERAT I | 1 | |
| 32 | TOOL SET | 1 | |
| 33 | TOOL SET | 1 | |
| 34 | S0UNDPROOF 3 | 1 | |
| 35 | SOUNDPROOF 4 (FWD B (FWD.B/H) | 1 | |
| 36 | SOUNDPROOF 5 (AFT B (AFT.B/H) | 1 | |
| 37 | TRIM (170.0") (3.5") NOT SHOWN | 1 | |
| 38 | TRIM (20.0") (17.25) ENGINE HATCH NOT SHOWN | 1 |
