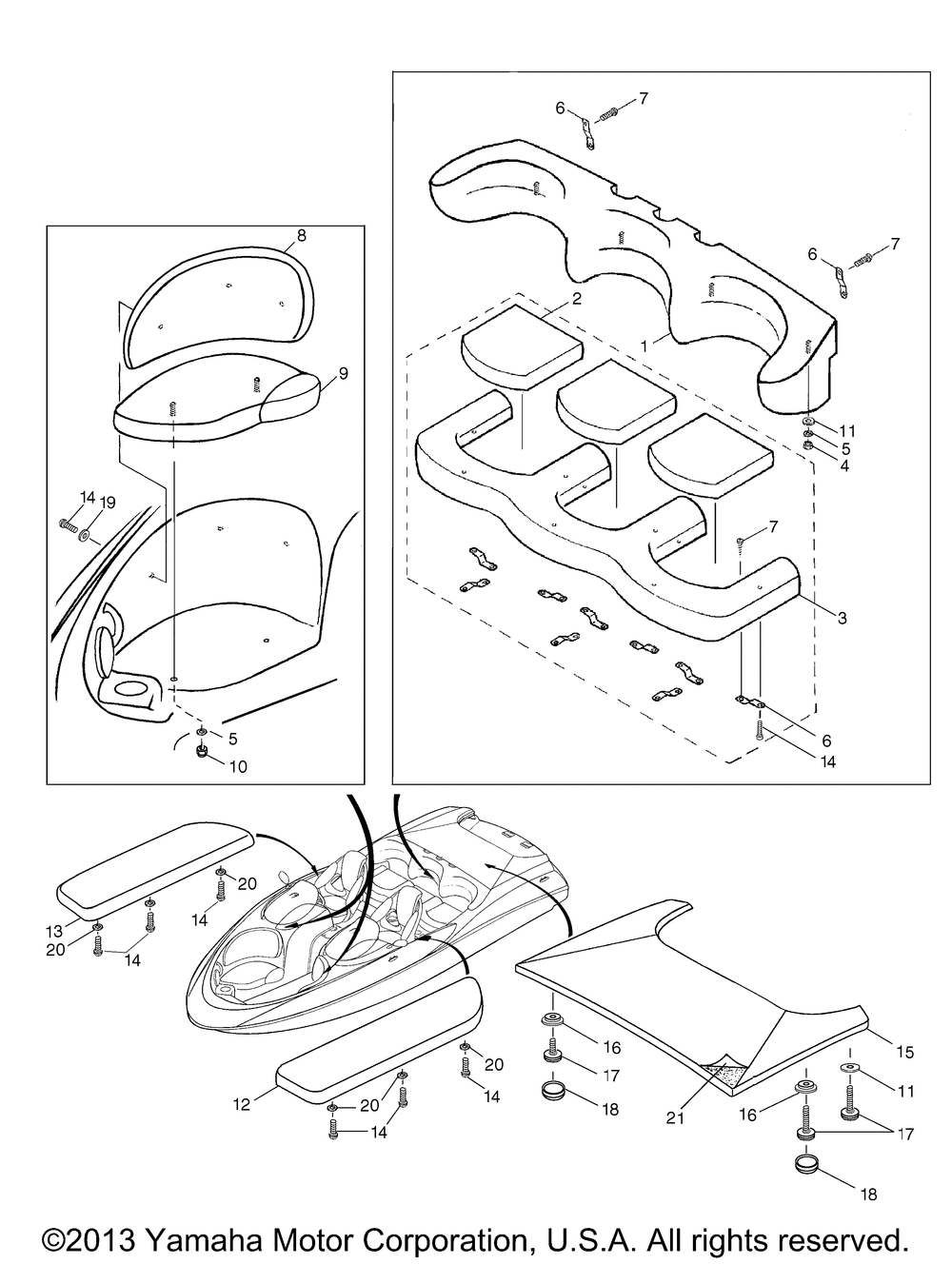

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BACK REST R SEAT | 1 | |
| 2 | CUSHION BACK SEAT | 3 | |
| 3 | SEAT BASE | 1 | |
| 4 | NUT 1/4-20 UN | 4 | |
| 5 | WASHER 1/4" LOCK UN | 8 | |
| 6 | BRACKETSEAT (9114) | 11 | |
| 7 | SCREW tahos_10 X 3/4" | 11 | |
| 8 | BACKREST FRONT PORT | 1 | |
| 8 | BACKREST FRONTSTARB | 1 | |
| 9 | CUSHION SEAT FRONT | 1 | |
| 9 | CUSHION SEAT FRONT | 1 | |
| 12 | PAD 1 (PORT) PORT | 1 | |
| 13 | PAD 2 (STARBOARD) STBD | 2 | |
| 14 | SCREW 1/4-20 X 1 | 21 | |
| 15 | PAD SUNDECK (SUNDECK) | 1 | |
| 16 | WASHER | 20 | |
| 17 | SCREW 1/4-20X1 1/2 | 18 | |
| 17 | SCREW 1/4-20 X 3 | 4 | |
| 18 | CAP (WHITE) | 20 | |
| 19 | WASHER FENDER | 16 | |
| 20 | WASHER FENDER (1/4" | 5 | |
| 21 | COVER SUNDECK | 1 |
