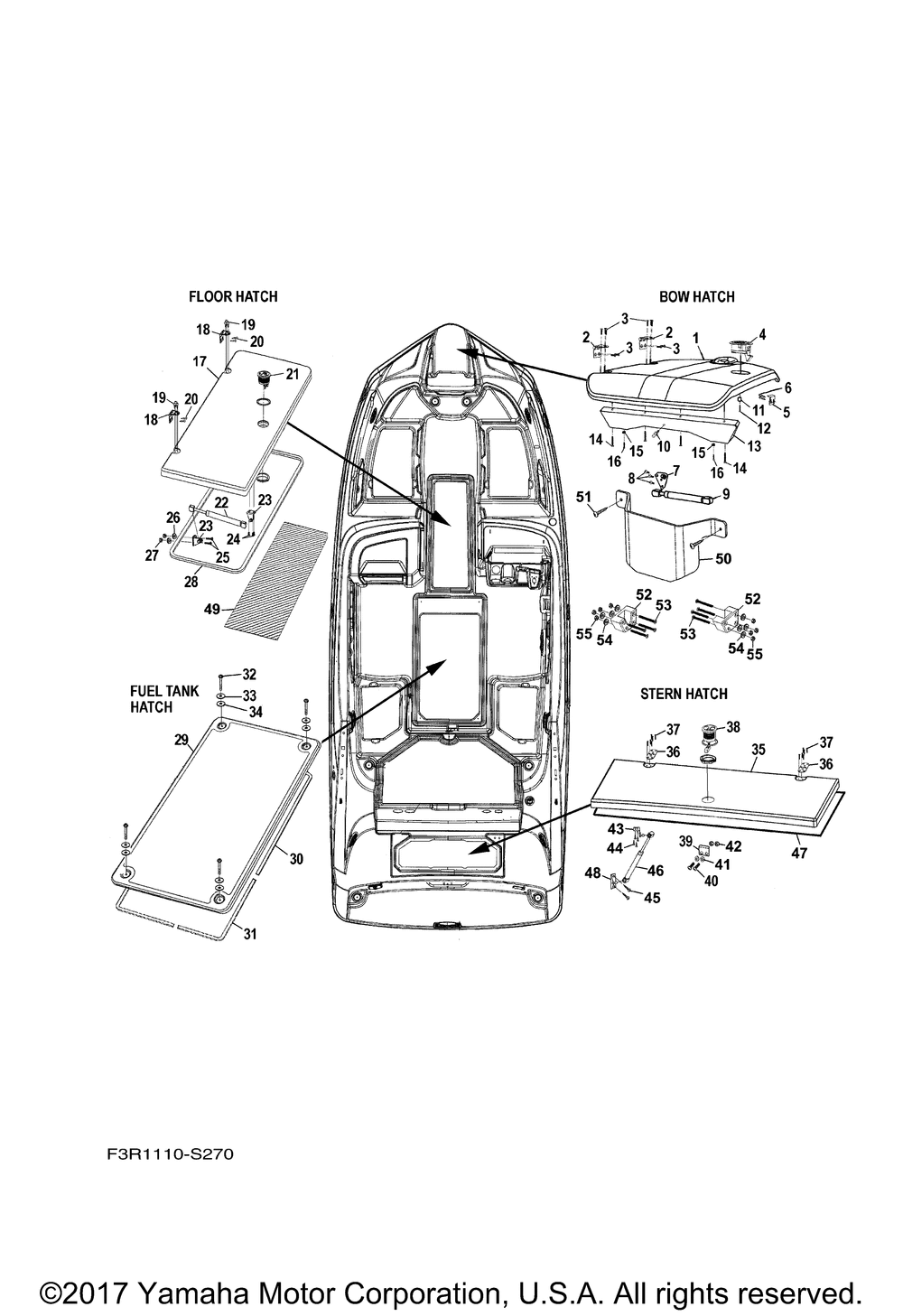

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | LIDLOCKER BOW | 1 | |
| 2 | HINGE 5 | 2 | |
| 3 | SCREW COUNTERSUNK | 10 | |
| 4 | LOCK ASSY. | 1 | |
| 5 | CATCH | 1 | |
| 6 | SCREWTAPPING | 2 | |
| 7 | BASE HATCH SUPPORT | 1 | |
| 8 | SCREW tahos_8 X 3/4" (5 per pack) | 3 | |
| 9 | SUPPORT HATCH 2 | 1 | |
| 10 | SHAFT A | 1 | |
| 11 | CLAMP | 1 | |
| 12 | SCREW tahos_6 X 3/4 PFH | 1 | |
| 13 | BRKT. LOCKER UNDE | 1 | |
| 14 | SCREW | 4 | |
| 15 | CUSHION RUBBER | 4 | |
| 16 | SCREWTAPPING | 4 | |
| 17 | HATCH FLOOR | 1 | |
| 19 | SCREWTAPPING | 6 | |
| 21 | LOCK ASSY. | 1 | |
| 22 | SUPPORT HATCH 2 | 1 | |
| 23 | BRACKETHATCH SUPPOR | 2 | |
| 24 | SCREW tahos_10 X 1/2" | 3 | |
| 25 | SCREW 10-24X3/4" | 2 | |
| 26 | WASHER tahos_10 FLAT (5 per pack) | 2 | |
| 27 | NUT 10-24 NYLOX | 2 | |
| 28 | PACKING 4 | 1 | |
| 29 | HATCH COMP. | 1 | |
| 30 | PACKING 4 | 2 | |
| 31 | PACKING 4 | 2 | |
| 32 | BOLT HEX SOCKET | 4 | |
| 33 | WASHER | 4 | |
| 34 | WASHER SPECIAL | 4 | |
| 35 | STERN HATCH ASSY | 1 | |
| 36 | HINGE 5 | 2 | |
| 38 | LOCK ASSY. | 1 | |
| 39 | LATCH KEEPER | 1 | |
| 41 | WASHER | 2 | |
| 45 | SCREW tahos_10 X 3/4 | 2 | |
| 46 | SUPPORT HACH 2 | 1 | |
| 47 | SEAL | 1 | |
| 48 | BRACKET HATCH SUP | 1 | |
| 49 | MAT | 1 | |
| 50 | PLATE ANCHOR STOPPE | 1 | |
| 51 | SCREW tahos_10 X 3/4" | 2 | |
| 52 | BRACKET | 2 | |
| 53 | SCREW | 8 | |
| 54 | WASHER 1/4" FLAT | 8 | |
| 55 | NUT 1/4-20 | 8 |
