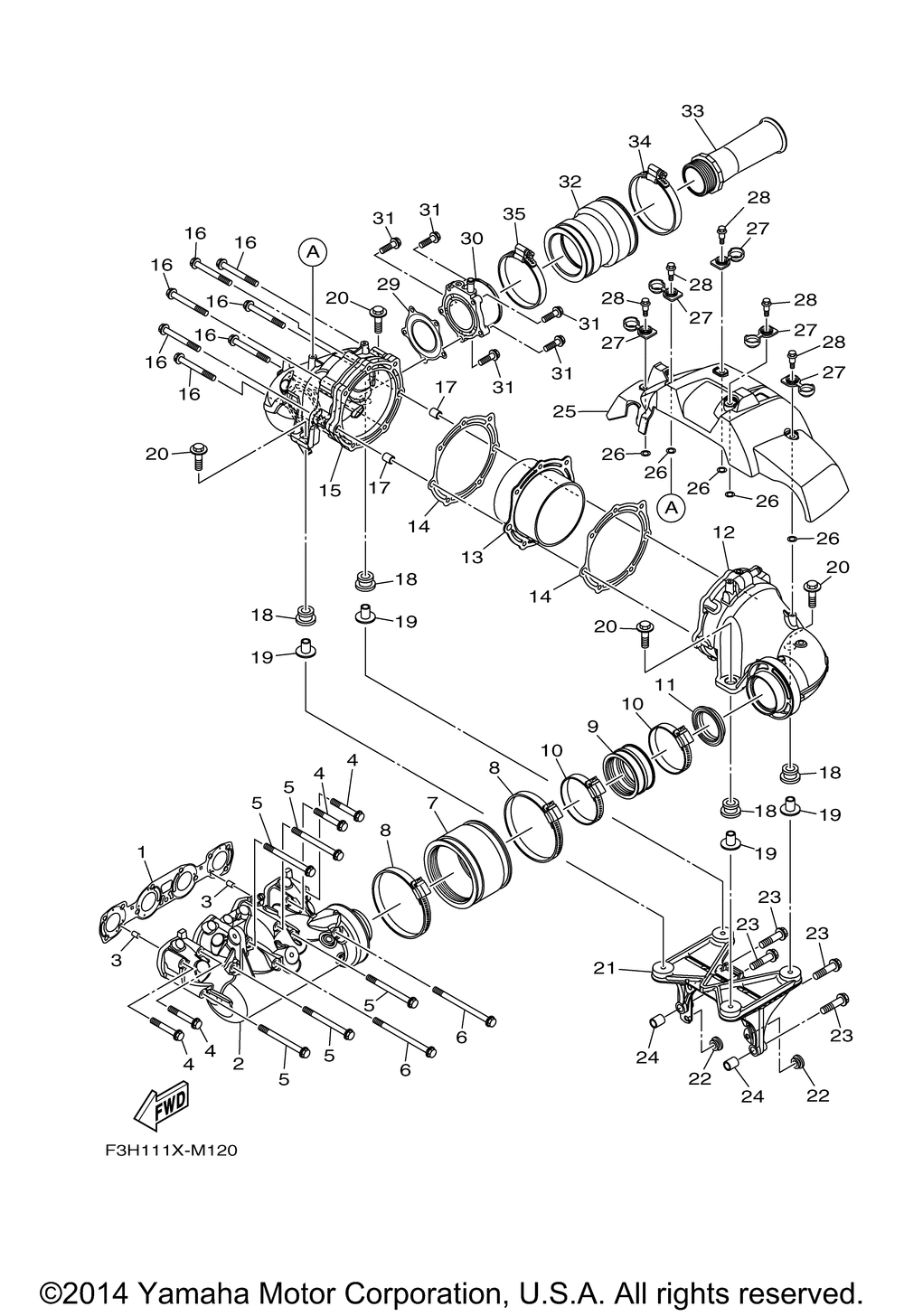

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GASKET EXHAUST PIPE | 1 | |
| 2 | MUFFLER 1 | 1 | |
| 3 | PINDOWEL (5 per pack) | 2 | |
| 4 | BOLT WITH WASHER | 4 | |
| 5 | BOLT WITH WASHER | 5 | |
| 6 | BOLT WITH WASHER | 2 | |
| 7 | JOINT EXHAUST 1 | 1 | |
| 8 | HOSE CLAMP ASSY | 2 | |
| 9 | JOINT EXHAUST 2 | 1 | |
| 10 | HOSE CLAMP ASSY | 2 | |
| 11 | SEAL EXHAUST | 1 | |
| 12 | OUTER COVER EXHAUST | 1 | |
| 13 | CATALYST ASSY. | 1 | |
| 14 | GASKET EXHAUST OUTE | 2 | |
| 15 | OUTER COVER EXHAUST | 1 | |
| 16 | BOLT WITH WASHER | 7 | |
| 17 | PINDOWEL | 2 | |
| 18 | GROMMET | 4 | |
| 19 | COLLAR | 4 | |
| 20 | BOLT WITH WASHER | 4 | |
| 21 | STAY MUFFLER 2 | 1 | |
| 23 | BOLT FLANGE (SMALL HEAD) | 4 | |
| 24 | PINDOWEL (59V) | 2 | |
| 25 | PROTECTOR MUFFLER 1 | 1 | |
| 26 | GASKET | 5 | |
| 27 | COVER | 5 | |
| 28 | BOLT | 5 | |
| 29 | GASKET MUFFLER DAMP | 1 | |
| 30 | PIPE TAIL | 1 | |
| 31 | BOLTFLANGE (3EF) (SMALL HEAD) | 5 | |
| 32 | PIPE OUTLET | 1 | |
| 33 | PIPE 1 | 1 | |
| 34 | HOSE CLAMP ASSY | 1 | |
| 35 | HOSE CLAMP ASSY | 1 |
