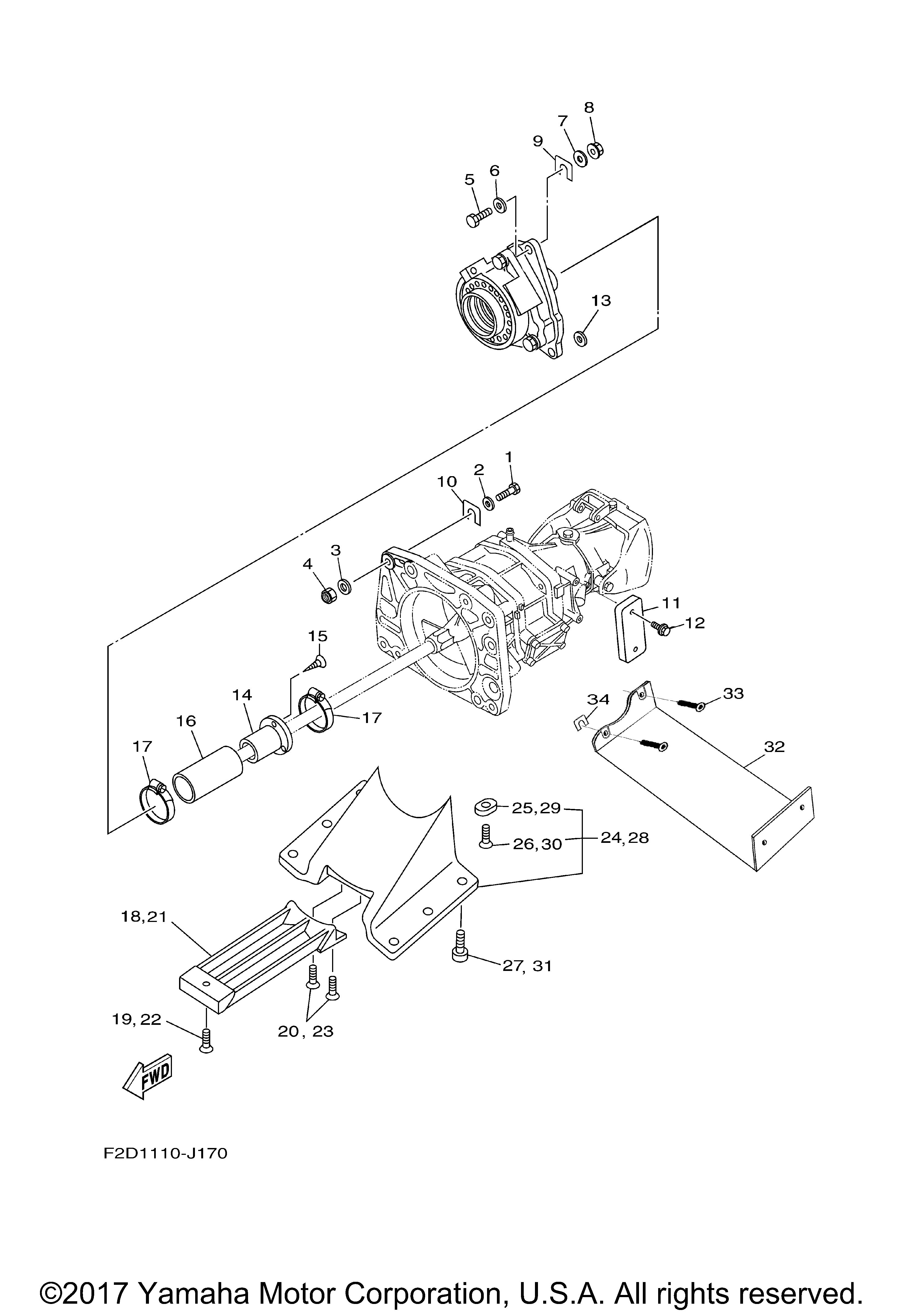

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOLT M10-1.5 X 65 | 8 | |
| 2 | WASHERPLATE (M10) | 8 | |
| 3 | WASHER 7/16X1 1/2 | 8 | |
| 4 | NUT M10-1.5 NYLOX | 8 | |
| 5 | BOLT | 6 | |
| 6 | WASHER PLATE (10 per pack) | 6 | |
| 7 | WASHER 5/16X1 1/2 | 6 | |
| 8 | NUT SELF-LOCKING | 6 | |
| 9 | SHIM (0.5) (T=0.5) UN (5 per pack) | 4 | |
| 11 | ANODE (A006760850) (A006760850) | 2 | |
| 12 | BOLT WITH WASHER | 4 | |
| 14 | JOINT PIPE | 2 | |
| 15 | SCREW TAPPING | 6 | |
| 16 | PIPE 1 | 2 | |
| 17 | HOSE CLAMP ASSY | 4 | |
| 18 | SCREENINTAKE | 1 | |
| 19 | SCREW FLAT HEAD | 1 | |
| 20 | SCREW FLAT HEAD | 2 | |
| 21 | SCREENINTAKE | 1 | |
| 24 | DUCT INTAKE PORT | 1 | |
| 25 | ANODE (A006760850) | 1 | |
| 26 | SCREW tahos_10-32 X 1/2 | 1 | |
| 27 | BOLT HEX SOCKET | 6 | |
| 28 | DUCT INTAKE STBD. | 1 | |
| 32 | PLATE 2 | 2 |
