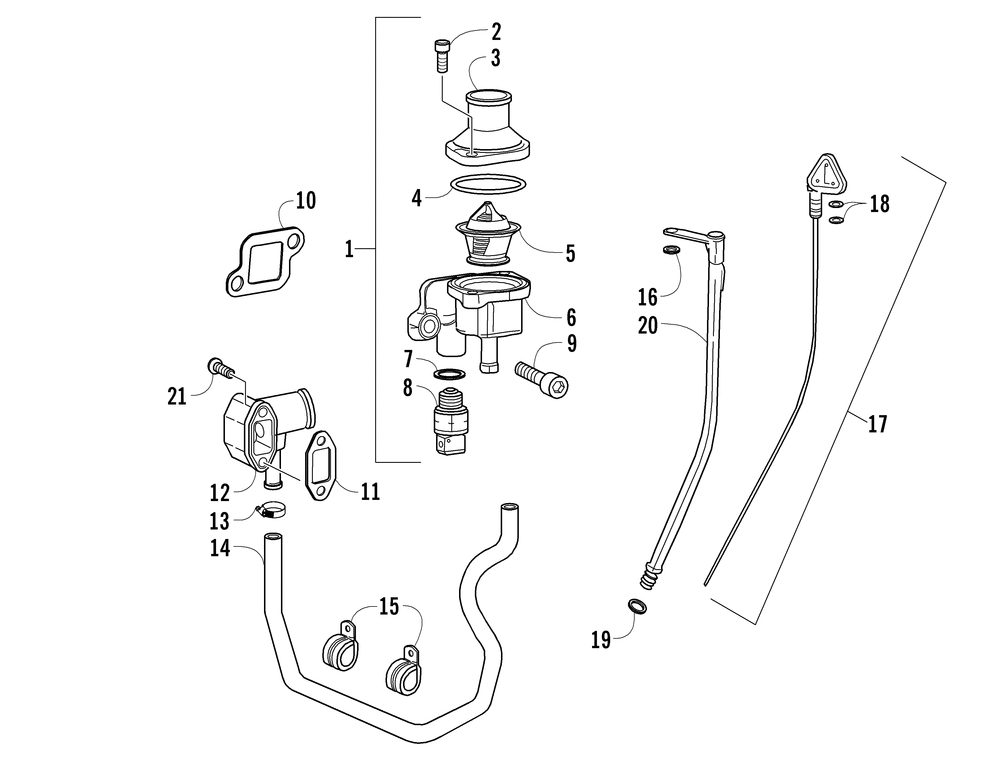

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THERMOSTAT ASSY. (inc. 2-8) | 1 | |
| 2 | SCREW M 8 X 20 | 2 | |
| 3 | THERMOSTAT COVER | 1 | |
| 4 | O RING | 1 | |
| 5 | THERMOSTATTHERMAL EXPANS.VALVE | 1 | |
| 6 | THERMOSTAT ASSY BODY | 1 | |
| 7 | COPPER GASKET DIAM.16 | 1 | |
| 8 | WATER WARNING LIGHT/SENSOR | 1 | |
| 9 | SCREW M 8 X 30 | 2 | |
| 10 | GASKET | 1 | |
| 11 | GASKET | 1 | |
| 12 | FLANGE | 1 | |
| 13 | CLAMP DIAM.12-22 | 2 | |
| 14 | HOSECOOLANT-BYPASS | 1 | |
| 15 | CLAMP | 2 | |
| 16 | WASHER | 1 | |
| 17 | DIPSTICK-CYLINDER HEAD (inc. 18) | 1 | |
| 18 | RUBBER OIL SEAL (2 per pack) | 2 | |
| 19 | O RING 108 | 1 | |
| 20 | DIPSTICK GUARD | 1 | |
| 21 | SCREW M 6 X 35 | 2 |
