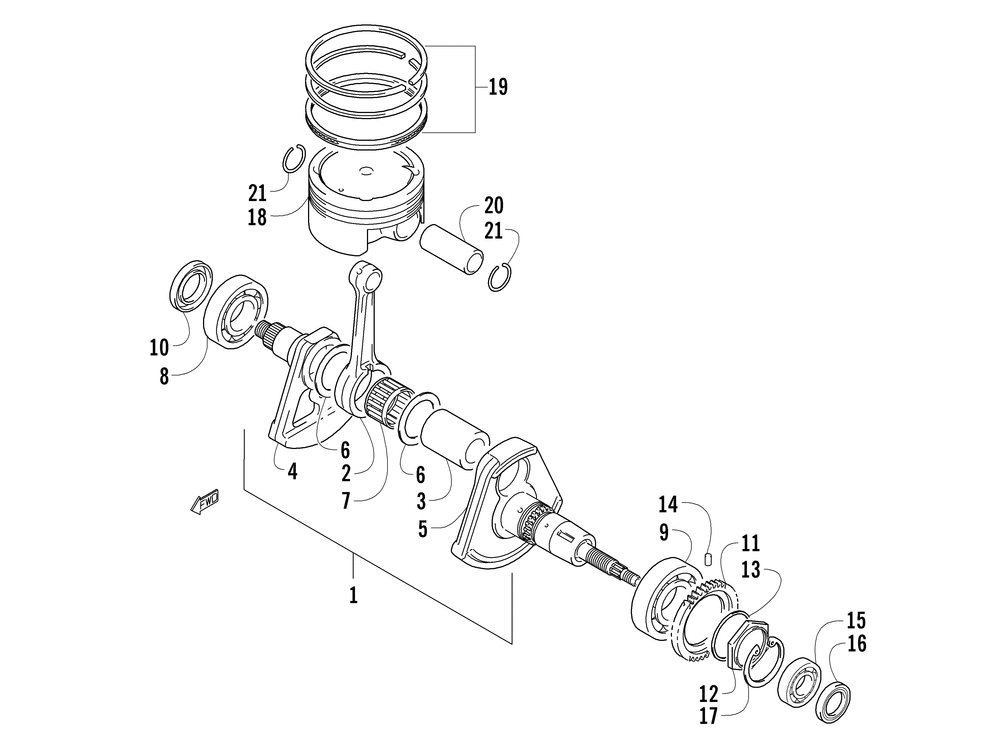

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKSHAFT ASSY (inc. 2-7) | 1 | |
| 2 | RODCONNECTING | 1 | |
| 3 | PINCRANKSHAFT | 1 | |
| 4 | CRANKSHAFT-RH | 1 | |
| 5 | CRANKSHAFT-LH | 1 | |
| 6 | WASHER | 2 | |
| 7 | BEARING | 1 | |
| 8 | BEARINGRIGHT | 1 | |
| 9 | BEARINGLEFT | 1 | |
| 10 | SEAL | 1 | |
| 11 | GEARCRANK BALANCER DRIVE | 1 | |
| 12 | NUT | 1 | |
| 13 | WASHER | 1 | |
| 14 | PINM5X8 (2 per pack) | 1 | |
| 15 | BEARINGM25 | 1 | |
| 16 | SEALOIL | 1 | |
| 17 | CIRCLIP | 1 | |
| 18 | PISTON | 1 | |
| 19 | RING SETPISTON | 1 | |
| 20 | PINPISTON | 1 | |
| 21 | CIRCLIPM23 | 2 |
