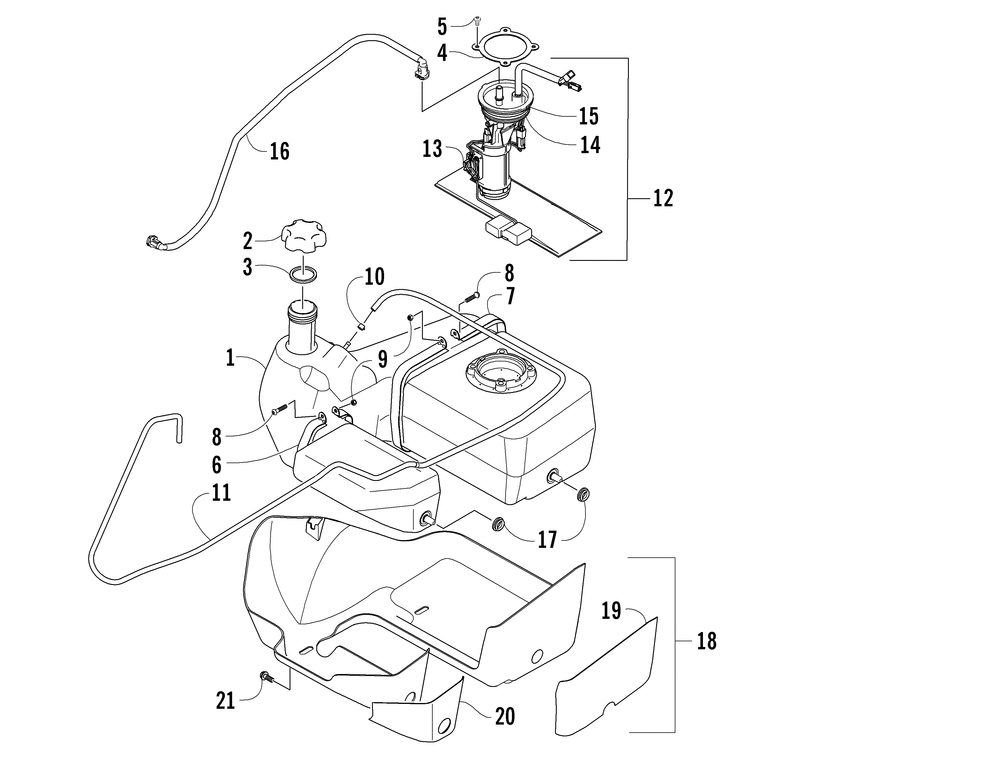

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TANKFUEL-ASSEMBLY(SP W/ STRAPS) (inc. 2-9 and one No. 15) | 1 | |
| 2 | CAPFUEL TANK (inc. 3) | 1 | |
| 3 | SEALGAS CAP | 1 | |
| 4 | MOUNTFUEL PUMP | 1 | |
| 5 | SCREWMACH-TSTRH M6X1.0X12 Z&Y (4 per pack) | 4 | |
| 6 | STRAPREAR-COATED | 1 | |
| 7 | STRAPFRONT-COATED | 1 | |
| 8 | SCREWMACH-TSTRH M6X1.0X50 Z&Y (4 per pack) | 2 | |
| 9 | NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) | 2 | |
| 10 | CLAMPSNAP-9 MM (5 per pack) | 1 | |
| 11 | HOSEFUEL-25 FT (0419-272 CTL) | 0 | |
| 12 | PUMPFUEL-ASSEMBLY (inc. 13-15) | 1 | |
| 13 | SENDERFUEL LEVEL-KIT (inc. one No. 14-15) | 1 | |
| 14 | SEALFUEL PUMP | 2 | |
| 15 | SEALFUEL PUMP | 2 | |
| 16 | HOSEFUEL-ASSEMBLY | 1 | |
| 17 | GROMMET FUEL TANK | 2 | |
| 18 | SHIELDFUEL TANK-ASSEMBLY (inc. 24-25) | 1 | |
| 19 | SHIELDHEAT | 1 | |
| 20 | SHIELDHEAT | 1 | |
| 21 | SCREWCAP-HFH M8X1.25X16 CL8.8 Z&Y (5 per pack) | 2 |
