Can-Am Outlander 800R EFI Outlander 800R EFI 10- Main Harness XTP Europe

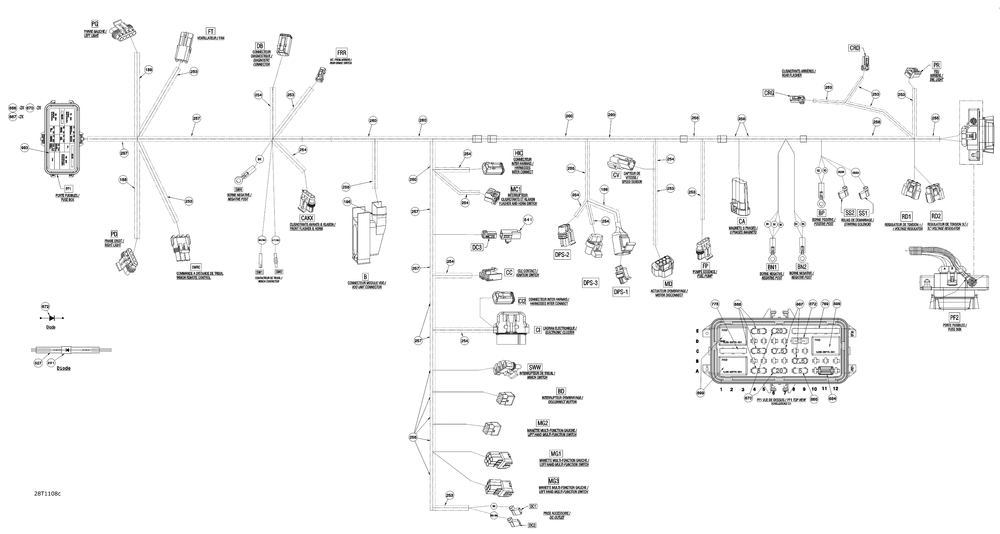

10- Main Harness XTP Europe
№ Наименование Примечание Кол-во
B FEMALE TERMINAL (5.000 per pack) 1
B MALE HOUSING 41 CIRCUITS 1
B LATCH 1
B LOCK 1
B COVER 1
B JOINT *SEAL 1
BD FEMALE TERMINAL (10.000 per pack) 1
BD JOINT *SEAL (10.000 per pack) 1
BD FEMALE HOUSING 6 CIRCUITS 1
BD CAP 1
BN1 TERMINAL 1
CA LOCK 1
CA LOGEMENT *HOUSING 1
CA Terminal Joint 1
CA Terminal 1
CAKX Female Housing 4 Circuits 1
CC FEMALE TERMINAL 1
CC LOCK 1
CC MALE HOUSING 6 CIRCUITS 1
CI Female Housing 24 Circuits 1
CI Retainer Block 1
CI Wire Seal 1
CI Female Terminal 1
CI Plug 1
CI Female Housing 1
CI Female Terminal 1
CI2 Female Terminal 1
CI2 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 1
CRD DIELECTRIC GREASE 150 G 0
CRD Female Terminal 1
CRD FEMALE HOUSING 2 CIRCUITS 1
CV MALE TERMINAL (10.000 per pack) 1
CV Male Lock, 3 Circuits 1
CV MALE HOUSING 1
DB Sealing Cap 1
DB Male Wedge 6 Circuits 1
DB MALE HOUSING 6 CIRCUITS 1
DC1 FEMALE TERMINAL (10.000 per pack) 1
DPS-1 Cap 1
DPS-1 Housing 1
DPS-1 Lock 1
DPS-1 Wire Seal 1
DPS-1 Female Terminal 1
DPS-1 Cap 1
DPS-2 FUSE HOLDER (2.000 per pack) 1
DPS-2 FEMALE TERMINAL 1
DPS-3 Wire Seal 1
DPS-3 Female Terminal 1
DPS-3 Housing 1
DPS-3 LOCK 1
FP Wire Seal 1
FP Female Terminal 1
FT Female Housing, 2 Circuits 1
FT Wire Seal 1
FT CLIP 1
HIC MALE HOUSING 4 CIRCUITS 1
MC1 LOGEMENT *HOUSING 1
MC1 TERMINAL 1
MD MALE HOUSING 4 CIRCUITS 1
MD Female Terminal 1
MG1 MALE TERMINAL (10.000 per pack) 1
MG1 WIRE SEAL (10.000 per pack) 1
MG1 MALE TERMINAL HOUSING 6 CIRCUITS 1
PD CONNECTOR 1
PF1 FOAM 1
PF1 JOINT DE FIL *SEAL 1
PF1 FUSE BOX BASE ASS 1
PF1 FUSE PULLER 1
PF1 FEMALE TERMINAL (5.000 per pack) 1
PF1 Female Terminal 1
PF1 FUSE COVER 1
PF1 FUSE LOGO 1
PF1 WIRE SEAL (5.000 per pack) 1
PF2 Hex. Elastic Flanged Nut M6 1
PF2 Tubing 13 mm  (10.000 per pack) 1
PF2 PROTECTOR CAP 1
PF2 TERMINAL 1
PF2 JOINT *SEAL 1
PF2 FUSE BOX Includes 1040 to 1040c 1
PR Female Housing, 3 Circuits 1
RD1 Female Terminal 1
RD1 HOUSING 3 CIRCUITS 1
RD1 Seal 1
RD1 CAP 1
RD2 HOUSING 3 CIRCUITS 1
SS1 FEMALE TERMINAL (10.000 per pack) 1
SW1 Insulated Sheath 1
SW1 Female Terminal 1
SW2 Insulated Sheath 1
SW2 Female Terminal 1
SW4 OPEN BARREL (10.000 per pack) 1
SWRC FEMALE TERMINAL (5.000 per pack) 1
SWRC MALE HOUSING 3 CIRCUITS 1
SWRC Wire Seal 1
1 MAIN HARNESS ASS Y Includes 1 to 1088 1
10 Fuse, 40 AMP 1
20 Fuse 30 amp. 2
188 TUBING 12 MM 0
196 Tie-Rap 142 mm 1
253 Tubing 6 mm  (3.000 per pack) 1
254 Tubing 9 mm (10.000 per pack) 1
256 Tubing 16 mm 1
257 TUBING 19 MM (10.000 per pack) 1
260 TUBING 22 MM 0
301 Diode 1
525 SHRINK TUBING 0
641 Male Housing, 2 Circuits 1
666 Little Fuse, 5 Amperes 1
667 Little Fuse 7.5 Amperes 1
670 Little Fuse, 20 Amperes 1
672 DIODE 1
769 BUS BAR 1
889 Seal 1
890 Terminal 1
899 RELAY 30 AMP. 1
921 Female Terminal 1
930 Wire Seal 1
961 MALE HOUSING TERMINAL 6 CIRCUITS 1
1002 Terminal 1
