Can-Am Outlander MAX 1000 EFI LTD Outlander MAX 1000 EFI LTD 09- Body And Accessories _31T1518

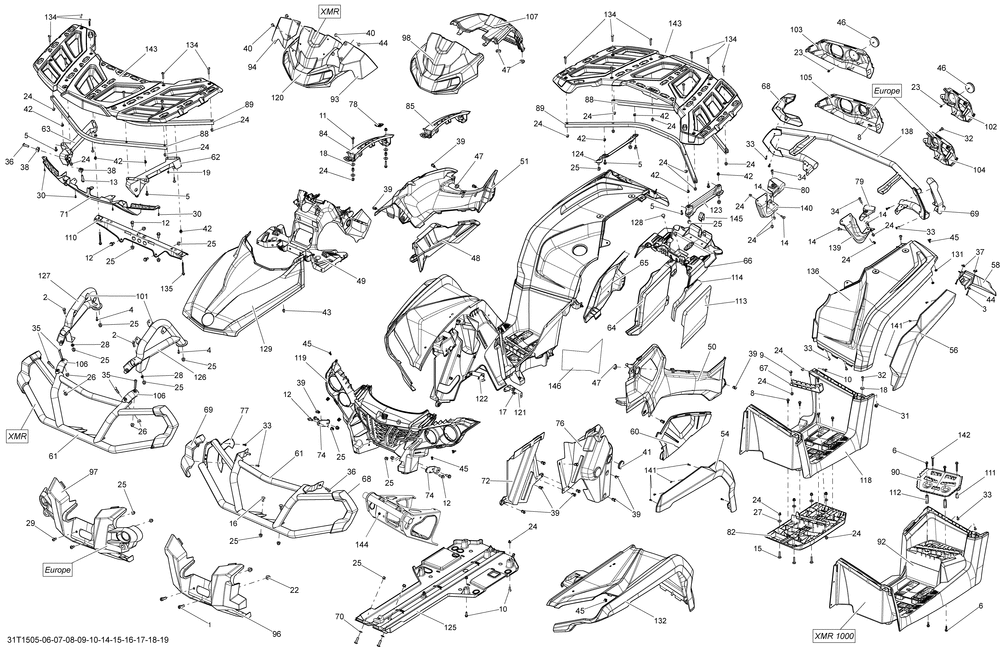

09- Body And Accessories _31T1518
№ Наименование Примечание Кол-во
1 SOCKET SCREW M10 X 30 (2.000 per pack) 2
3 HEX. CAP SCREW M4 X 25 4
4 Plastite Screw Type K-40 M4 X 25 2
5 Hex. Flanged Screw M6 X 16, Scotch Grip 6
8 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 10
10 HEX. FLANGED SCREW M6 X 20 (10.000 per pack) 16
11 HEX. FLANGED SCREW M6 X 30 (5.000 per pack) 2
12 HEX. FLANGED SCREW M8 X 20 (10.000 per pack) 8
13 HEX. FLANGED SCREW M8 X 35 Except XMR 2
14 CARRIAGE BOLT M6 X 20 Europe (10.000 per pack) 4
15 CARRIAGE BOLT M6 X 35 (10.000 per pack) 8
16 CARRIAGE BOLT M8 X 20 2
18 FLAT WASHER (10.000 per pack) 8
19 Hex. Elastic Stop Nut M6 4
22 HEX. FLANGED ELASTIC NUT M10 (4.000 per pack) 2
23 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
24 FLANGED ELASTIC NUT M6 (8.000 per pack) 40
25 Hex. Flanged Elastic Nut M8 0
27 Flat Washer 6 mm 8
30 SCREW K40 X 10 (5.000 per pack) 4
31 Panel Nut M6 X 1.0 4
32 Torx Screw M6 X 20 9
33 Torx Screw K50 X 16 8
34 TORX SCREW M6 X 30 STAINLESS 2
36 TORX SCREW M8 X 30 4
37 Extruded Panel Nut M4 X 0.7 4
38 Elastic Nut Housing M8 4
39 Tuflok Plastic Rivet 24
41 RUBBER COVER 2
42 INSERT Except XMR 8
43 Rubber Bumper 2
45 Edge Clip 8
46 Red Reflector 2
47 GROMMET 4
48 ENGINE COVER 1
49 DASH SUPPORT KIT 1
50 WHITE LH LATERAL PANEL White Model 1
50 DEEP PEWTER SATIN LH LATERAL PANEL Deep Pewter Model 1
51 WHITE RH LATERAL PANEL White Model 1
51 DEEP PEWTER SATIN RH LATERAL PANEL Deep Pewter Model 1
54 LH FRONT MUDGUARD Except XMR 1
54 RH FRONT MUDGUARD Except XMR 1
56 LH REAR MUDGUARD 1
56 RH REAR MUDGUARD 1
58 LH REAR MUDGUARD PART 2 1
58 RH REAR MUDGUARD PART 2 1
60 LH EXTENSION PANNEL 1
61 FRONT BUMPER P-XTP P-LTD P-XT except Black Model 1
62 LH SUPPORT ASS Y 1
63 RH SUPPORT ASS Y 1
64 LH EXTENSION PANEL P-XMR 1000 1
65 RH EXTENSION PANEL P-XMR 1000 1
66 SEAT HOLDER MAX Model 1
68 CAPUCHON *CAP 2
69 CAPUCHON *CAP 2
70 RING 2
71 LUGAGE RACK MOULDING Except XMR 1
72 LH INNER FENDER 1
72 RH INNER FENDER 1
74 LOWER FENDER SUPPORT 2
76 RH INNER FENDER 1
76 LH INNER FENDER 1
77 BRACKET COVER 4
79 LH BRACKET 1
80 RH BRACKET 1
82 MARCHEPIED DR. *RH.FOOTBOARD 1
82 MARCHEPIED GA. *LH.FOOTBOARD 1
84 INDICATEUR *INDICATOR Engine 1000R Except Europe Model Except XMR 1
88 TUBE *TUBE Except XMR 2
89 TUBE *TUBE Except XMR 2
96 PLAQUE *PLATE Except Europe Model 1
97 PLAQUE *PLATE Europe Model 1
98 GAGE SUPPORT Package XTP LTD 1
102 LH REAR FACIA Except Europe Model 1
103 RH REAR FACIA Except Europe Model 1
107 CONSOLE CAP KIT North America 1
110 CARGO RACK CENTER SUPPORT Except XMR 1
113 HEAT SHIELD MAX Model 1
114 HEAT SHIELD MAX Model 1
118 RH FOOTBOARD MAX Max Model 1
118 LH FOOTBOARD MAX Max Model 1
119 FRONT FACIA 1
123 LH SUPPORT 1
124 RH SUPPORT 1
125 PROTECTIVE PLATE KIT 1
128 Rubber Stopper 3
129 WHITE HOOD KIT White Model North America 1
129 BRUSH ALUMINIUM HOOD ASS Y Brushed Aluminum Model Except North America 1
129 DEEP PEWTER HOOD KIT Deep Pewter Model North america 1
131 Push Nut 4
132 WHITE RH FRONT FENDER KIT White Max Model North America 1
132 WHITE LH FRONT FENDER KIT White Max Model North America 1
132 DEEP PEWTER LH FRONT FENDER KIT Deep Pewter Model North america 1
132 DEEP PEWTER LH FRONT FENDER KIT Deep Pewter Model International 1
132 DEEP PEWTER RH FRONT FENDER KIT Deep Pewter Model North america 1
132 DEEP PEWTER RH FRONT FENDER ASS Y Deep Pewter Model International 1
134 TORX SCREW M6 X 35 BZN Model Jet Black 16
135 Hex. Flanged Screw M6x70 Scotch Grip 2
136 WHITE LH REAR FENDER KIT White Model Out-Max North America 1
136 WHITE RH REAR FENDER KIT Model-White North America 1
136 DEEP PEWTER LH REAR FENDER KIT Deep Pewter Model North america 1
136 DEEP PEWTER LH REAR FENDER ASS Y Deep Pewter Model International 1
136 DEEP PEWTER SATIN RH REAR FENDER KIT Model-Deep Pewter Satin North America 1
136 DEEP PEWTER RH REAR FENDER KIT Model-Deep Pewter Satin Europe 1
136 DEEP PEWTER LH REAR FENDER KIT Model-Deep Pewter Satin Europe 1
138 BUMPER P-XTP P-LTD 1
139 LH REAR BRACKET Package Hunter 1
140 RH REAR BRACKET 1
141 HEX. SCREW K40 X 13 18
143 REAR RACK KIT North America 2
143 ENS RACK ARR *REAR RACK KIT Except North America 2
144 BLACK FRONT BUMPER SUPPORT 1
145 ROD CAP Package XMR Engine 1000R 1
