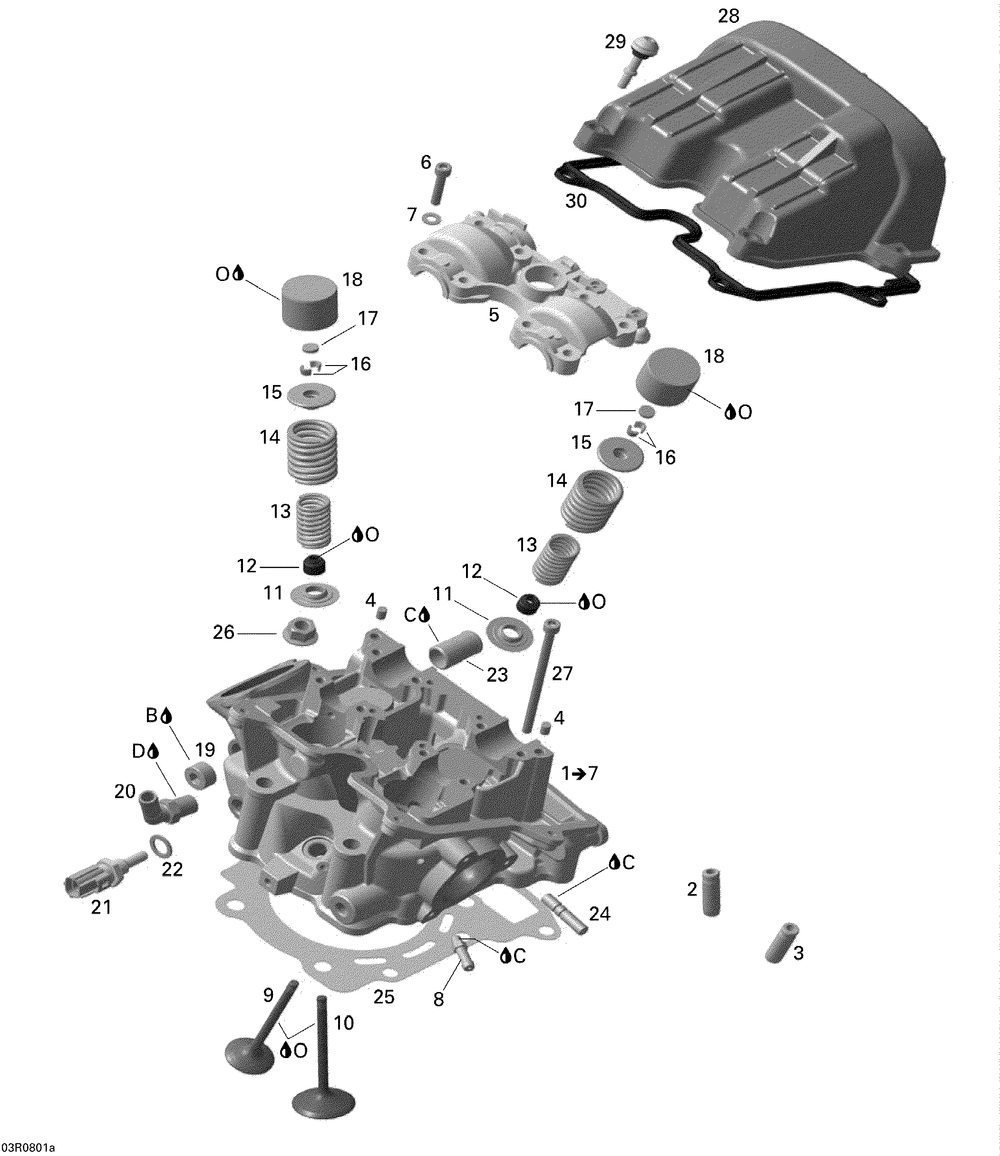

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| B | LOCTITE 243 10 ML | 0 | |
| C | LOCTITE 648 10 ML | 0 | |
| D | LOCTITE 518 50 ML | 0 | |
| 1 | CYLINDER HEAD ASS Y (Includes 1 to 7 ) | 1 | |
| 2 | Valve Guide Exhaust | 2 | |
| 3 | Valve Guide Intake | 2 | |
| 4 | Center Pin | 2 | |
| 6 | Socket Head Screw M6 X 30 | 8 | |
| 7 | Flat Washer | 8 | |
| 8 | HOSE NIPPLE | 1 | |
| 9 | EXHAUST VALVE 31 MM | 2 | |
| 10 | Intake Valve 38 mm | 2 | |
| 11 | VALVE SPRING SHIM | 4 | |
| 12 | Seal | 4 | |
| 13 | Valve Spring Inner | 4 | |
| 14 | Valve Spring Outer | 4 | |
| 15 | Valve Spring Retainer | 4 | |
| 16 | Valve Cotter | 8 | |
| 17 | Shim 2.45 | 0 | |
| 17 | Shim 2.5 | 0 | |
| 17 | Shim 2.55 | 0 | |
| 17 | Shim 2.6 | 0 | |
| 17 | Shim 2.65 | 0 | |
| 17 | Shim 2.7 | 0 | |
| 17 | Shim 2.75 | 0 | |
| 17 | Shim 2.8 | 0 | |
| 17 | Shim 2.85 | 0 | |
| 17 | Shim 2.9 | 0 | |
| 17 | Shim 2.95 | 0 | |
| 17 | Shim 3.0 | 0 | |
| 17 | Shim 2.35 | 0 | |
| 17 | Shim 2.3 | 0 | |
| 17 | Shim 2.4 | 0 | |
| 17 | Shim 3.05 | 0 | |
| 18 | Tappet Valve | 4 | |
| 19 | Plug Screw M18 X 1.5 | 1 | |
| 20 | ANGULAR TUBE | 1 | |
| 21 | Temperature Sensor | 1 | |
| 22 | Copper Washer | 1 | |
| 23 | Elbow Fitting | 1 | |
| 24 | GOUJON M8X16/20*STUD-M8X16/20 | 3 | |
| 25 | Cylinder Head Gasket | 1 | |
| 26 | Hex. Flanged Nut M10 | 4 | |
| 27 | Socket Head Screw M6 X 100 | 2 | |
| 28 | VALVE COVER | 1 | |
| 29 | Distance Screw | 5 | |
| 30 | Valve Cover Gasket | 1 |
