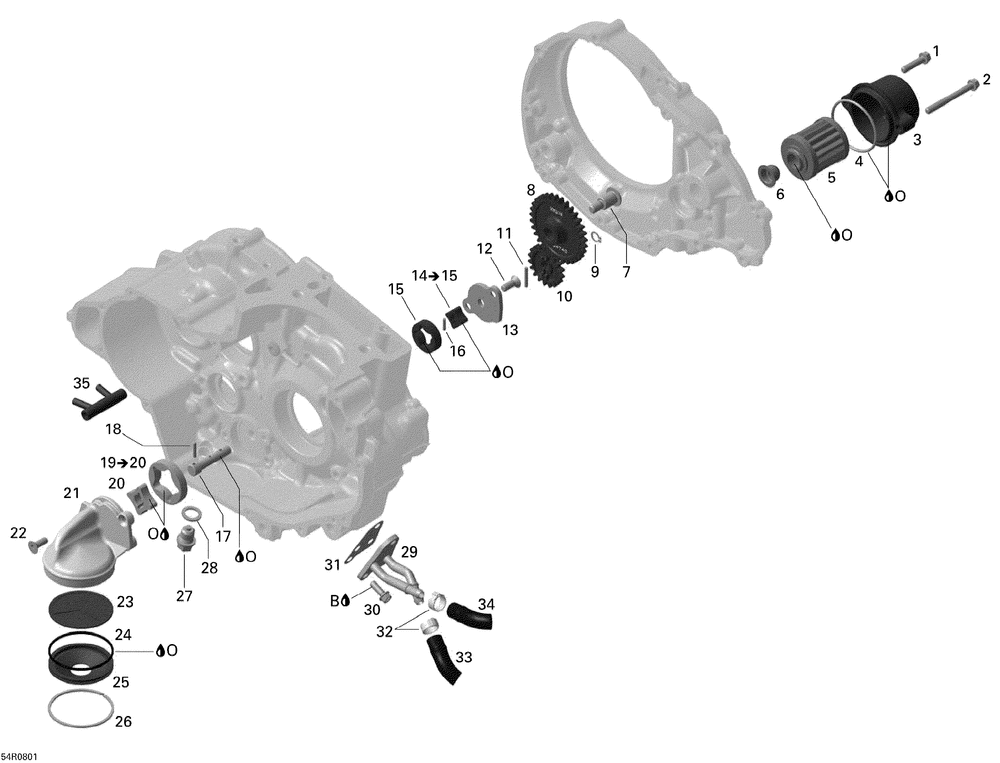

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| B | LOCTITE 648 10 ML | 0 | |
| 1 | FLANGED TORX SCREW M6 X 25 (5.000 per pack) | 1 | |
| 2 | Socket Head Screw M6 X 55 | 1 | |
| 3 | OIL FILTER COVER | 1 | |
| 4 | O-RING | 1 | |
| 5 | Фильтр масляный | 1 | |
| 6 | SLEEVE | 1 | |
| 7 | BEARING BOLT M8 | 1 | |
| 8 | IDLE GEAR 31 TEETH | 1 | |
| 9 | RETAINING RING | 1 | |
| 10 | OIL PUMP GEAR 18 TEETH | 1 | |
| 11 | NEEDLE PIN | 1 | |
| 12 | COUNTERSUNK SCREW M6 X 16 | 2 | |
| 13 | OIL PUMP COVER | 1 | |
| 14 | INNER AND OUTER ROTOR ASS Y (Includes 14 to 15 ) | 1 | |
| 16 | NEEDLE PIN | 1 | |
| 17 | OIL PUMP SHAFT | 1 | |
| 18 | NEEDLE PIN | 1 | |
| 19 | INNER AND OUTER ROTOR ASS Y (Includes 19 to 20 ) | 1 | |
| 21 | OIL SIEVE COVER | 1 | |
| 22 | SCREW M6 X 20 | 2 | |
| 23 | OIL SIEVE | 1 | |
| 24 | O-RING | 1 | |
| 25 | OIL COLLECTOR | 1 | |
| 26 | SNAP RING | 1 | |
| 27 | MAGNETIC DRAIN PLUG | 1 | |
| 28 | Copper Washer | 1 | |
| 29 | CONNECTION COVER | 1 | |
| 30 | FLANGED TORX SCREW M6 X 20 | 2 | |
| 31 | JOINT ETANCHE *GASKET | 1 | |
| 32 | CLAMP | 2 | |
| 33 | OIL HOSE | 1 | |
| 34 | OIL HOSE | 1 | |
| 35 | OIL TUBE | 1 |
