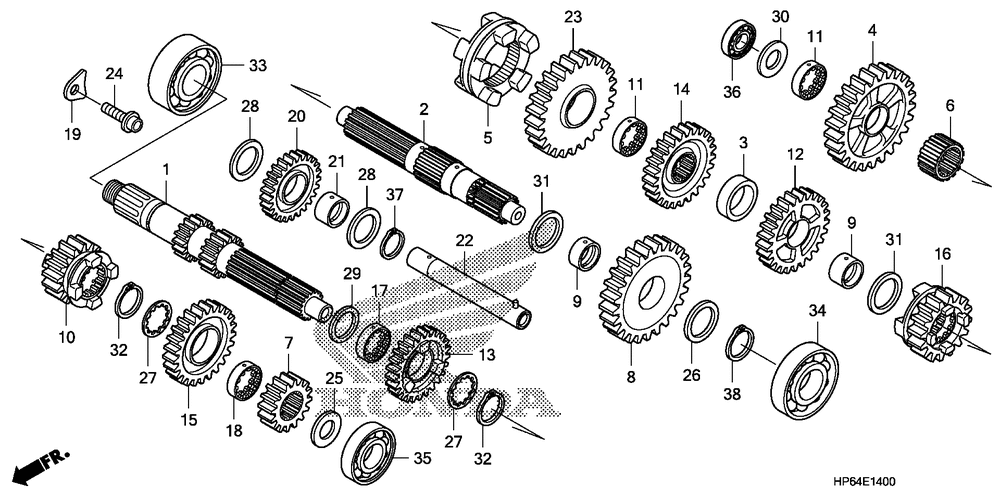

№ | Наименование | Примечание | Кол-во |
---|---|---|---|
001 | MAINSHAFT (12T/12T) | 1 | |
002 | COUNTERSHAFT | 1 | |
003 | COLLAR COUNTERSHAFT | 1 | |
004 | GEAR (38T) | 1 | |
005 | SHIFTER | 1 | |
006 | COLLAR SPLINE | 1 | |
007 | GEAR (16T) | 1 | |
008 | GEAR (35T) | 1 | |
009 | COLLAR (28X31X12) | 2 | |
010 | GEAR (19T) | 1 | |
011 | COLR SPLINE (28X12) | 2 | |
012 | GEAR (31T) | 1 | |
013 | GEAR (22T) | 1 | |
014 | GEAR (28T) | 1 | |
015 | GEAR (25T) | 1 | |
016 | GEAR (26T) | 1 | |
017 | COLLAR (25X28X11) | 1 | |
018 | COLLAR (25X28X10.8) | 1 | |
019 | PLATE A | 1 | |
020 | GEAR (21T) | 1 | |
021 | COLLAR (16X19X11) | 1 | |
022 | SHAFT REVERSE IDLE | 1 | |
023 | GEAR (33T) | 1 | |
024 | BOLT (6X14) | 1 | |
025 | WASHER, SPECIAL (17MM) | 1 | |
026 | WASHER (26MM) | 1 | |
027 | WASHER (25X31X1.5) | 2 | |
028 | WASHER, THRUST (16MM) | 2 | |
029 | WASHER (25MM) | 1 | |
030 | WASHER, THRUST (20MM) | 1 | |
031 | WASHER (28MM) | 2 | |
032 | CIRCLIP (25MM) | 2 | |
033 | BEARING (5205A) | 1 | |
034 | BEARING (26X64X16) | 1 | |
035 | BEARING (6303SP) | 1 | |
036 | BEARING (6004) | 1 | |
037 | CIRCLIP (16MM) | 1 | |
038 | CIRCLIP (26MM) | 1 |
