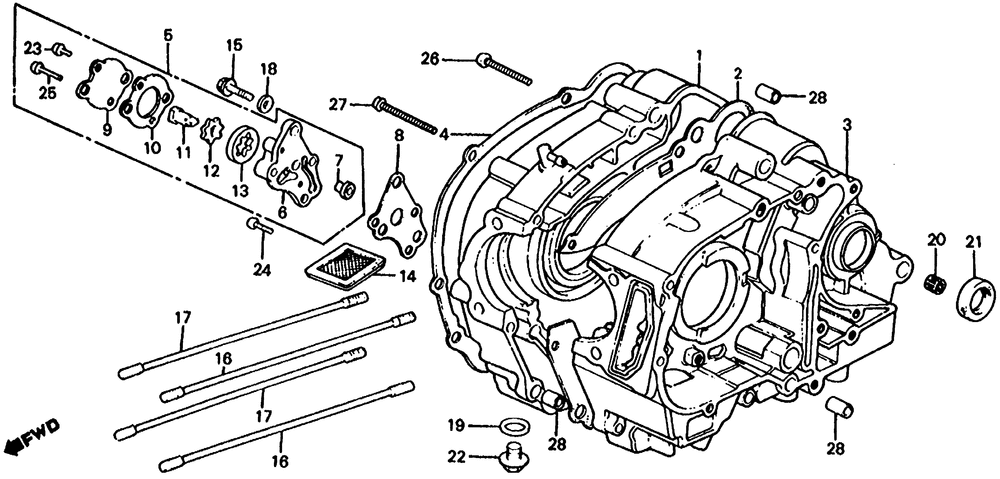

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | CRANKCASE R. | 0 | |
| 002 | GASKET CRANKCASE | 0 | |
| 003 | CRANKCASE L. | 0 | |
| 004 | GASKET R. | 1 | |
| 004 | GASKET R. | 1 | |
| 004 | GASKET R. | 0 | |
| 004 | GASKET R. | 1 | |
| 005 | PUMP ASSY. OIL | 0 | |
| 006 | BODY OIL PUMP | 0 | |
| 007 | KNOCK OIL PUMP | 0 | |
| 008 | GSKT OIL PUMP BODY | 0 | |
| 009 | COVER, OIL PUMP SIDE | 0 | |
| 010 | GSKT, OIL PUMP COVER | 1 | |
| 011 | DRIVESHAFT, OIL PUMP | 1 | |
| 012 | ROTOR OIL PUMP | 0 | |
| 013 | ROTOR OIL PUMP | 0 | |
| 014 | SCREEN, OIL FILTER | 1 | |
| 015 | BOLT, OIL JOINT | 1 | |
| 016 | BOLT A CYL STUD | 2 | |
| 017 | BOLT B, CYL STUD | 0 | |
| 018 | WASHER | 0 | |
| 019 | WASHER DRAIN (12MM) | 1 | |
| 019 | GASKET, DRAIN PETCOCK (12.5X20) | 0 | |
| 020 | BEARING (12X16X10) | 0 | |
| 021 | OIL SEAL (27X37X7) | 1 | |
| 022 | BOLT, DRAIN (12MM) | 1 | |
| 023 | SCREW, PAN (5X12) | 2 | |
| 025 | SCREW PAN (6X25) | 2 | |
| 026 | Винт (6х40) | 7 | |
| 027 | SCREW, PAN (6X45) | 2 | |
| 028 | PIN, DOWEL (10X16) | 3 |
