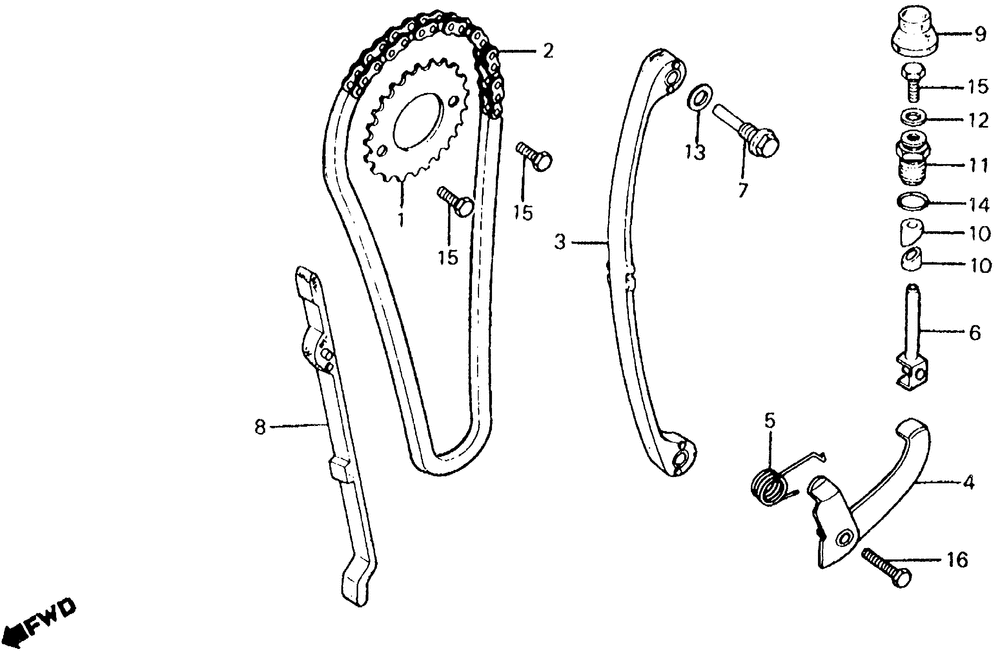

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | SPROCKET CAM (32T) | 1 | |
| 002 | CHAIN, CAM (100L) | 1 | |
| 003 | TENSIONER CAM CHAIN | 1 | |
| 004 | ARM | 1 | |
| 005 | SPRING | 1 | |
| 006 | BAR | 1 | |
| 007 | BOLT, CAM CHAIN TENSIONER PIVOT | 0 | |
| 008 | GUIDE CAM CHAIN | 1 | |
| 009 | CAP, TENSIONER ADJ. | 1 | |
| 010 | COLLAR | 2 | |
| 011 | BOLT, SPECIAL (16MM) | 1 | |
| 012 | Шайба металлическая | 1 | |
| 013 | WASHER (8MM) | 1 | |
| 014 | O-RING (13X2.5) | 1 | |
| 015 | BOLT, HEX. (6X10) | 3 | |
| 016 | BOLT, HEX. (6X20) | 1 |
