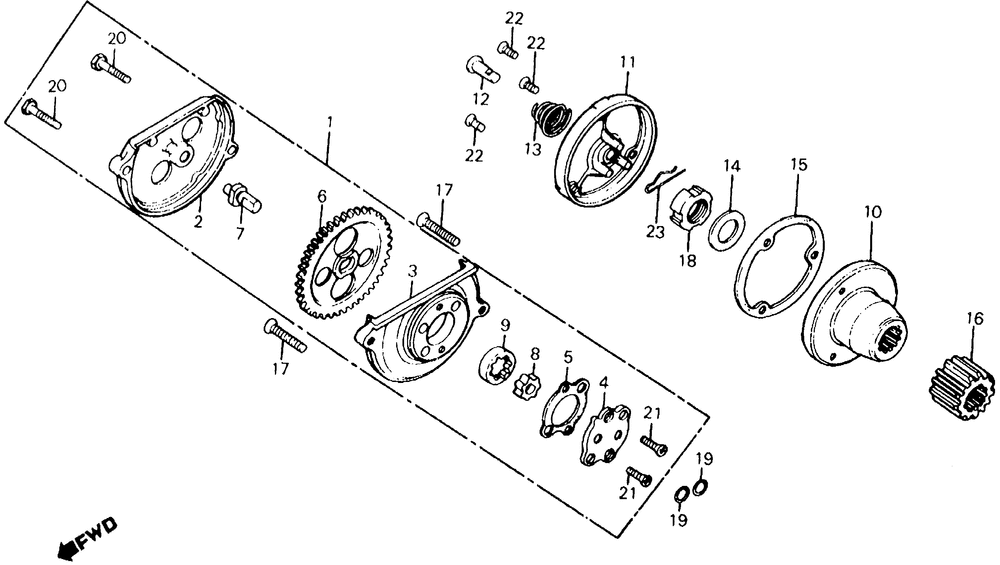

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | PUMP ASSY. OIL | 1 | |
| 001 | PUMP ASSY. OIL | 1 | |
| 002 | COVER, OIL PUMP GEAR | 0 | |
| 003 | BODY, OIL PUMP | 0 | |
| 004 | PLATE, OIL PUMP | 0 | |
| 005 | GASKET, OIL PUMP | 0 | |
| 006 | GEAR (37T) | 0 | |
| 006 | GEAR (37T) | 1 | |
| 007 | SHAFT OIL PUMP (TO BE USED ONLY WITH OIL PUMP ASSY. P/N 15100-437-672. | 0 | |
| 008 | ROTOR OIL PUMP (TO BE USED ONLY WITH OIL PUMP ASSY. P/N 15100-437-672. | 0 | |
| 009 | ROTOR OIL PUMP (TO BE USED ONLY WITH OIL PUMP ASSY. P/N 15100-437-672. | 0 | |
| 010 | ROTOR OIL FILTER | 0 | |
| 011 | CAP | 1 | |
| 012 | THROUGH OIL | 1 | |
| 012 | THROUGH, OIL | 1 | |
| 013 | SPRING, OIL THROUGH | 1 | |
| 014 | WASHER | 0 | |
| 015 | GSKT OIL FILTER CAP | 0 | |
| 015 | GSKT OIL FILTER CAP | 1 | |
| 015 | GSKT, OIL FILTER CAP | 1 | |
| 016 | GEAR (21T) | 1 | |
| 017 | SCREW, FLAT (6X30) | 2 | |
| 018 | ﾅﾂﾄ,ﾛﾂｸ 16MM | 1 | |
| 018 | NUT, LOCK (16MM) | 1 | |
| 019 | O-RING (9.4X2.4) | 2 | |
| 020 | BOLT HEX. (5X20) | 0 | |
| 020 | BOLT (5X20) | 0 | |
| 021 | SCREW, FLAT (4X12) | 0 | |
| 022 | SCREW, OVAL (5X12) | 3 | |
| 023 | PIN, LOCK (8MM) | 1 |
