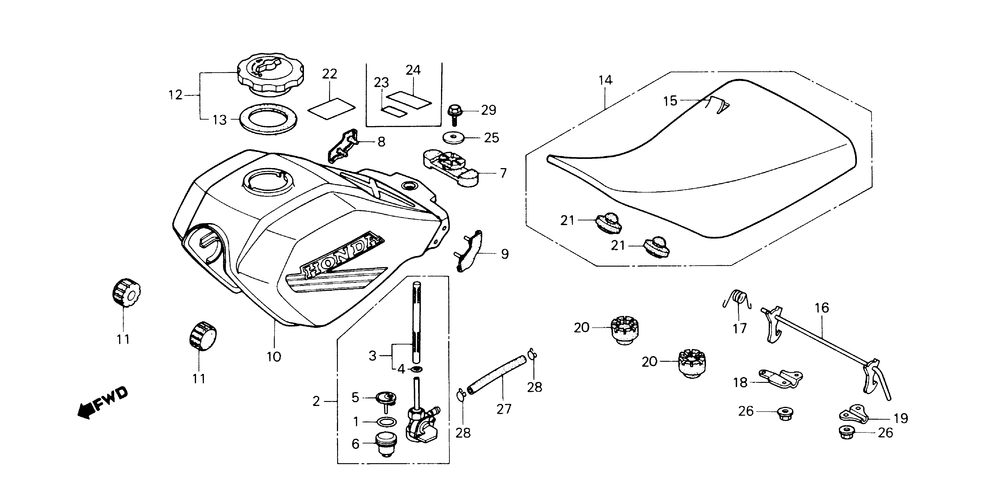

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | O-RING | 1 | |
| 002 | PETCOCK ASSY. | 1 | |
| 003 | SCREEN SET | 1 | |
| 004 | O-RING (10.6X1.3) | 1 | |
| 004 | O-RING1.3X10.6 | 1 | |
| 005 | FILTER, CUP | 1 | |
| 006 | CUP, FUEL STRAINER | 1 | |
| 007 | RUBBER RR. TANK | 1 | |
| 008 | RUBBER R. TANK | 0 | |
| 009 | RUBBER L. TANK | 0 | |
| 010 | TANK COMP. FUEL *R- (PASSION RED) | 0 | |
| 011 | CUSHION FR. TANK | 2 | |
| 012 | CAP COMP.FUEL TA | 1 | |
| 012 | CAP COMP.FUEL TA | 1 | |
| 012 | CAP COMP.FUEL TA | 1 | |
| 012 | CAP COMP.FUEL TA | 1 | |
| 012 | CAP COMP.FUEL TA | 1 | |
| 012 | CAP COMP.FUEL TA | 1 | |
| 012 | CAP COMP.FUEL TA | 1 | |
| 013 | GASKET | 1 | |
| 014 | SEAT | 0 | |
| 015 | COVER SEAT | 0 | |
| 016 | LEVER SEAT LOCK | 0 | |
| 017 | SPRING SEAT LOCK | 0 | |
| 018 | BRACKET R. | 0 | |
| 019 | BRACKET L. | 0 | |
| 020 | CUSHION | 2 | |
| 021 | RUBBER SEAT STOPPER | 2 | |
| 023 | LABEL USE CAUTION | 0 | |
| 024 | MARK DRIVE CAUTION | 0 | |
| 025 | WASHER EX. DUCT | 0 | |
| 026 | NUT, FLANGE (6MM) | 4 | |
| 027 | BULK HOSE (7.5X8000) | 1 | |
| 028 | CLIP, TUBE (B12) | 2 | |
| 029 | BOLT, FLANGE (6X12) | 1 |
