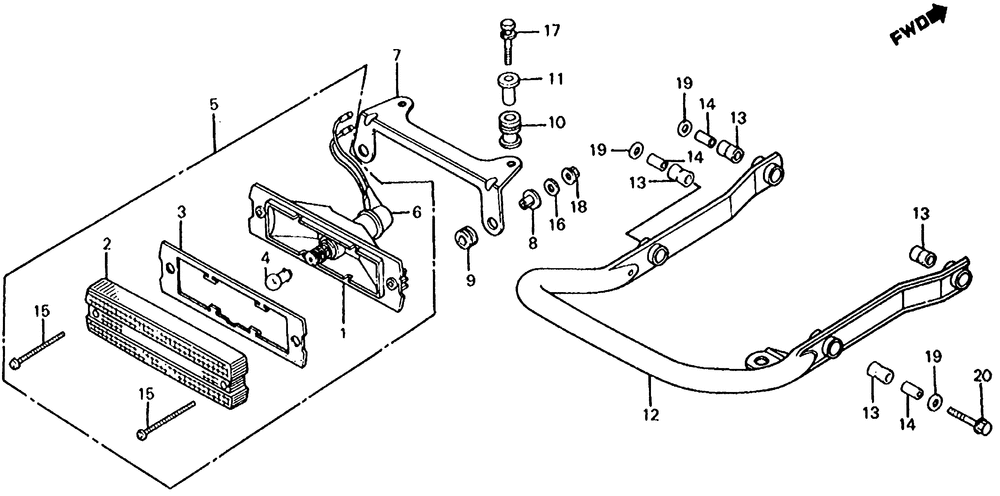

№ | Наименование | Примечание | Кол-во |
---|---|---|---|
001 | HOUSING TAILLIGHT | 1 | |
002 | LENS TAILLIGHT | 0 | |
003 | GASKET TAILLIGHT | 1 | |
004 | BULB (12V5W) | 1 | |
004 | BULB (12V5W) | 1 | |
005 | TAILLIGHT ASSY. | 1 | |
006 | COVER SOCKET | 0 | |
007 | BRACKET TAILLIGHT | 0 | |
008 | COLLAR | 2 | |
009 | RUBBER | 2 | |
010 | RUB TAILLIGHT MOUNT | 0 | |
011 | COLLAR | 0 | |
012 | PIPE CARRIER | 0 | |
013 | RUBBER | 0 | |
014 | COLLAR | 0 | |
015 | SCREW PAN (4X50) | 2 | |
016 | WASHER (4MM) | 0 | |
017 | BOLT-WASHER (6X35) | 2 | |
017 | BOLT-WASHER (6X35) | 2 | |
018 | NUT, FLANGE (4MM) | 2 | |
019 | WASHER, PLAIN (8MM) | 3 | |
020 | BOLT, FLANGE (8X32) | 1 | |
020 | BOLT FLANGE (8X32) | 1 |
