CABLES@SWITCHES@CONTROL LEVERS

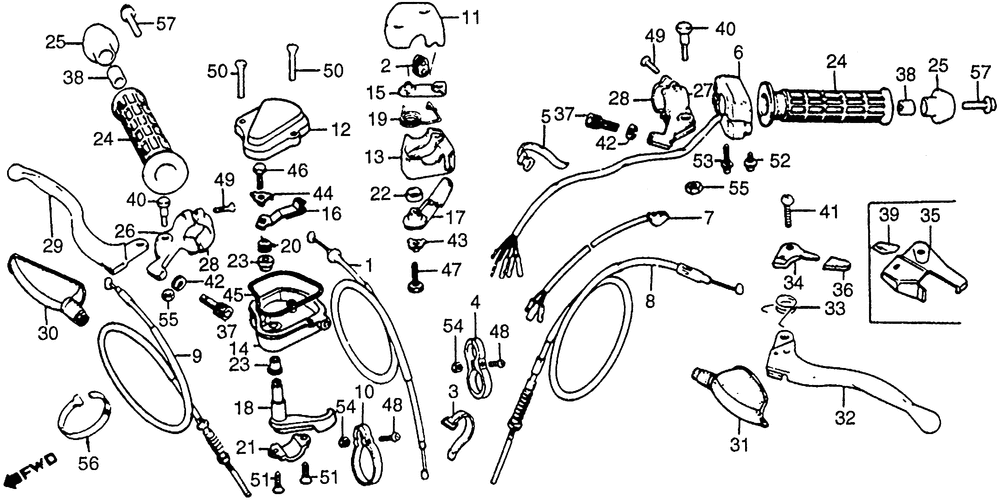

Honda ATC200M ATC200M CABLES@SWITCHES@CONTROL LEVERS

№	Наименование	Кол-во
001	CABLE THROTTLE	1
001	CABLE THROTTLE	1
003	BAND THROTTLE CABLE	0
004	GUIDE	0
005	BAND B1, WIRE	2
006	SWITCH ASSY.	0
007	SWITCH STARTING	1
008	CABLE HAND BRAKE	0
009	CABLE FR. BRAKE	1
010	GUIDE BRAKE CABLE	0
012	COVER THROTTLE	0
014	CASE THROTTLE	1
016	ARM THROTTLE	0
018	CONTROL LEVER	0
020	SPRING	0
021	HLDR THROTTLE CASE	1
023	BUSH THROTTLE LEVER	0
024	GRIP HANDLE	2
025	GUARD HANDLE END	2
026	BRACKET R.	0
027	BRACKET	0
028	HLDR, LEVER BRACKET	2
029	LEVER R. HANDLEBAR	0
030	CVR R. HANDLE LEVER	0
031	COVER L. HANDLEBAR	0
032	LEVER L. HANDLEBAR	1
033	SPRING	1
034	LEVER PARKING LOCK	0
034	LEVER PARKING LOCK	1
036	CAP PARKING LEVER	1
036	CAP PARKING LEVER	1
037	BOLT WIRE ADJUSTING	2
038	COLLAR	2
040	BOLT	2
041	SCREW	0
042	NUT, FIXING	2
042	NUT, FIXING	2
044	WASHER LOCK (5MM)	1
045	O-RING	0
046	BOLT, HEX. (5X12)	1
046	BOLT, HEX. (5X12)	1
048	SCREW, PAN (4X20)	2
048	SCREW PAN (4X20)	2
049	SCREW, PAN (5X18)	4
050	SCREW, PAN (4X10)	2
051	SCREW, OVAL (6X25)	2
052	SCREW-WASHER (5X20)	1
053	SCREW-WASHER (5X40) (NOT AVAILABLE)	1
054	NUT, HEX. (4MM)	2
055	NUT, HEX. (6MM)	2
056	BAND B1 WIRE	1
057	BOLT FLANGE (6X25)	2
