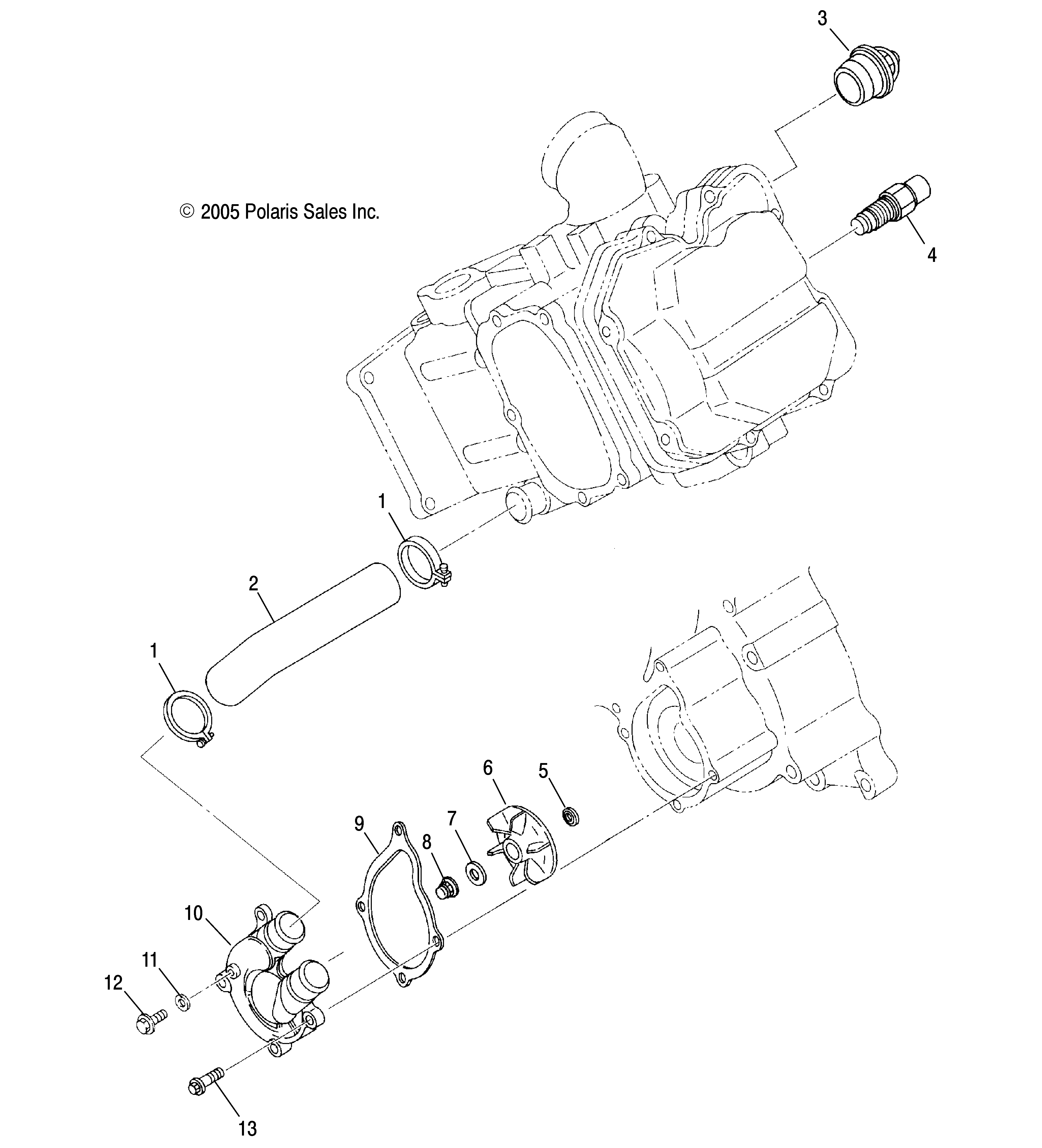

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Clamp Hose | 2 | |
| 2 | Hose Main | 1 | |
| 3 | Thermostat | 1 | |
| 4 | Sensor Water Temp | 1 | |
| 5 | Washer Seal | 1 | |
| 6 | Impeller | 1 | |
| 7 | Washer Flat | 1 | |
| 8 | Nut Self Lock | 1 | |
| 9 | Gasket Water Pump | 1 | |
| 10 | Cover Water Pump | 1 | |
| 11 | Gasket Alum | 1 | |
| 12 | Bolt Flange | 1 | |
| 13 | Bolt Flange | 4 |
