Polaris A06MH50AA SPORTSMAN 500 HO A06MH50AA SPORTSMAN 500 HO STORAGE FRONT and BUMPER MOUNTING - A06MH50AA / AB / AD / AF (4999200099920009A06)

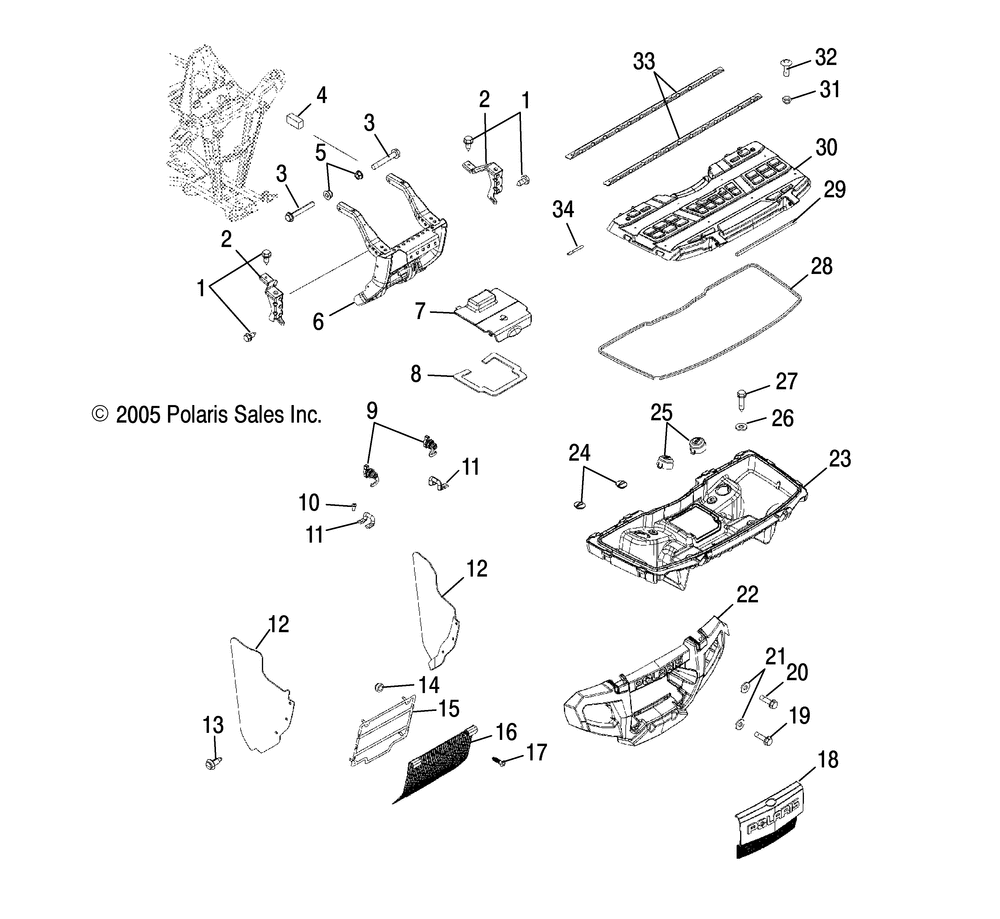

STORAGE FRONT and BUMPER MOUNTING - A06MH50AA / AB / AD / AF (4999200099920009A06)
№ Наименование Примечание Кол-во
1 SCREW(10) * (10 per pack) 8
2 SUPPORTRACKLHBLK 1
2 SUPPORTRACKRHBLK 1
3 BOLT-5/16-18X1-3/4 HXFLNG GR5 2
4 PLUG FRAME 1
5 NUTFLANGE 2
6 WELD-BRUSHGUARDBLK 1
7 COVER-RADIATOR 1
7 COVER-RADIATOR FRONT 1
8 SEAL-RADIATORCOVER 1
9 LATCH-1/4 TURNDETENTRH 1
9 LATCH-1/4 TURNDETENTLH 1
10 SCREW(10) (10 per pack) 4
11 BRKT-LATCHBOX 2
12 SHIELD-RADIATORSIDELH 1
12 SHIELD-RADIATORSIDERH ** 1
13 RIVET-TUFLOK.315-.325X.787 (50 (50 per pack) 6
14 GROMMET-RUBBERMOUNT25" 4
15 COVER-RADIATORMESHLG 1
16 GRILL-BRUSH GUARDBLK 1
17 SCR-tahos_8X1 PN-PH H/L-Y 4
18 PANEL-BUMPERFRONTBLK 1
19 SCR-5/16-18X3/4 HX/W-TAP/R-M 2
20 BOLT-5/16-18X2.25 FLG TAP/R-M 2
21 WASHER-.327X.875X.090FL-M 4
22 ASM-BUMPERFRONTBLK [Incl. Reflector Decal][If built before 9/01/06] 1
23 KIT-ASM-LOWER BOXFRONT 1
24 PLUG-COMPARTMENT 3
25 COVER-STRUT 2
26 WASHERFLAT 4
27 SCREW(10) (10 per pack) 4
28 SEAL 1
29 SEAL-LID/BUMPER 1
30 COVER ASMFRONTSERVICE [Incl. 56 and Warning Decal] 1
31 NUT-NYLOK(10) (10 per pack) 8
32 SCR-1/4-20X1.25 TR/TX-M-GR.5 8
33 CHANNEL-LIDFRONTFLTBLKWRKL 2
34 PIN-HINGEFRONT 2
