Polaris A05MH59AK SPORTSMAN 600 A05MH59AK SPORTSMAN 600 FRONT STORAGE and BUMPER MOUNTING - A05MH59AK / AN (4994199419A07)

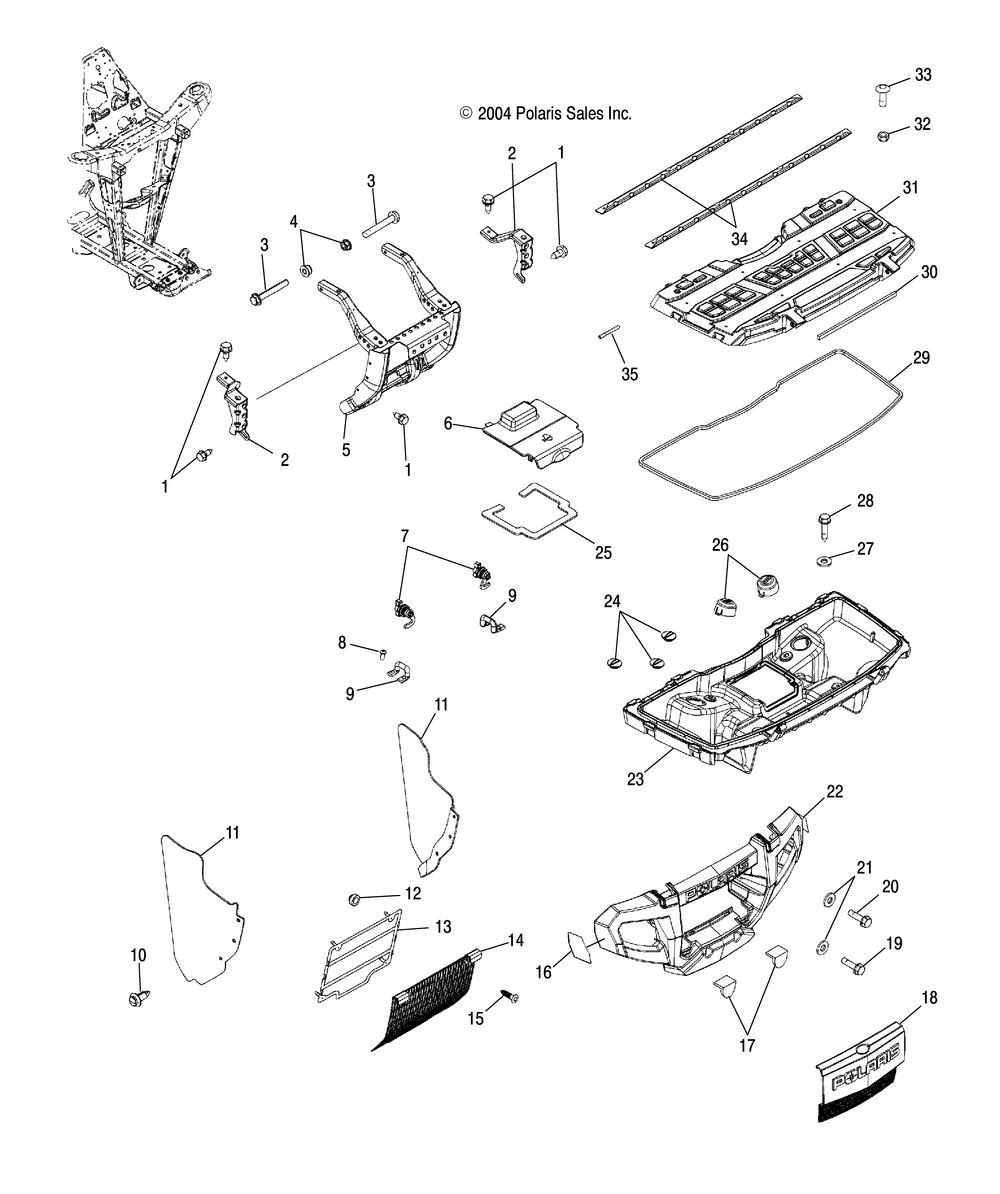

FRONT STORAGE and BUMPER MOUNTING - A05MH59AK / AN (4994199419A07)
№ Наименование Примечание Кол-во
1 SCREW(10) * (10 per pack) 6
2 SUPPORTRACKLHBLK 1
2 SUPPORTRACKRHBLK 1
3 BOLT-5/16-18X1-3/4 HXFLNG GR5 2
4 NUTFLANGE 2
5 WELD-BRUSHGUARDTWINBLK 1
6 COVER-RADIATOR 1
7 LATCH-1/4 TURNDETENTLH 1
7 LATCH-1/4 TURNDETENTRH 1
8 SCREW(10) (10 per pack) 4
9 BRKT-LATCHBOX 2
10 RIVET-TUFLOK.315-.325X.787 (50 (50 per pack) 6
11 SHIELD-RADIATORSIDELH 1
11 SHIELD-RADIATORSIDERH ** 1
12 GROMMET-RUBBERMOUNT25" 4
13 COVER-RADIATORMESHLG 1
14 GRILL-BRUSH GUARDBLK 1
15 SCR-tahos_8X1 PN-PH H/L-Y 4
16 DECAL-AMBER REFLECTORLH 1
16 DECAL-AMBER REFLECTORRH 1
17 COVER-BUMPER ACCRH (If built before 11/22/04) 1
17 COVER-BUMPER ACCLH (If built before 11/22/04) 1
18 PANEL-BUMPERFRONTBLK 1
19 SCR-5/16-18X3/4 HX/W-TAP/R-M 2
20 BOLT-5/16-18X2.25 FLG TAP/R-M 2
21 WASHER-.327X.875X.090FL-M 4
22 ASM-BUMPERFRONTBLK [Incl. Warning Decal](If built before 11/22/04) 1
22 ASM-BUMPERFRONTBLK [Incl. Warning Decal](If built after 11/22/04) 1
23 KIT-ASM-LOWER BOXFRONT 1
24 PLUG-COMPARTMENT 3
25 SEAL-RADIATORCOVER 1
26 COVER-STRUT 2
27 WASHERFLAT 4
28 SCREW(10) (10 per pack) 4
29 SEAL 1
30 SEAL-LID/BUMPER 1
31 COVER ASMFRONTSERVICE [Incl. 5 and Warning Decal] 1
32 NUT-NYLOK(10) (10 per pack) 8
33 SCR-1/4-20X1.25 TR/TX-M-GR.5 8
34 CHANNEL-LIDFRONTFLTBLKWRKL 2
35 PIN-HINGEFRONT 2
