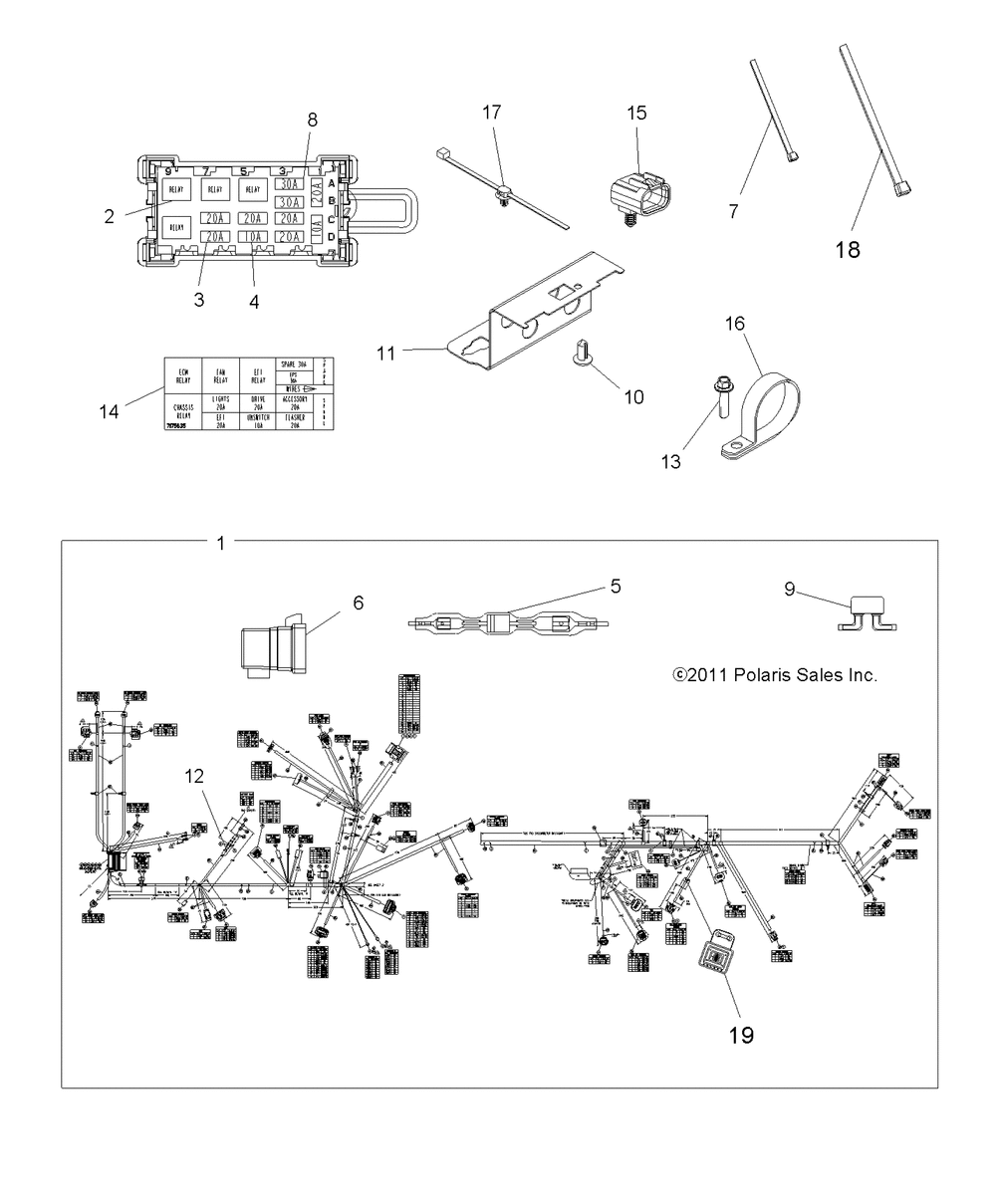

ELECTRICAL HARNESS - A13ZN5EFF (49ATVHARNESS13SP550F)

№	Наименование	Кол-во
1	HARNESS-MAIN550 EPSINTL [INCL. 1-6912141718 ALL KITS COVER]	1
1	KIT-HARNESSHANDLEBAR SWITCH	1
1	KIT-HARNESSHANDLEBAR SWITCH	1
1	KIT-HARNESSHANDLEBAR SWITCH	1
1	KIT-HARNESSTPS	1
1	COVER-RELAY/FUSE CENTER	1
2	RELAY-SPSTSERIES 303SEALED	4
3	FUSE-20 MINI BLADE 58V(YELLOW)	6
4	FUSEIGN.10 AMP(10) (10 per pack)	2
5	DIODE-6AMP1/43/16 TERM	1
6	KIT-RELAYEPSREPAIR [INCL. 4010725 WIRE HARNESS REPAIR CONNECTORS SHRINK TUBES INSTRUCTIONS]	1
6	RELAY-SPDTSEALED	1
7	CABLE TIE (10) (10 per pack)	2
8	FUSEMAIN30 AMP(10) (10 per pack)	2
9	BREAKER-CIRCUIT10 AMPSEALED	1
10	FASTNER-PUSH-ON CLIP.250	1
11	BRKT-FUSE BLOCK	1
12	KIT-FUSIBLE LINK0.8 MM	1
12	KIT-FUSIBLE LINK1.0MM	1
13	SCREW	1
14	LABEL-FUSE BOX	1
15	COVER-DIAGNOSTICW/CLIP	1
16	CLAMP-HOSE	1
17	CLIP-ROUTING(10) (10 per pack)	1
19	KIT-HARNESSRESISTOR MODULE	1
