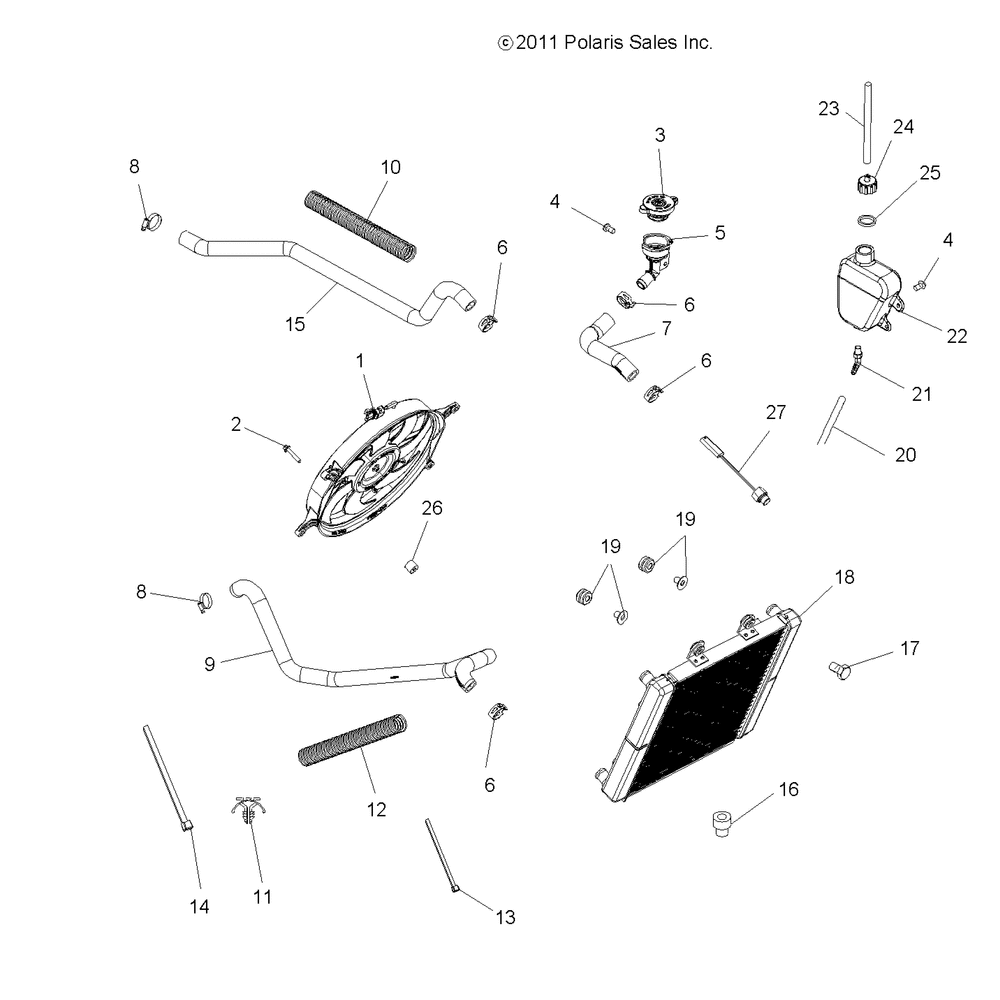

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM-FAN AND MOTORTRIPACSGL | 1 | |
| 2 | SCREW | 4 | |
| 3 | CAP-PRESSURE13 PSI | 1 | |
| 4 | SCREW(10) (10 per pack) | 4 | |
| 5 | FILLER NECK | 1 | |
| 6 | CLAMPSPRINGBAND 27/12GREEN | 4 | |
| 7 | HOSE-FILLER NECK | 1 | |
| 8 | CLAMPHOSE1.25WORM DRIVE | 2 | |
| 9 | HOSE-RADIATORLOWER | 1 | |
| 10 | CONDUIT-FLEX1.00 IDPE51CM | 1 | |
| 11 | MOUNT-CABLE TIE.25 | 1 | |
| 13 | CABLE TIE (10) (10 per pack) | 1 | |
| 14 | CABLE TIE11 INCH | 2 | |
| 15 | HOSE-UPPERRADIATOR | 1 | |
| 16 | BUSHING-MOUNTLOWER RADIATOR | 2 | |
| 17 | SCREW | 2 | |
| 18 | ASM-RADIATOR324X300CARBVGT [INCL. 19 DOES NOT INCL. 4010808] | 1 | |
| 19 | ASM-GROMMET & INSERT | 2 | |
| 20 | LINEFUEL1/4 ID(1525 CM.) [BULK SVC] | 1 | |
| 21 | FITTING90 DEGREE (10) (10 per pack) | 1 | |
| 22 | TANK-SURGE | 1 | |
| 23 | LINEFUEL1/8 ID600 CM. | 0 | |
| 24 | CAP-OVERFLOW BOTTLEW/FITTING | 1 | |
| 25 | GASKET (10) (10 per pack) | 1 | |
| 26 | SPACER-6.6IDX19ODX15 NYL BLK | 4 | |
| 27 | SENSOR-THERMAL HARNESS [AC] | 1 |
