ENGINE COOLING SYSTEM - A10ZX55AL / AT / AX (49ATVCOOL10SPEPS550)

Корзина пуста
Polaris A10ZX55AL/AT/AX SPORTSMAN EPS 550 A10ZX55AL/AT/AX SPORTSMAN EPS 550 ENGINE COOLING SYSTEM - A10ZX55AL / AT / AX (49ATVCOOL10SPEPS550)
ENGINE COOLING SYSTEM - A10ZX55AL / AT / AX (49ATVCOOL10SPEPS550)

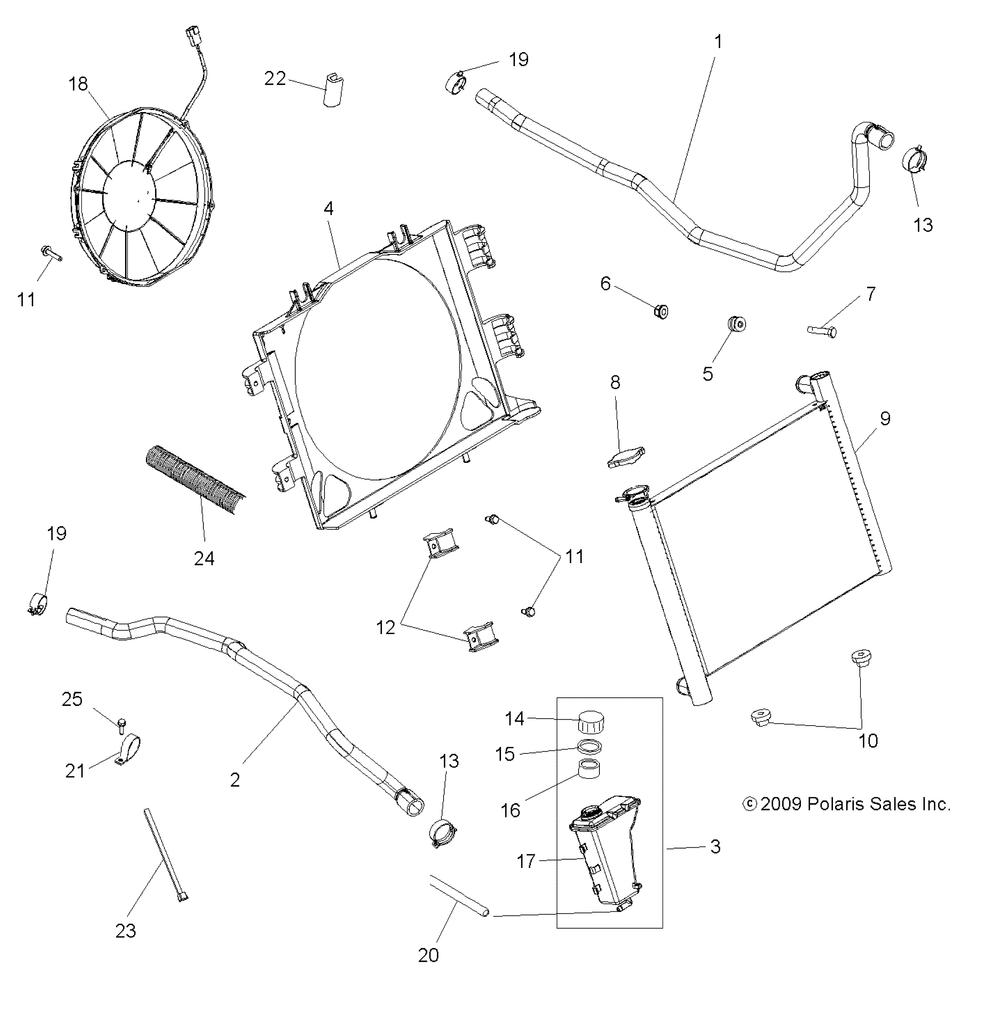

№ Наименование Примечание Кол-во
1 ASM-HOSERADIATORENG OUT19MM [Incl. 19][Built 10/09/09 and Before] 1
1 HOSE-RADIATORENG OUT19MM 1
2 ASM-HOSERADIATORENG IN19MM [Incl. 19][Built 12/05/11 and Before] 1
3 ASM-BOTTLECOOLANT RECOVERY [INCL. 14-1720] 1
4 SPRTSMN XP RAD FAN/SHROUD ASM 1
5 ASM-GROMMET AND INSERT 2
6 NUT-M6 FLANGENYLOK 2
7 SCR-HXFL-M6X1.0X30RIEDGPNT 2
8 CAP-PRESSURE 13 PSI 1
9 RADIATOR-11 FPI25MM FITTINGS 1
10 GROMMET-MOUNTLOWER RADIATOR 2
11 SCREW-M6X15THRD FRM 6
12 CLIP-SHROUDFAN 2
13 CLAMPSPRINGBAND 32/12 (10) (10 per pack) 2
14 CAP OVERFLOW 1
15 GASKET (10) (10 per pack) 1
16 CAPPLUG9X(GRN)FLEX TEMP(10) 1
17 ASM-BOTTLECOOLANT RECOVERY 1
18 SPRTSMN XP RAD FAN/SHROUD ASM 1
19 CLAMPSPRINGBAND 29/12BLK 2
20 LINE-COOLANT27CM 1
21 CLAMPHOSE 1.375VNL ECOATED 1
22 TRIMEDGE6FTBLACK [BULK SVC] 0
23 CABLE TIE11 INCH 3
24 TUBINGCONVOLUTED(1"X6") 1
25 BOLT-M6X1.0X15HXFLGTAP/R-OD 1
