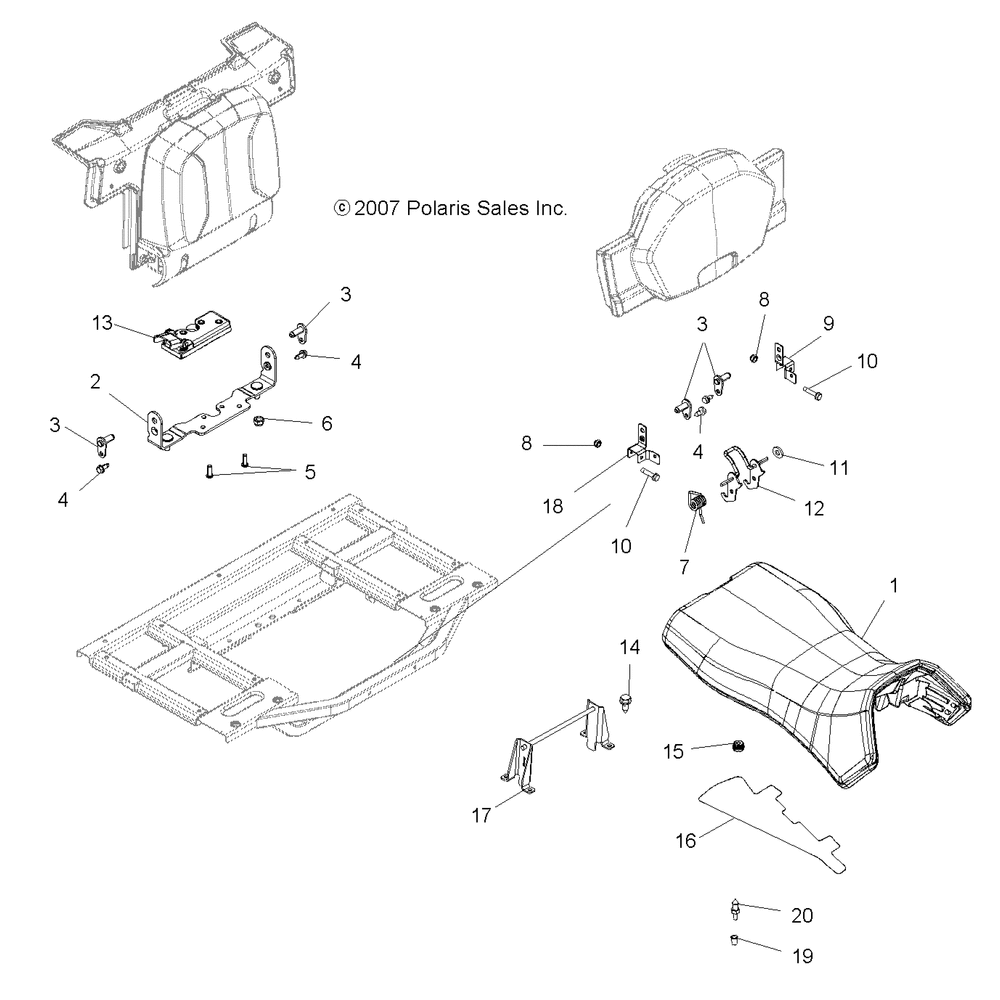

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM-COVERX2WHITE DECAL | 1 | |
| 1 | ASM-SEATOPERATORX2BLK [Incl. 23] | 1 | |
| 2 | WELD-PIVOTPASS SEATBLK | 1 | |
| 3 | WELD-PINPIVOT | 4 | |
| 4 | SCREW(10) (10 per pack) | 4 | |
| 5 | SCREW | 2 | |
| 6 | NUTFLANGE | 2 | |
| 7 | SPRING LATCH | 1 | |
| 8 | NUT-NYLOK(10) (10 per pack) | 2 | |
| 9 | BRACKET-PIVOTSEATLH | 1 | |
| 10 | BOLT | 2 | |
| 11 | SPACER | 1 | |
| 12 | WELD-RODPASS SEATBLK | 1 | |
| 13 | LATCH-SEATPASSBACK | 1 | |
| 14 | SCR-1/4-20X3/4 TR/TX | 4 | |
| 15 | GROMMET-SEAT LATCH | 2 | |
| 16 | FOIL-SEAT BASEOPERATOR | 1 | |
| 17 | WELD-LOCKOUTPASSENGERBLK | 1 | |
| 18 | BRACKET-PIVOTSEATRH | 1 | |
| 19 | INSERT | 1 | |
| 20 | PIN-SEAT LATCH | 1 |
