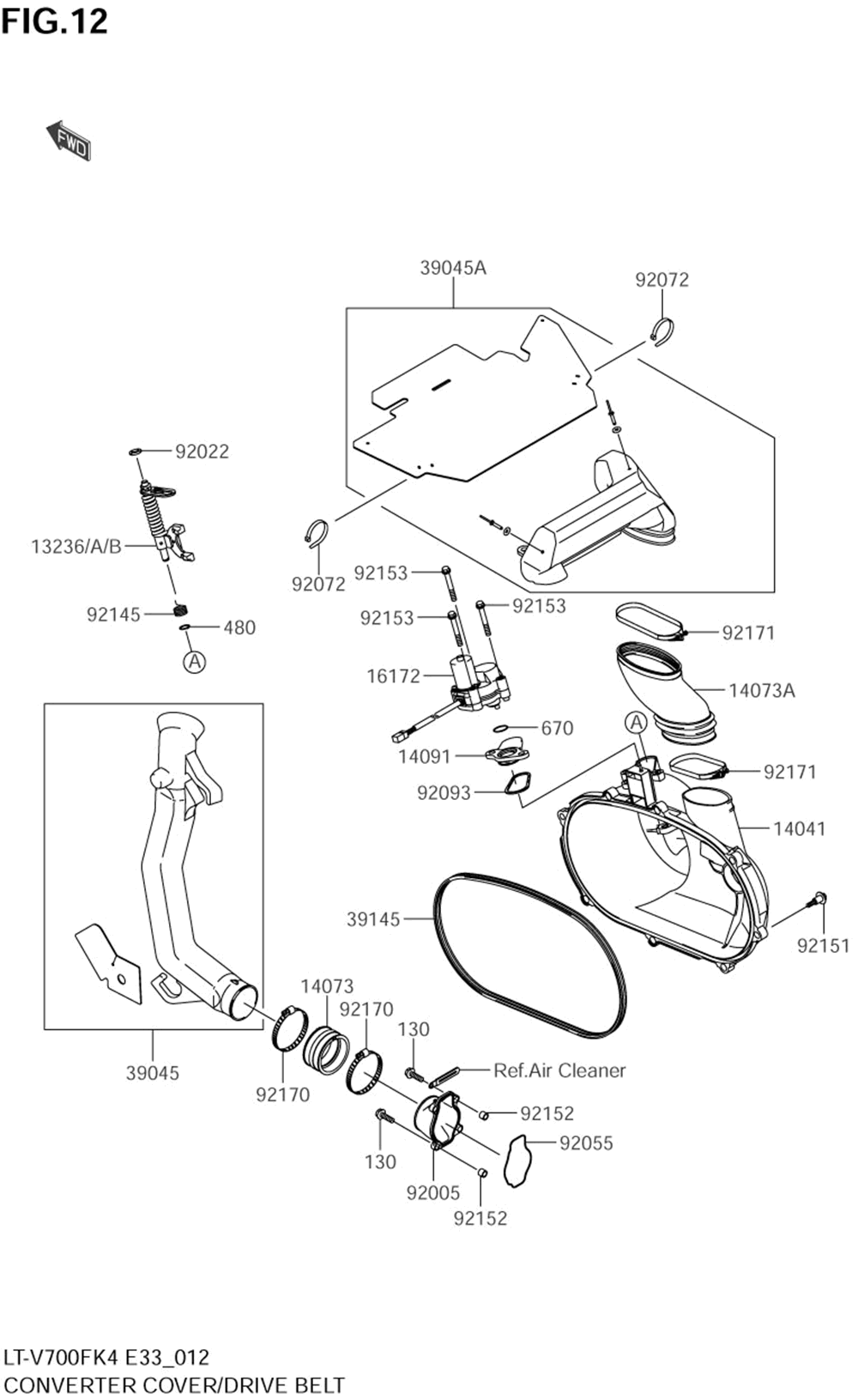

№ | Наименование | Примечание | Кол-во |
---|---|---|---|
130 | Деталь | 4 | |
480 | Деталь | 1 | |
670 | O RING | 1 | |
13236 | Деталь | 0 | |
13236A | Деталь | 0 | |
13236B | LEVER COMP(PAIN | 1 | |
14041 | COVER COMP | 1 | |
14073 | DUCTAIR FILTR | 1 | |
14073A | DUCT EXHAUST | 1 | |
14091 | COVER ENGINE B | 1 | |
16172 | ACTUATOR | 1 | |
39045 | DUCT ASSY SNOR | 1 | |
39045A | DUCT ASSY SNOR | 1 | |
39145 | TRIM-SEAL | 1 | |
92005 | Деталь | 1 | |
92022 | WASHER10.2X16X | 1 | |
92055 | RING-O | 1 | |
92072 | Деталь | 2 | |
92093 | SEAL | 1 | |
92145 | SPRING | 1 | |
92151 | BOLT | 8 | |
92152 | Деталь | 4 | |
92153 | Деталь | 3 | |
92170 | Деталь | 2 | |
92171 | CLAMP | 2 |
