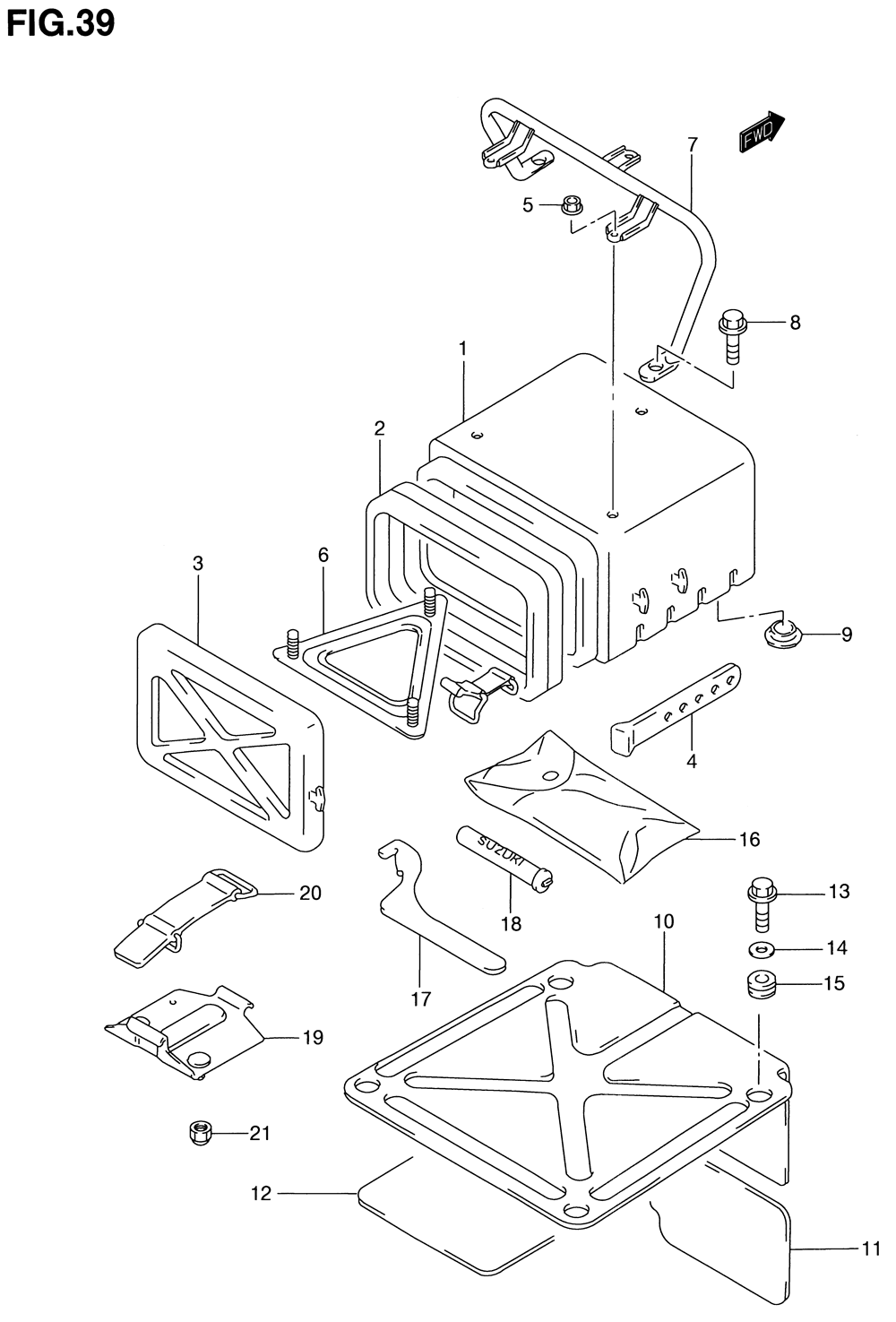

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Деталь | 1 | |
| 2 | MOLDING REAR BO | 1 | |
| 3 | LIDBOX REAR | 1 | |
| 4-1 | BANDREAR BOX | 2 | |
| 4-2 | BANDREAR BOX | 2 | |
| 5 | NUT | 3 | |
| 6 | Деталь | 1 | |
| 7 | Деталь | 1 | |
| 8 | BOLT | 2 | |
| 9 | CAP (OD:18) | 1 | |
| 10 | PLATEHEAT SHIE | 1 | |
| 11 | SHIELDMUFFLER | 1 | |
| 12 | SHIELDMUFFLER | 1 | |
| 13 | BOLT | 4 | |
| 14 | WASHER | 4 | |
| 15 | CUSHION | 4 | |
| 16 | TOOL ASSY | 1 | |
| 17-1 | CLAMP WRENCH | 1 | |
| 17-2 | CLAMPWRENCH | 1 | |
| 18-1 | GAUGE ASSYAIR | 1 | |
| 19 | HOLDERTOOL | 1 | |
| 20 | BANDTOOL | 1 | |
| 21 | NUT | 2 |
