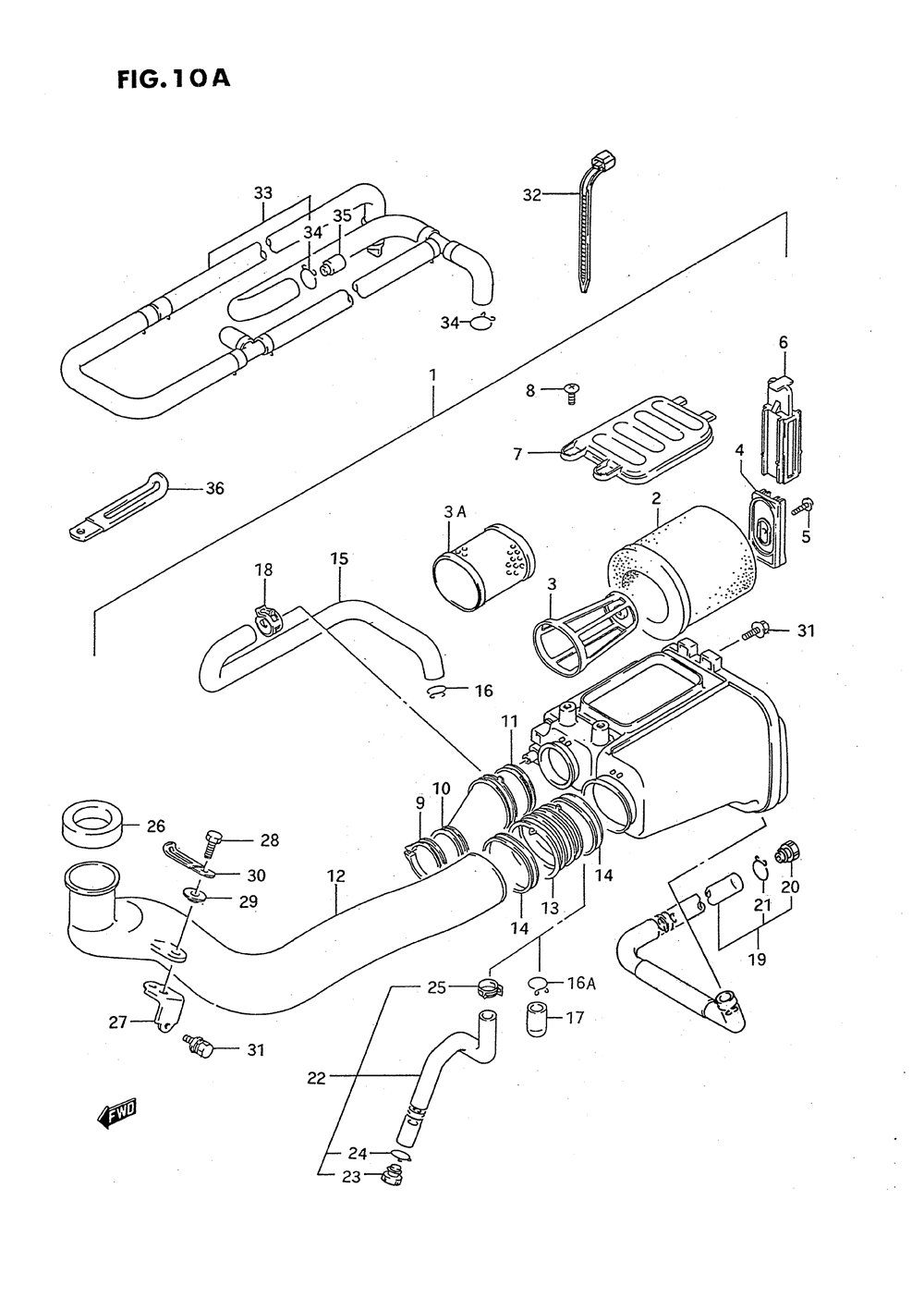

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1-1 | CLEANER ASSYAI | 1 | |
| 1-2 | CLEANER ASSYAI | 1 | |
| 1-3 | CLEANER ASSYAI | 1 | |
| 1A | Деталь | 1 | |
| 2 | FILTERAIR CLEA | 1 | |
| 3 | HOLDER | 1 | |
| 4 | GUIDESLIDER | 1 | |
| 5 | SCREW | 1 | |
| 6 | SLIDERFILTER H | 1 | |
| 7 | CAP | 1 | |
| 8 | SCREW | 2 | |
| 9 | CLAMPINTAKE PI | 1 | |
| 10 | TUBE OUTLET | 1 | |
| 11 | CLAMP | 1 | |
| 12 | TUBEINLET | 1 | |
| 13 | JOINT | 1 | |
| 14 | CLAMP | 2 | |
| 15 | TUBEBREATHER | 1 | |
| 16 | BREATHER HOSE C | 1 | |
| 17 | PLUG | 1 | |
| 18 | CLIP | 1 | |
| 19 | TUBE ASSYDRAIN | 1 | |
| 20 | .PLUG DRAIN TUBE | 1 | |
| 22 | TUBE ASSYDRAIN | 1 | |
| 25 | CLAMP (MODEL V/W~F.NO.V2100898) | 1 | |
| 26 | CAPINLET | 1 | |
| 27 | BRACKET | 1 | |
| 28 | BOLT | 1 | |
| 29 | COLLAR | 1 | |
| 30 | CLAMP | 1 | |
| 31 | BOLT | 4 | |
| 32 | CLAMP | 2 | |
| 33 | TUBE ASSYBREAT | 1 | |
| 35 | CHECK VALVE | 1 | |
| 36 | CLAMP | 2 |
