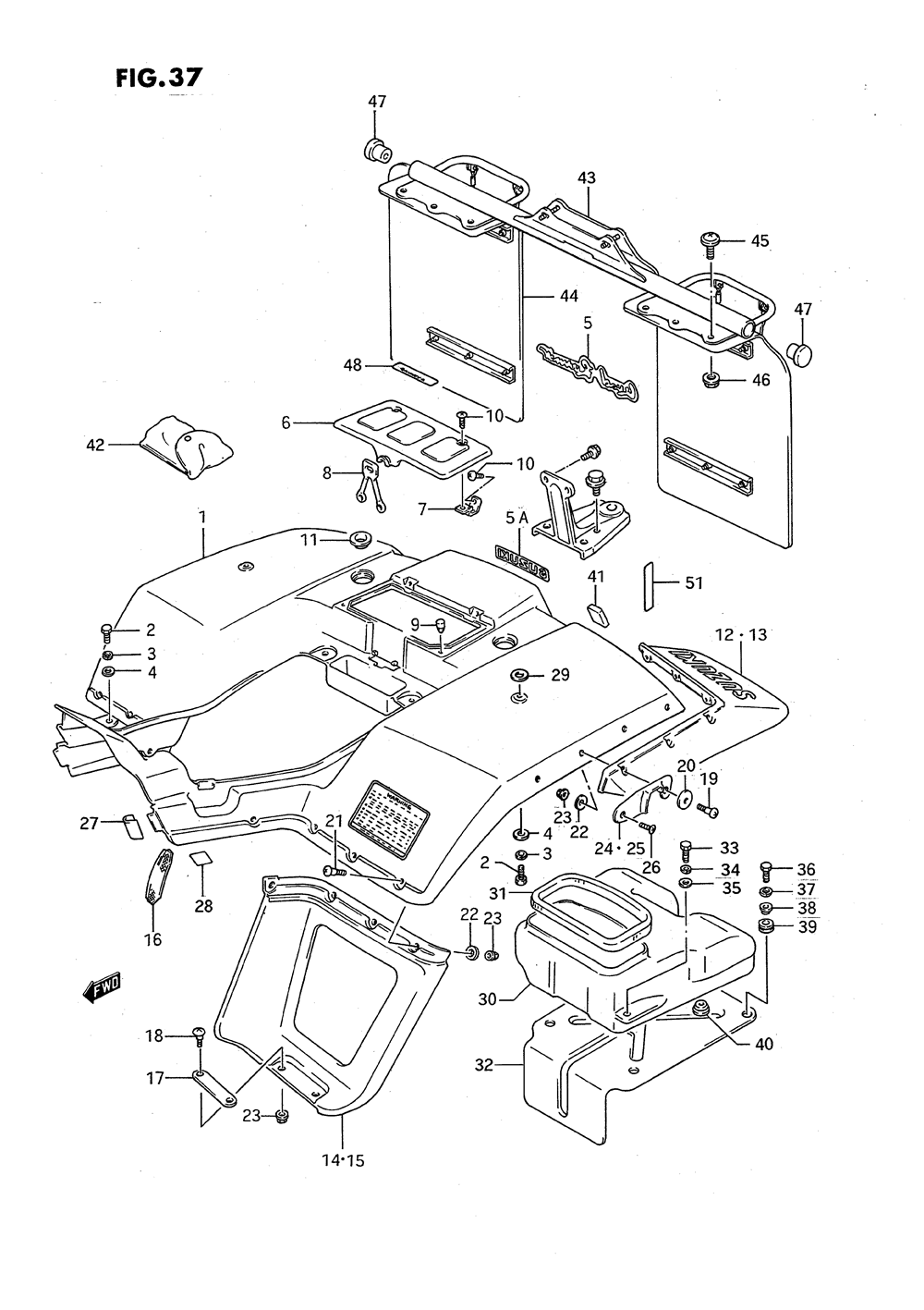

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FENDER REAR | 1 | |
| 2 | BOLT | 8 | |
| 3 | WASHERLOCK | 8 | |
| 4 | WASHER6.5X24X1 | 8 | |
| 5-1 | Деталь | 1 | |
| 5-2 | Деталь | 1 | |
| 5A | Деталь | 1 | |
| 6 | LIDRR FENDER | 1 | |
| 7 | HINGE COMP RR F | 2 | |
| 8 | BAND RR FENDER | 1 | |
| 9 | O TANK STOP CUS | 2 | |
| 10 | SCREW | 4 | |
| 11 | GROMMET | 2 | |
| 12 | Деталь | 1 | |
| 13 | GUARD MUD LH | 1 | |
| 14 | MUD GUARDRR FE | 1 | |
| 15 | GUARDRR FENDER | 1 | |
| 16 | Деталь | 1 | |
| 17 | PLATEMUD GUARD | 2 | |
| 18 | SCREW | 4 | |
| 19 | SCREW (0010 per pack) | 12 | |
| 20 | WASHER | 12 | |
| 21 | SCREW (0010 per pack) | 8 | |
| 22 | WASHER 5.5X20X (0010 per pack) | 22 | |
| 23 | NUT (0010 per pack) | 26 | |
| 24 | Деталь | 1 | |
| 25 | PLATERR MUD GU | 1 | |
| 26 | SCREW | 2 | |
| 27 | SHEETREAR FEND | 2 | |
| 28 | SHEETREAR FEND | 2 | |
| 29 | WASHER | 4 | |
| 30 | BOXREAR | 1 | |
| 31 | MOLDING REAR BO | 1 | |
| 32 | PLATEHEAT SHIE | 1 | |
| 33 | BOLT | 2 | |
| 34 | WASHER LOCK (0010 per pack) | 2 | |
| 35 | WASHER 6.5X18X1 | 2 | |
| 36 | BOLT | 4 | |
| 38 | WASHER | 4 | |
| 39 | CUSHION | 4 | |
| 40 | CAP (OD:18) | 1 | |
| 41 | CUSHION | 2 | |
| 42 | TOOL ASSY | 1 | |
| 43 | Деталь | 1 | |
| 44 | Деталь | 2 | |
| 45 | SCREW | 12 | |
| 46 | NUT | 12 | |
| 47 | CAP | 4 | |
| 48 | RACK WARNING LA | 1 |
