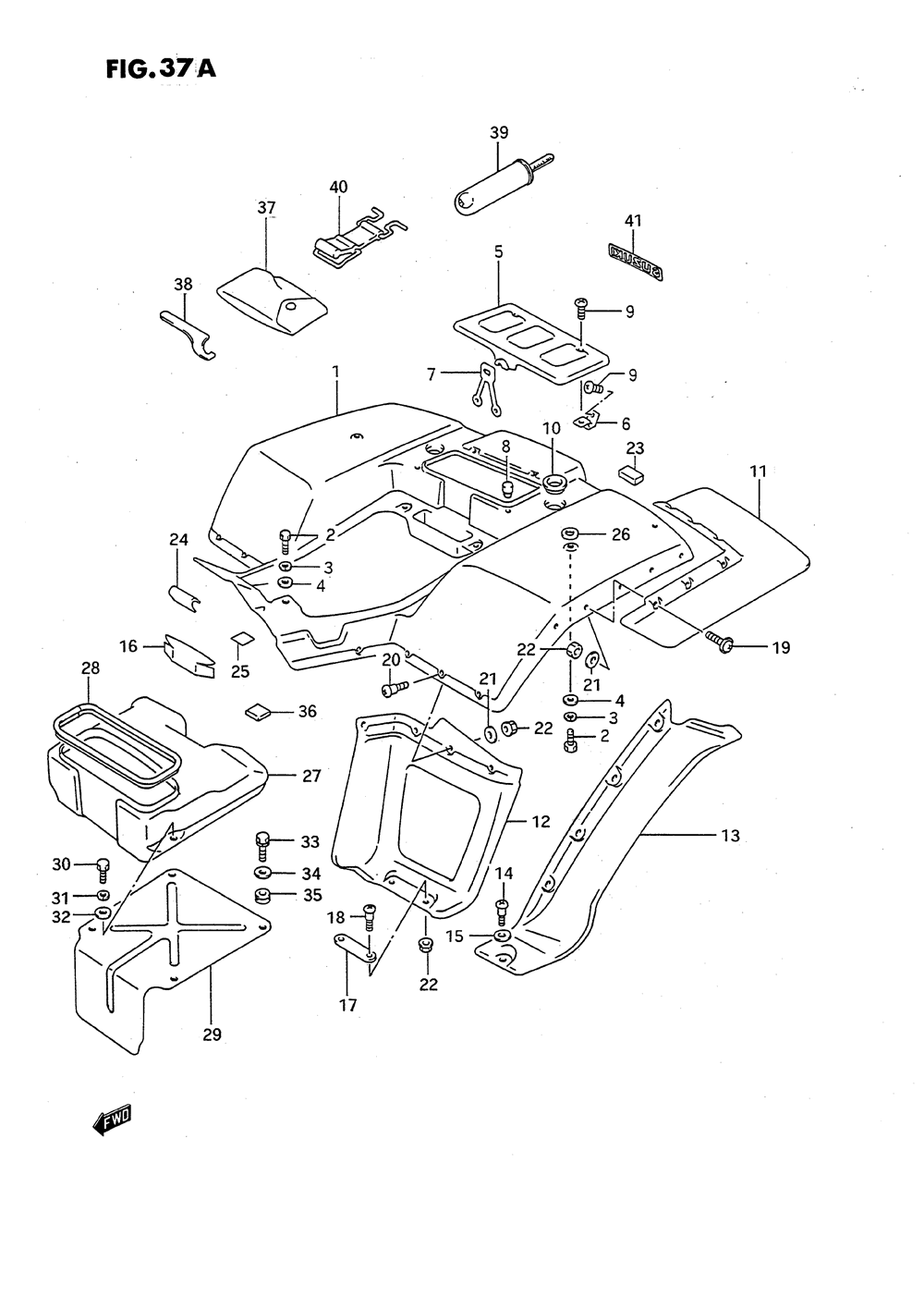

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1-1 | FENDER REAR (MODEL M/N->63111-19X50-25G) | 1 | |
| 1-2 | FENDER REAR | 1 | |
| 1-3 | FENDER RR | 1 | |
| 2-1 | BOLT | 8 | |
| 2-2 | BOLT | 8 | |
| 3 | WASHERLOCK | 8 | |
| 4 | WASHER6.5X24X1 | 8 | |
| 5 | LIDRR FENDER | 1 | |
| 6 | HINGE COMP RR F | 2 | |
| 7 | BAND RR FENDER | 1 | |
| 8 | O TANK STOP CUS | 2 | |
| 9-1 | SCREW | 4 | |
| 9-2 | SCREW (5X8) | 4 | |
| 10 | GROMMET | 2 | |
| 11-1 | MUD GUARDREAR | 1 | |
| 11-2 | MUD GUARDREAR | 1 | |
| 12-1 | MUD GUARDRR FE | 1 | |
| 12-2 | MUD GUARDRR FE | 1 | |
| 13-1 | EXTENSIONRR FE | 1 | |
| 13-2 | EXTENSIONRR FE | 1 | |
| 14 | SCREW | 2 | |
| 15 | WASHER8.5X20X1 | 2 | |
| 16 | Деталь | 1 | |
| 17 | PLATEMUD GUARD | 2 | |
| 19 | SCREW | 24 | |
| 20 | SCREW (0010 per pack) | 8 | |
| 21 | WASHER 5.5X20X (0010 per pack) | 32 | |
| 22 | NUT (0010 per pack) | 38 | |
| 23 | CUSHION | 2 | |
| 24 | SHEETREAR FEND | 2 | |
| 25 | SHEETREAR FEND | 2 | |
| 26-1 | WASHER | 4 | |
| 27 | BOXREAR | 1 | |
| 28 | MOLDING REAR BO | 1 | |
| 29 | PLATEHEAT SHIE | 1 | |
| 30-1 | BOLT | 2 | |
| 30-2 | BOLT | 2 | |
| 31 | WASHER LOCK (0010 per pack) | 2 | |
| 32 | WASHER 6.5X18X1 | 2 | |
| 33-1 | BOLT | 4 | |
| 33-2 | BOLT | 4 | |
| 34 | WASHER | 4 | |
| 35 | CUSHION | 4 | |
| 36 | CAP (OD:18) | 1 | |
| 37-1 | TOOL ASSY | 1 | |
| 38 | CLAMP WRENCH | 1 | |
| 39 | GAUGE ASSYAIR | 2 | |
| 40 | BAND | 1 | |
| 41 | Деталь | 1 |
