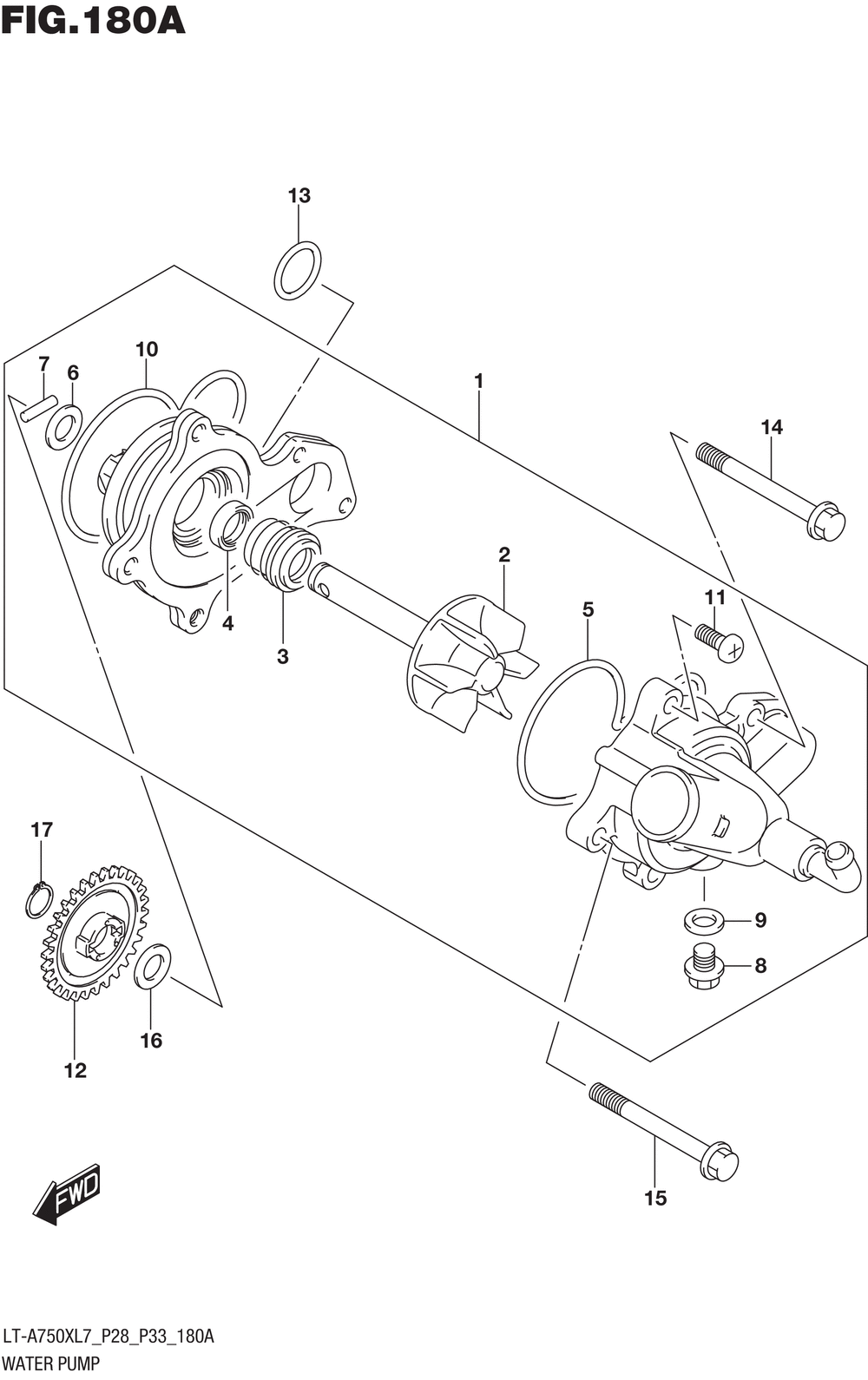

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PUMP ASSY WATER | 1 | |
| 2 | .IMPELLER | 1 | |
| 3 | .SEAL MECHANICAL | 1 | |
| 4 | .OIL SEAL | 1 | |
| 5 | .O RING | 1 | |
| 6 | .WASHER | 1 | |
| 7 | .PIN | 1 | |
| 8 | BOLT | 1 | |
| 9 | GASKET 8.2X14X1 | 1 | |
| 10 | .O RING | 1 | |
| 11 | SCREW | 2 | |
| 12 | GEAR WATER PUMP DRIVEN (NT:23) | 1 | |
| 13 | OIL PLUG O RING | 1 | |
| 14 | BOLT | 2 | |
| 15 | BOLT | 1 | |
| 16 | SHIM (10X18X0.5) | 1 | |
| 17 | CIRCLIP | 1 |
