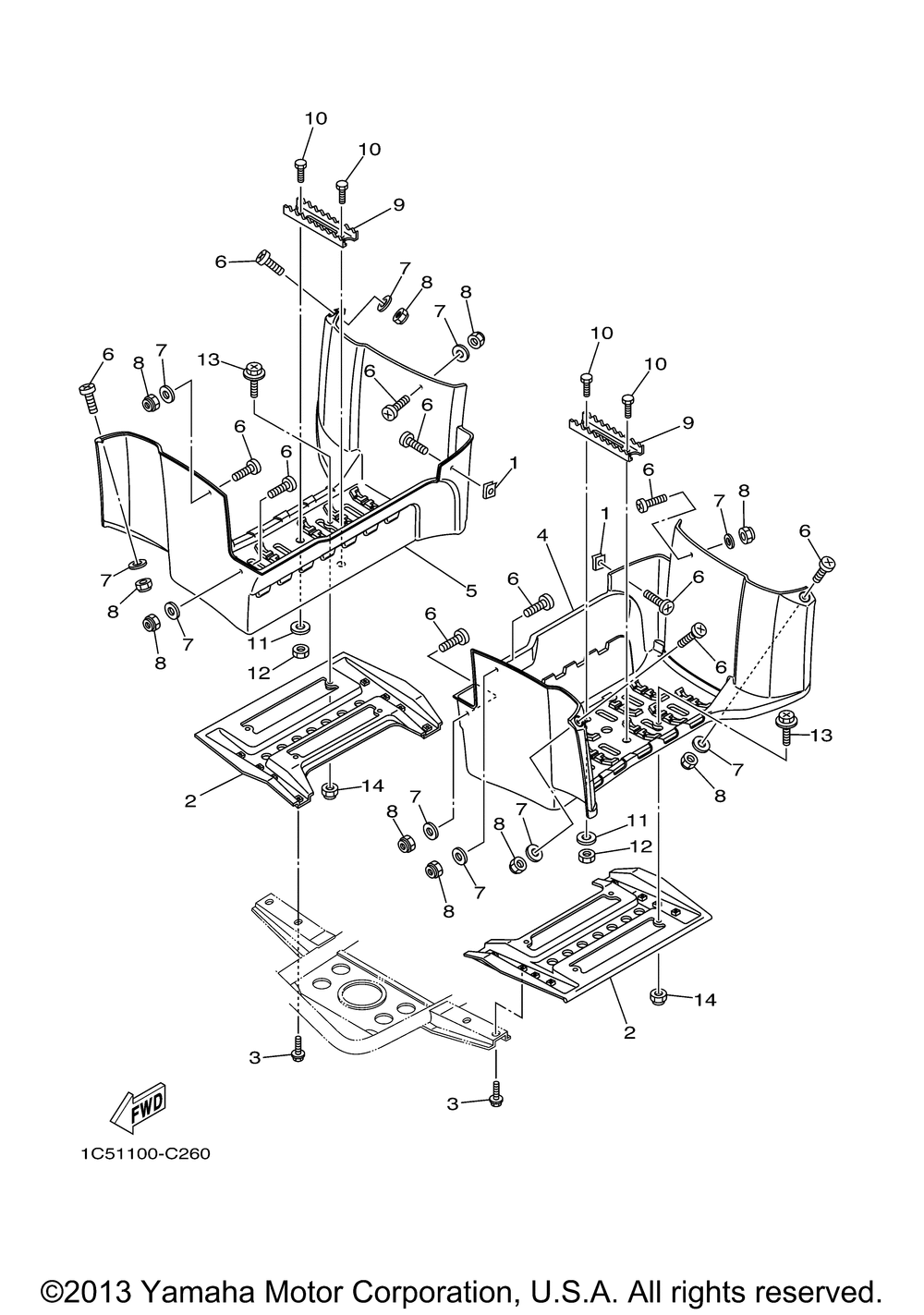

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | NUT SPRING (4ES) | 2 | |
| 2 | FOOTREST 1 | 2 | |
| 3 | BOLTFLANGE | 8 | |
| 4 | COVER 1 | 1 | |
| 5 | COVER 2 | 1 | |
| 6 | SCREWBIND | 12 | |
| 7 | WASHER PLATE | 10 | |
| 8 | NUTFLANGE | 10 | |
| 9 | ARM 1 | 2 | |
| 10 | BOLT | 4 | |
| 11 | WASHER PLATE | 4 | |
| 12 | NUT (6TA) | 4 | |
| 13 | BOLT WITH WASHER | 8 | |
| 14 | NUT FLANGE (4GB) | 8 |
