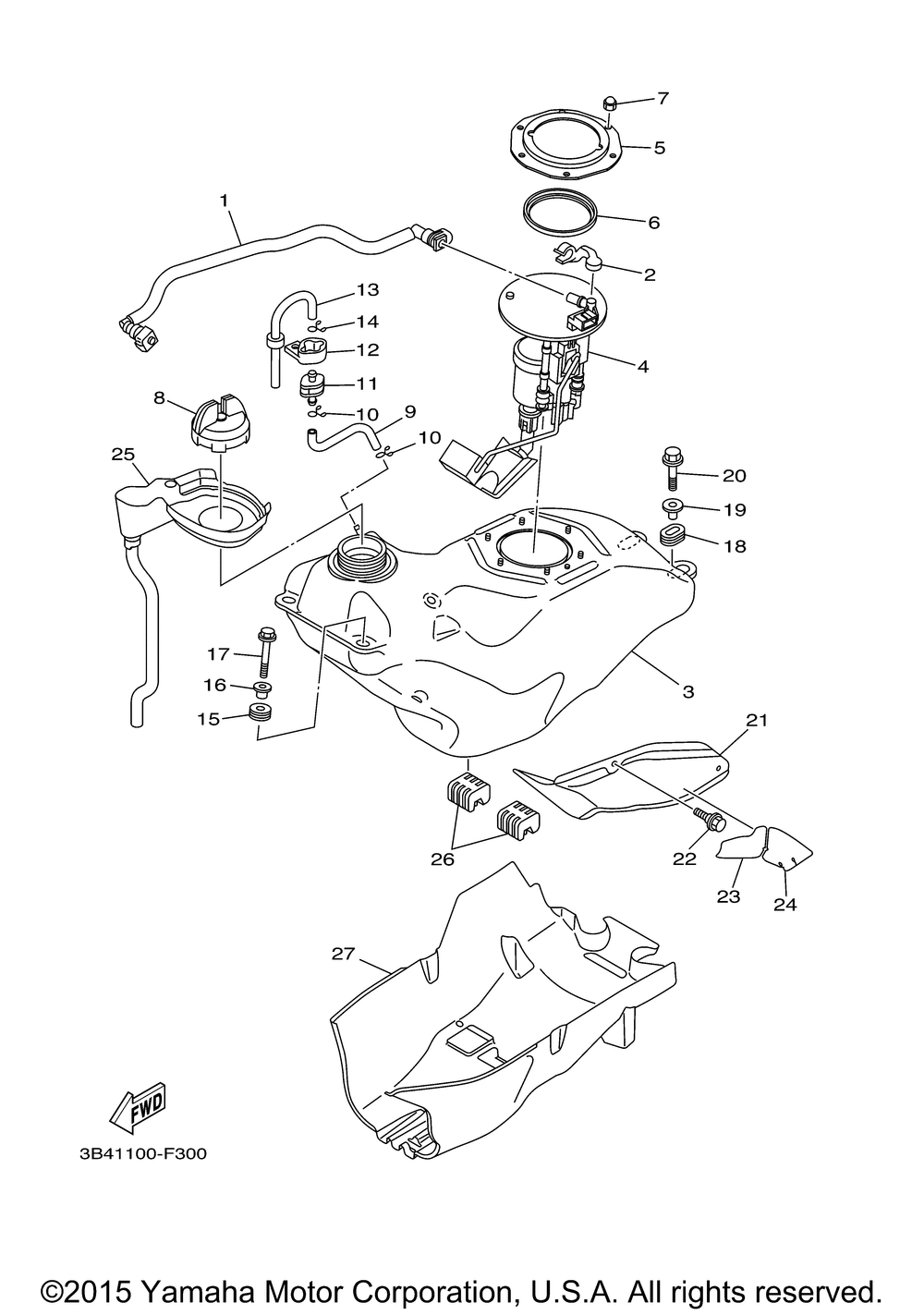

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE FUEL 1 | 1 | |
| 2 | CLAMP | 1 | |
| 3 | FUEL TANK COMP. | 1 | |
| 4 | FUEL PUMP COMP. | 1 | |
| 5 | BRACKET FUEL PUMP | 1 | |
| 6 | O-RING | 1 | |
| 7 | NUT(4MY) | 6 | |
| 8 | CAP ASSY | 1 | |
| 9 | PIPE 2 | 1 | |
| 10 | CLIP | 2 | |
| 11 | PIPE JOINT ASSY | 1 | |
| 12 | BAND 1 | 1 | |
| 13 | PIPE 3 | 1 | |
| 15 | GROMMET | 2 | |
| 16 | COLLAR | 2 | |
| 17 | BOLTFLANGE | 2 | |
| 18 | GROMMET | 2 | |
| 19 | COLLAR | 2 | |
| 21 | COVER SIDE 1 | 1 | |
| 22 | BOLT (5 per pack) | 2 | |
| 23 | DAMPER PLATE 2 | 1 | |
| 24 | DAMPER PLATE 3 | 1 | |
| 25 | COVER FILLER COMP. | 1 | |
| 26 | DAMPER LOCATING 1 | 2 | |
| 27 | PROTECTOR FUEL TANK | 1 |
