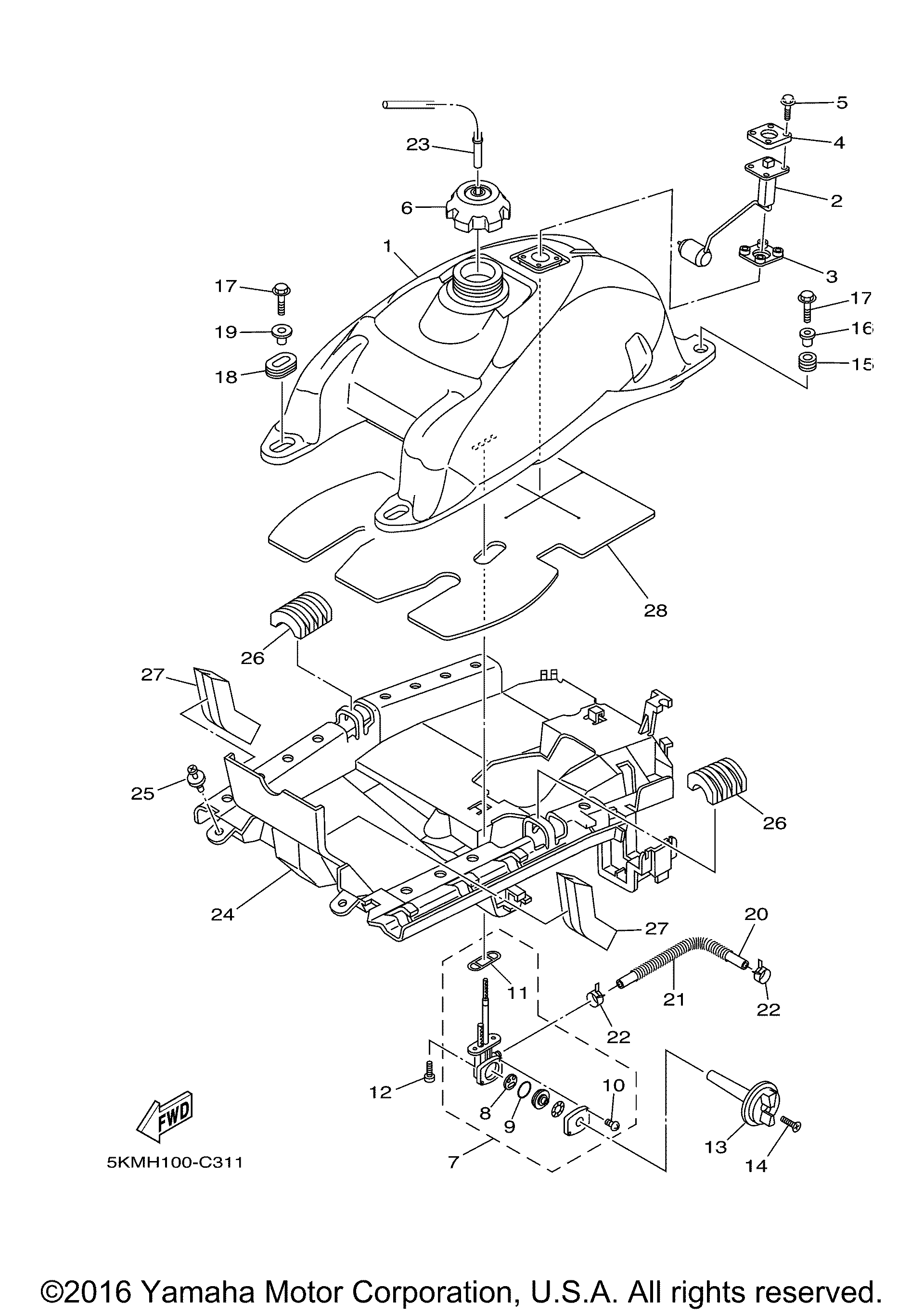

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK COMP. | 1 | |
| 2 | SENDER UNIT ASSY FU | 1 | |
| 3 | GASKET SENDER UNI | 1 | |
| 4 | RETAINER | 1 | |
| 5 | BOLTWITH WASHER | 4 | |
| 6 | CAP ASSY | 1 | |
| 7 | FUEL COCK ASSY 1 | 1 | |
| 8 | VALVE PACKING | 1 | |
| 9 | SEAL COCK | 1 | |
| 10 | SCREW PAN HEAD | 2 | |
| 11 | O-RING | 1 | |
| 12 | SCREWSPEC'L SHAPE | 2 | |
| 13 | LEVERCOCK | 1 | |
| 14 | SCREWFLAT HEAD | 1 | |
| 15 | GROMMET | 2 | |
| 16 | COLLAR | 2 | |
| 17 | BOLTFLANGE | 4 | |
| 18 | GROMMET | 2 | |
| 19 | COLLAR | 2 | |
| 20 | PIPE FUEL 1 | 1 | |
| 21 | PROTECTOR PIPE | 1 | |
| 22 | CLIPSCISSOR | 2 | |
| 23 | HOSE (L430) | 1 | |
| 24 | DAMPER PLATE 1 | 1 | |
| 25 | RIVETSPEC'L SHAPE | 2 | |
| 26 | DAMPER LOCATING 1 | 2 | |
| 27 | DAMPER LOCATING 2 | 2 | |
| 28 | INSULATOR SHIELD TAN | 1 |
