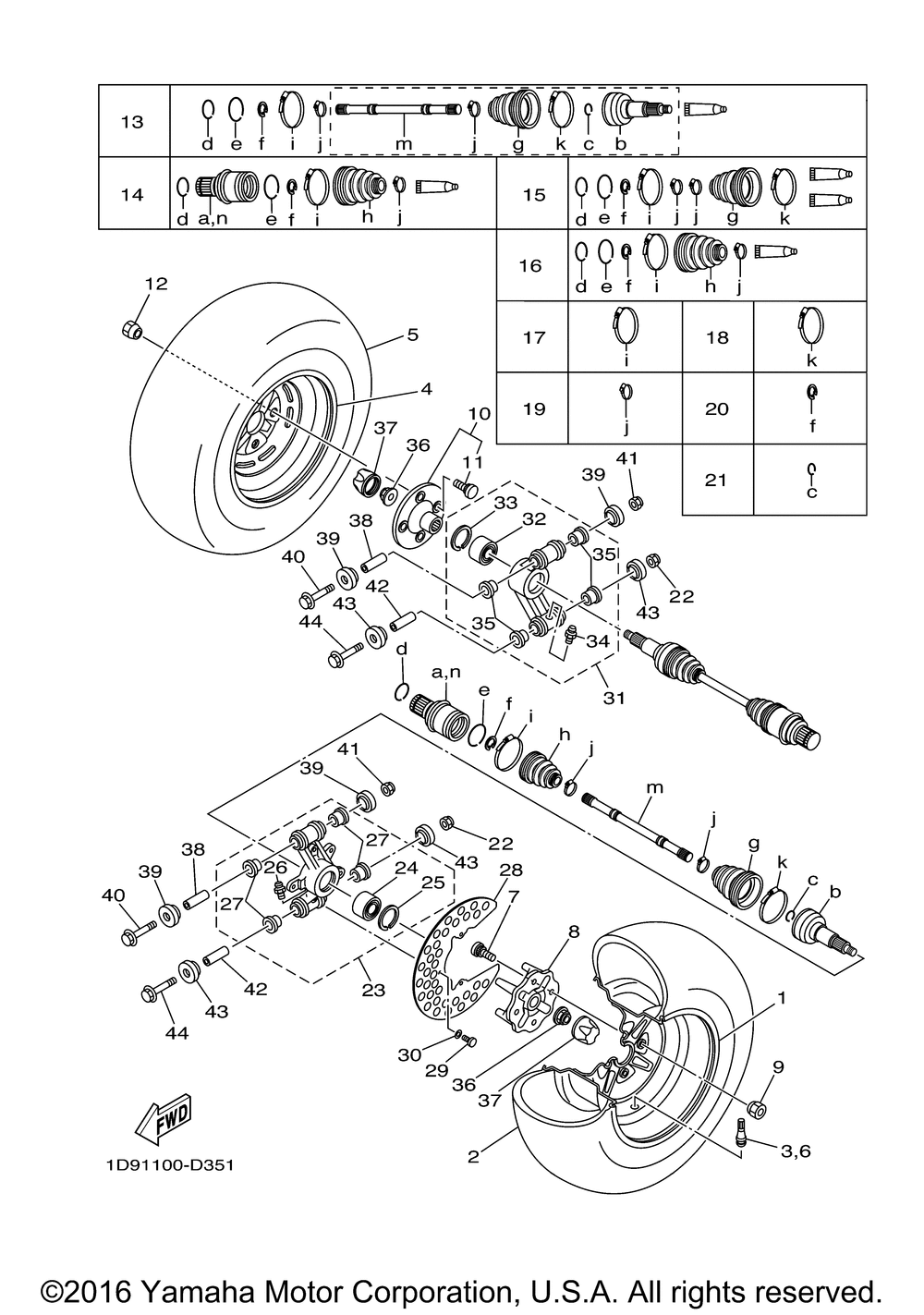

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR RIM (BLACK) 12 | 1 | |
| 2 | AT25X10-12 M912Y (AT25X10-12 M912Y) CHENG SHIN | 1 | |
| 3 | VALVE RIM (TR413) MAXXIS | 1 | |
| 7 | BOLT SERRATION | 4 | |
| 8 | HUB REAR | 1 | |
| 9 | NUTSPEC'L SHAPE (AT | 4 | |
| 10 | HUB SUB-ASSY | 1 | |
| 13 | BALL JOINT SET | 2 | |
| 14 | DOUBLE OFF SET JOINT | 2 | |
| 15 | BOOT SET (BALL JOINT (BALL JOINT) | 2 | |
| 16 | BOOT SET (DOUBLE OFF | 2 | |
| 17 | BOOT BANDDBL OFFSET (DOUBLE OFFSETJOINT) | 2 | |
| 18 | BOOT BAND (BALL JOIN (BALL JOINT) | 2 | |
| 19 | BOOT BAND (SMALL) (SMALL) | 4 | |
| 20 | SNAP RING | 2 | |
| 21 | CIRCLIP | 2 | |
| 22 | NUT SELF-LOCKING | 2 | |
| 23 | REAR KNUCKLE ASSY | 1 | |
| 24 | BEARING | 1 | |
| 25 | . .CIRCLIP | 1 | |
| 26 | NIPPLEGREASE | 2 | |
| 27 | BUSH SOLID | 4 | |
| 28 | PROTECTOR DISK BR | 1 | |
| 29 | SCREW(4JY) | 3 | |
| 30 | WASHER PLATE (YMUS) | 3 | |
| 31 | REAR KNUCKLE ASSY. | 1 | |
| 36 | NUT | 2 | |
| 37 | CAPWHEEL | 2 | |
| 38 | SPACER | 2 | |
| 39 | COVER THRUST 1 | 4 | |
| 40 | BOLT W/BASED | 2 |
