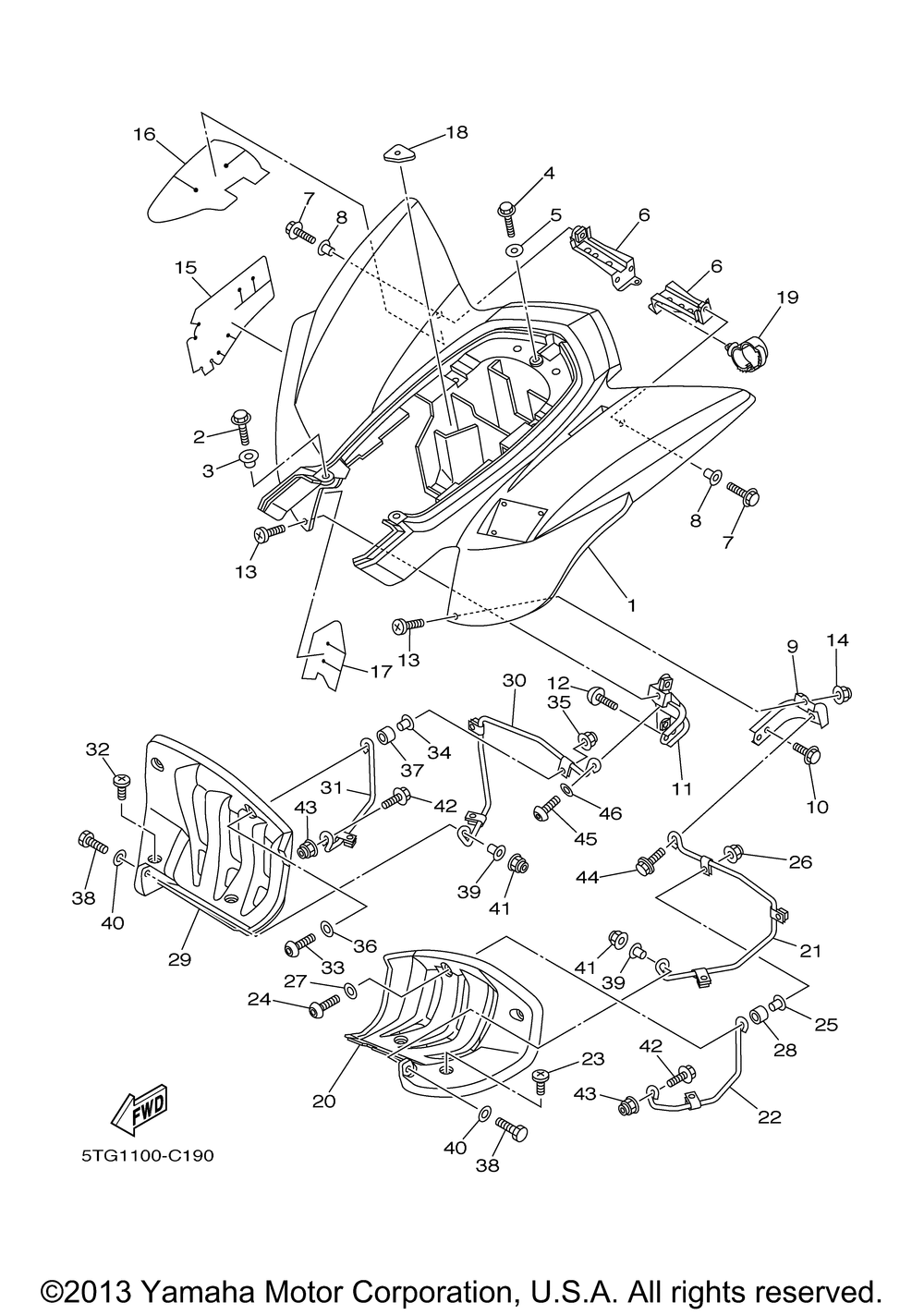

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR FENDER COMP. | 1 | |
| 2 | BOLT FLANGE | 2 | |
| 3 | COLLAR | 2 | |
| 5 | WASHERPLATE | 1 | |
| 6 | STAY FENDER 1 | 2 | |
| 7 | BOLT FLANGE | 2 | |
| 8 | COLLAR | 2 | |
| 9 | STAY REAR | 1 | |
| 10 | BOLT FLANGE | 2 | |
| 11 | STAY REAR | 1 | |
| 12 | BOLTBUTTON | 2 | |
| 13 | SCREW (3JM) (5 per pack) | 2 | |
| 14 | NUT-U | 1 | |
| 15 | COVER REAR FENDER 1 | 1 | |
| 16 | COVER REAR FENDER 2 | 1 | |
| 17 | COVER REAR FENDER 3 | 1 | |
| 18 | DAMPER 2 | 1 | |
| 19 | CLAMP (5 per pack) | 1 | |
| 20 | FLAP | 1 | |
| 21 | STAY 1 | 1 | |
| 22 | STAY 3 | 1 | |
| 23 | SCREWBINDING | 3 | |
| 24 | BOLTBUTTON | 1 | |
| 25 | SPACER | 1 | |
| 27 | WASHERPLATE | 1 | |
| 28 | COLLAR | 1 | |
| 29 | FLAP | 1 | |
| 30 | STAY 2 | 1 | |
| 31 | STAY 4 | 1 | |
| 38 | BOLTHEXAGON | 2 | |
| 39 | COLLAR | 2 | |
| 40 | WASHERPLATE | 2 | |
| 42 | BOLTFLANGE(8AB) | 2 | |
| 43 | NUT SELF LOCKING | 2 | |
| 44 | BOLTFLANGE (JN5) | 1 | |
| 45 | BOLTBUTTON | 1 | |
| 46 | WASHER PLATE | 1 |
