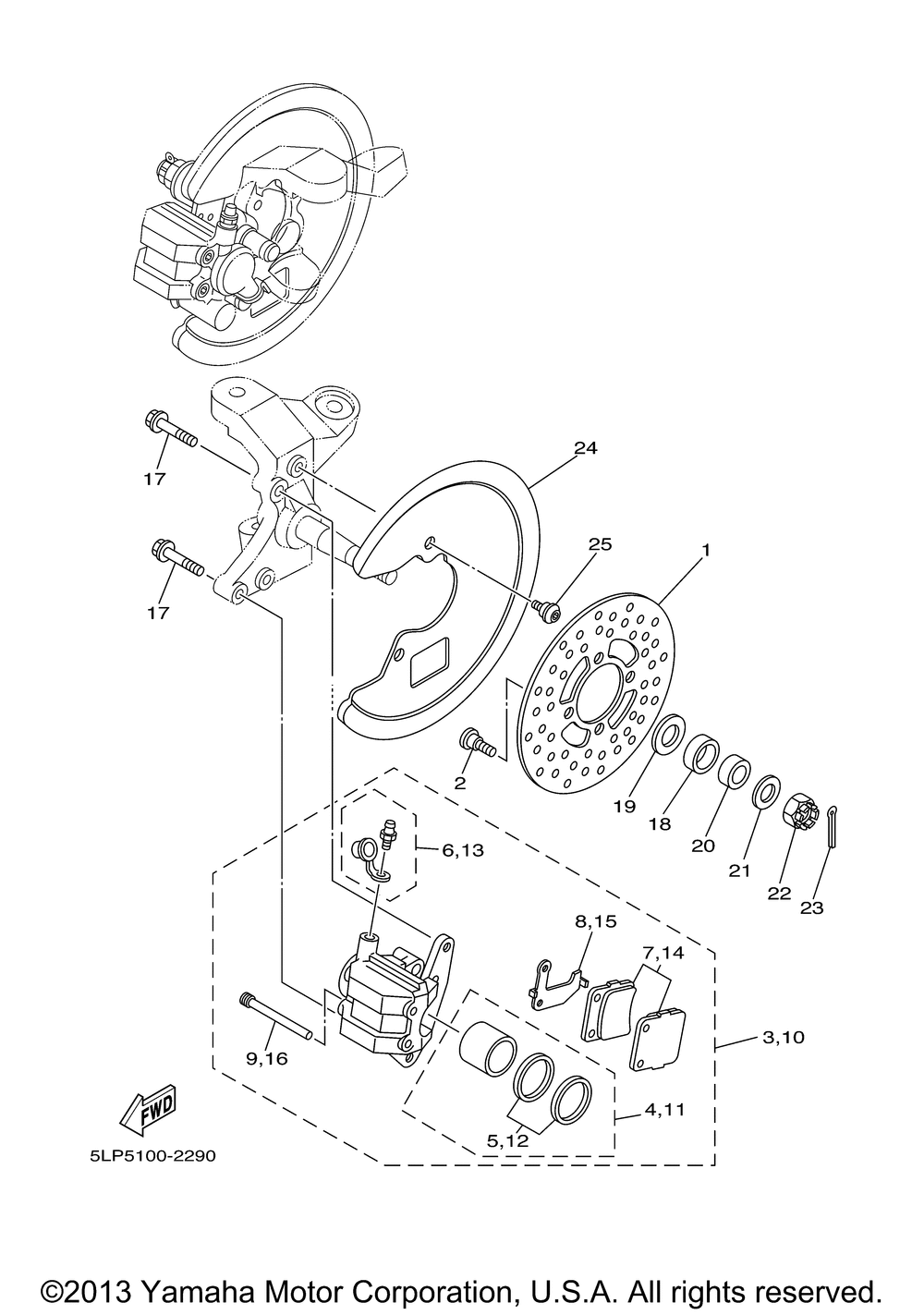

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | DISC BRAKE (LEFT) (LEFT) | 2 | |
| 2 | BOLT | 8 | |
| 3 | CALIPER ASSY (LEFT) (LEFT) | 1 | |
| 4 | PISTON ASSY CALIPER | 1 | |
| 5 | CALIPER SEAL KIT | 1 | |
| 6 | BLEED SCREW KIT | 1 | |
| 7 | BRAKE PAD KIT | 1 | |
| 8 | SHIMCALIPER | 1 | |
| 9 | PIN PAD | 2 | |
| 10 | CALIPER ASSY (RIGHT) (RIGHT) | 1 | |
| 15 | SHIMCALIPER | 1 | |
| 17 | BOLTWASHER BASED | 4 | |
| 18 | COLLAR | 2 | |
| 19 | WASHERPLATE | 2 | |
| 20 | COLLAR | 2 | |
| 21 | WASHERPLATE | 2 | |
| 22 | NUTCASTLE(2UJ) | 2 | |
| 23 | PINCOTTER | 2 | |
| 24 | RING WHEEL 1 (LEFT) | 2 | |
| 25 | BOLT | 4 |
