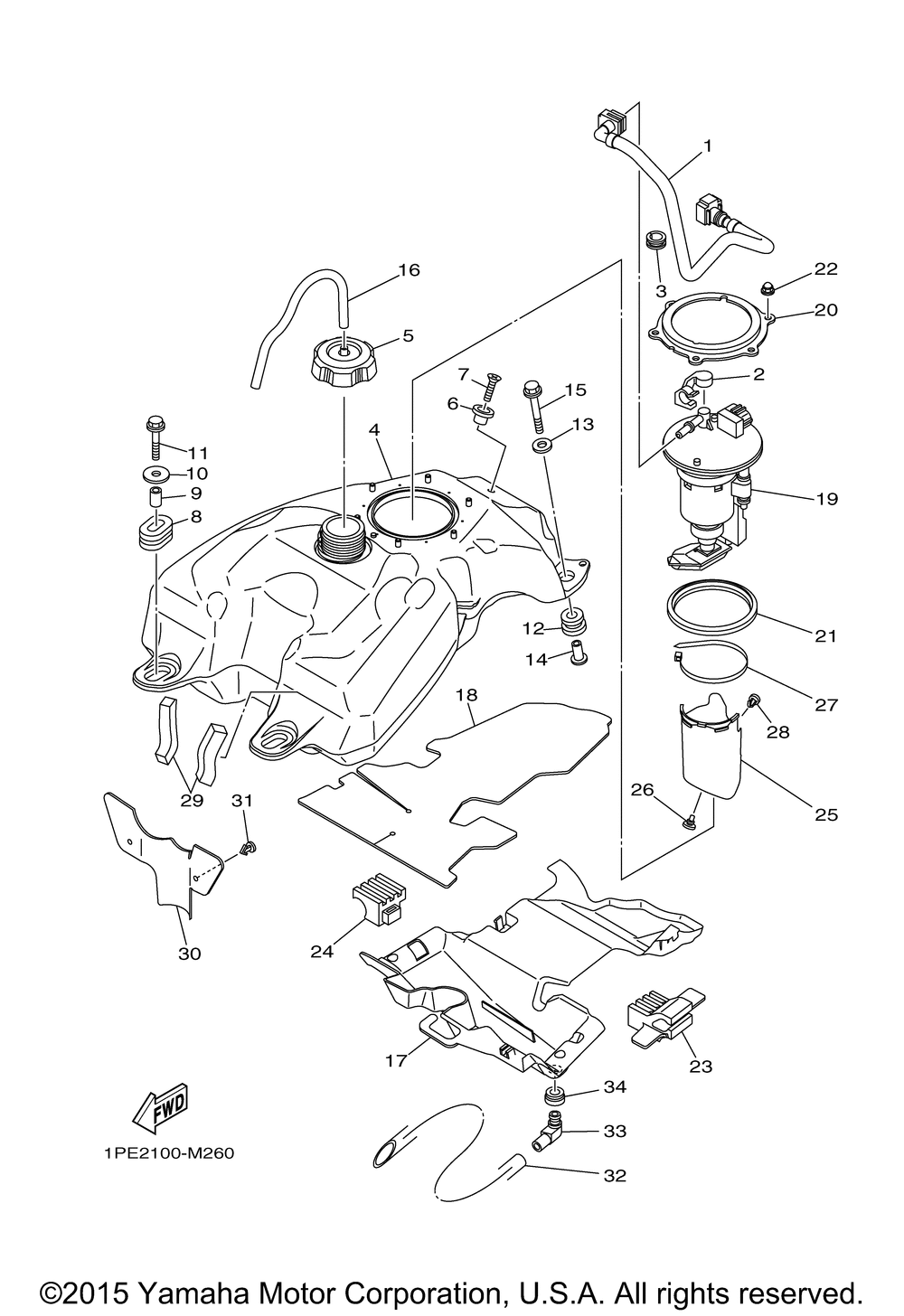

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE FUEL 1 | 1 | |
| 2 | CLAMP | 1 | |
| 3 | GROMMET | 1 | |
| 4 | FUEL TANK COMP. | 1 | |
| 5 | CAP ASSY | 1 | |
| 6 | BRACKETSEAT | 1 | |
| 7 | )SCREW CROSSRECESS | 1 | |
| 8 | GROMMET | 2 | |
| 9 | COLLARLEVER 1 | 2 | |
| 10 | WASHER PLATE | 2 | |
| 11 | BOLTFLANGE | 2 | |
| 12 | GROMMET | 2 | |
| 13 | WASHER PLATE | 2 | |
| 14 | COLLAR | 2 | |
| 16 | HOSE (L340) | 1 | |
| 17 | DAMPER PLATE 1 | 1 | |
| 18 | INSULATOR FUEL TA | 1 | |
| 19 | FUEL PUMP COMP. | 1 | |
| 20 | BRACKET FUEL PUMP | 1 | |
| 21 | O-RING | 1 | |
| 22 | NUT(CROWN) | 6 | |
| 23 | STOPPER 1 | 1 | |
| 24 | STOPPER 2 | 1 | |
| 25 | COVER | 1 | |
| 26 | PLUG | 2 | |
| 27 | CLAMP | 1 | |
| 28 | RIVET | 1 | |
| 29 | DAMPER LOCATING 2 | 2 | |
| 30 | PLATE | 1 | |
| 31 | RIVETSPEC'L SHAPE (5 per pack) | 2 | |
| 32 | HOSE (L400) | 1 | |
| 33 | PIPE | 1 | |
| 34 | GROMMET | 1 |
