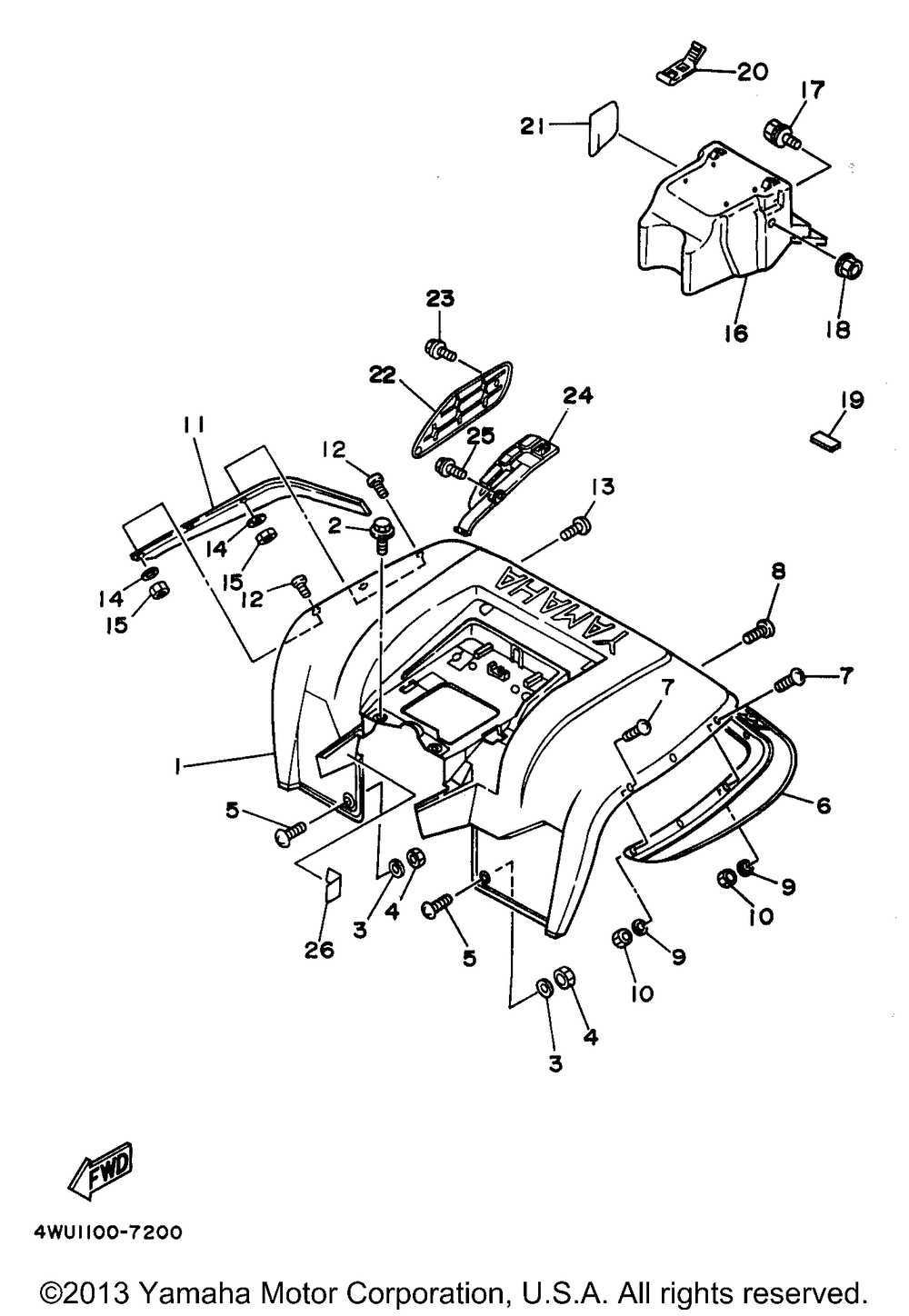

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR FENDER COMP. UR PDG*WITH LABEL(S) (SEE EMBLEM LABEL FOR DETAILS | 1 | |
| 1 | REAR FENDER COMP. UR RTR*WITH LABEL(S) (SEE EMBLEM LABEL FOR DETAILS | 1 | |
| 1 | REAR FENDER COMP. UR DNYS1*WITH LABEL(S) (SEE EMBLEM LABEL FOR DETAI | 1 | |
| 2 | BOLT WITH WASHER | 4 | |
| 3 | WASHERPLATE (5 per pack) | 2 | |
| 4 | NUT FLANGE (4GB) | 2 | |
| 5 | SCREWBINDING | 2 | |
| 6 | FLAP (REAR LEFT) | 1 | |
| 8 | SCREW BINDING | 1 | |
| 11 | FLAP (REAR RIGHT) | 1 | |
| 16 | BOX COMP. | 1 | |
| 17 | BOLT WITH WASHER | 2 | |
| 18 | NUT-U | 2 | |
| 19 | DAMPER 1 (5 per pack) | 1 | |
| 20 | BAND | 2 | |
| 21 | PROTECTOR | 1 | |
| 22 | COVERREAR FNDR.3 | 1 | |
| 23 | BOLTFLANGE | 1 | |
| 24 | COVERREAR FENDER 3 | 1 | |
| 26 | INSULATORSIDE COVER | 1 |
